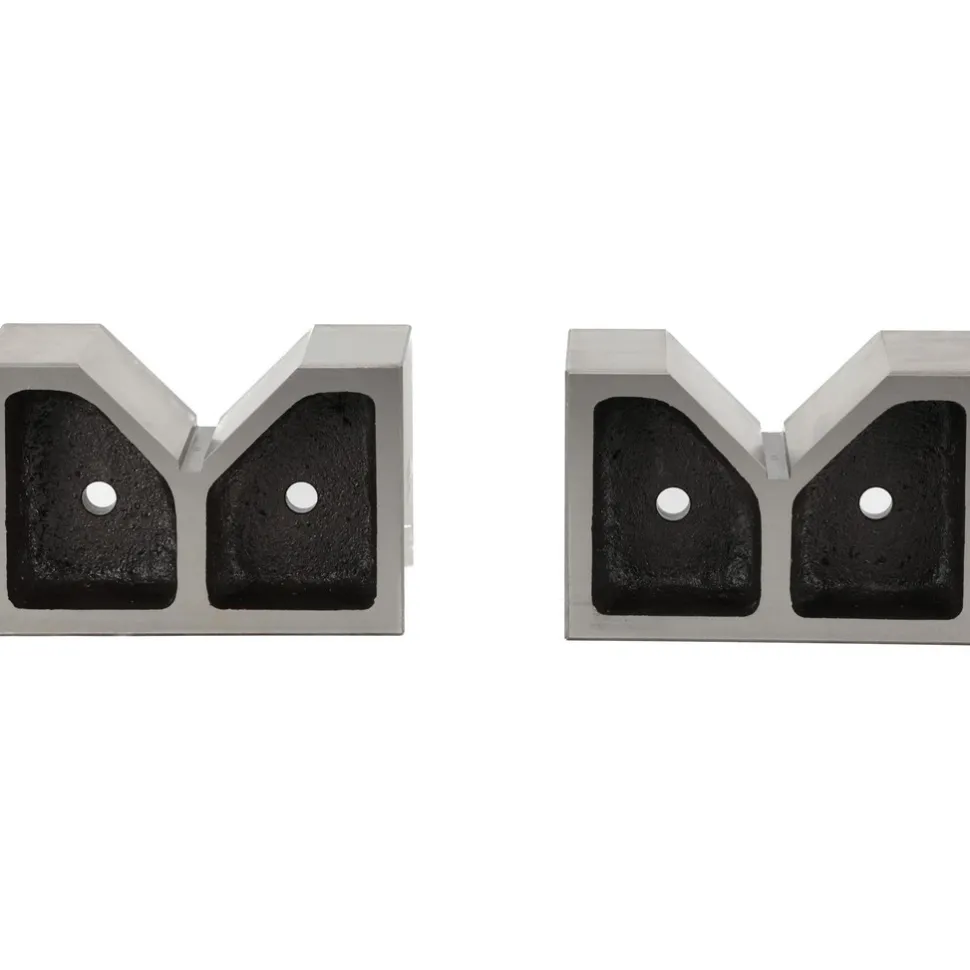

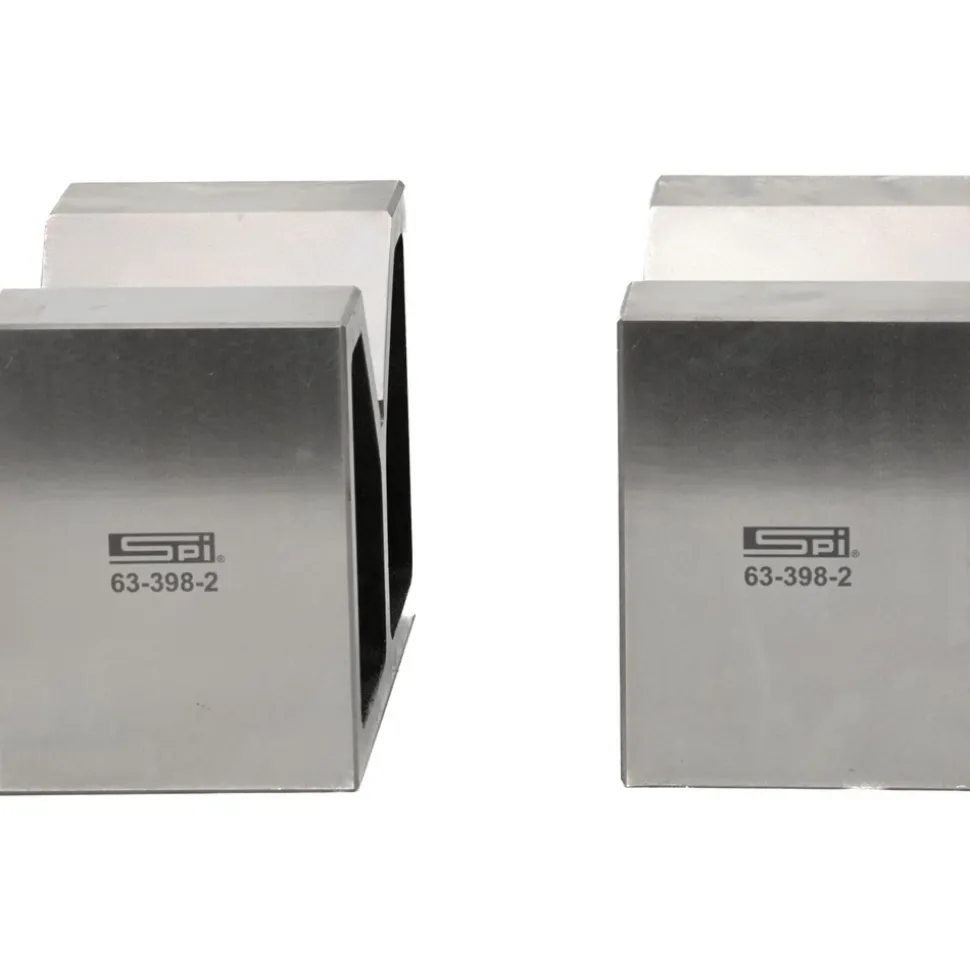

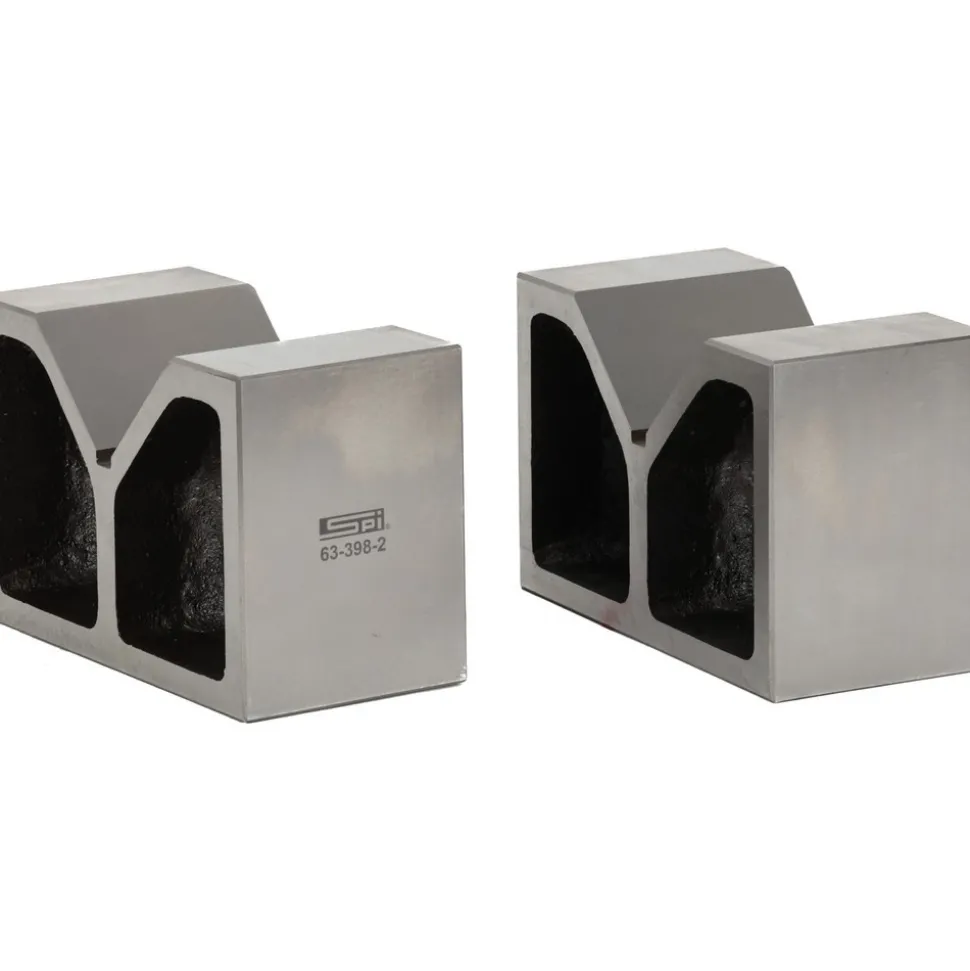

V-Block: 5″ Max Capacity, 90° V Angle

130,89 $

SKU: SKUF1I1GPl8eA Categories: Calibration, Layout & Machine Setup Tools, Measuring & Inspecting, Shop All Products Tag: SPI Brand: SPI

Description
Reviews (0)

Specifications

Overall Length (Inch): 10	Overall Length (mm): 254.00
Overall Length (Decimal Inch): 10.0000	Overall Width (mm): 127.00
Overall Width (Inch): 5	Overall Height (Inch): 6-1/2
Overall Height (mm): 165.10	V Angle: 90
Maximum Capacity of V (Inch): 5	Maximum Capacity of V (mm): 127.00
Material: Cast Iron	V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0002	V Accuracy (Decimal Inch): 0.000200
Magnetic: No	Squareness Per 1 Inch (micro m): 30.00
Large V Width (Inch): 5	Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200	UNSPSC Code: 41111627
Overall Length (Inch): 10
Overall Length (mm): 254.00
Overall Length (Decimal Inch): 10.0000
Overall Width (mm): 127.00
Overall Width (Inch): 5
Overall Height (Inch): 6-1/2
Overall Height (mm): 165.10
V Angle: 90
Maximum Capacity of V (Inch): 5
Maximum Capacity of V (mm): 127.00
Material: Cast Iron
V Parallelism (micro m): 30.00
V Parallelism (Decimal Inch): 0.0002
V Accuracy (Decimal Inch): 0.000200
Magnetic: No
Squareness Per 1 Inch (micro m): 30.00
Large V Width (Inch): 5
Sold As Pair: Matched Pair
Squareness (Decimal Inch): 0.001200
UNSPSC Code: 41111627


MSC#	02662823
Mfr#	AVB064
Big Book#	1845
