Sale!

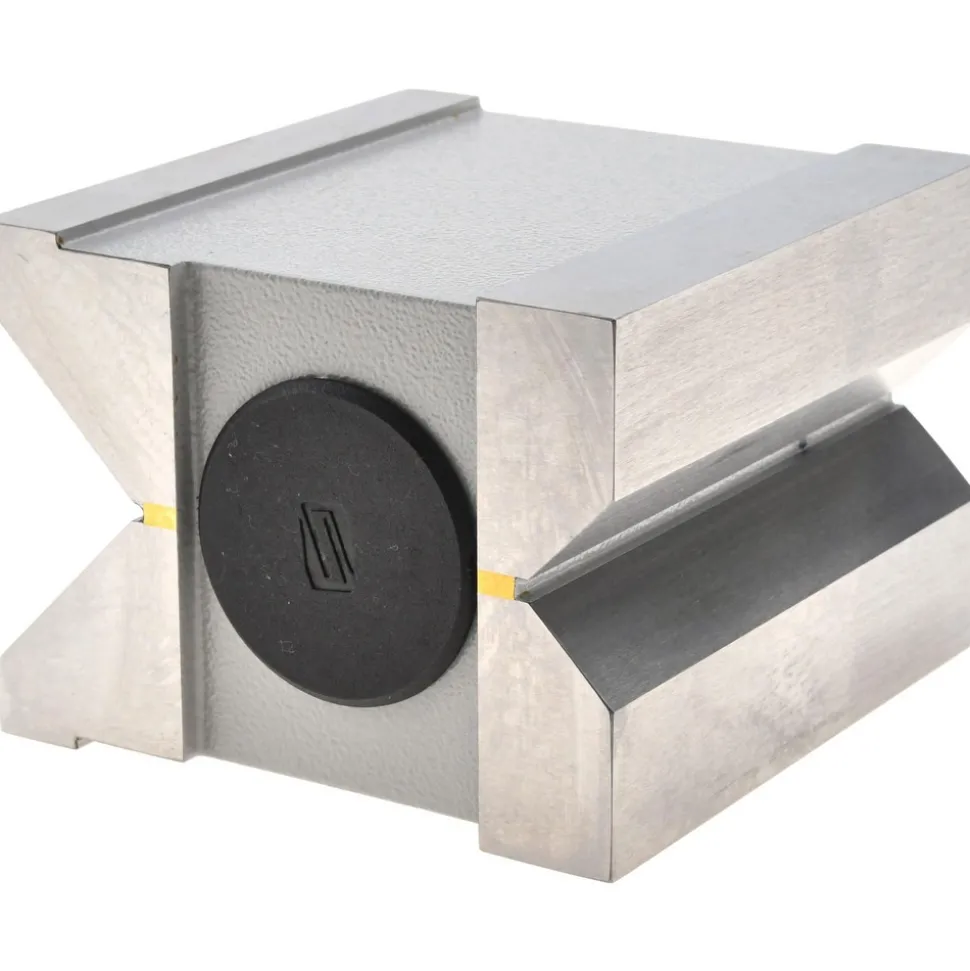

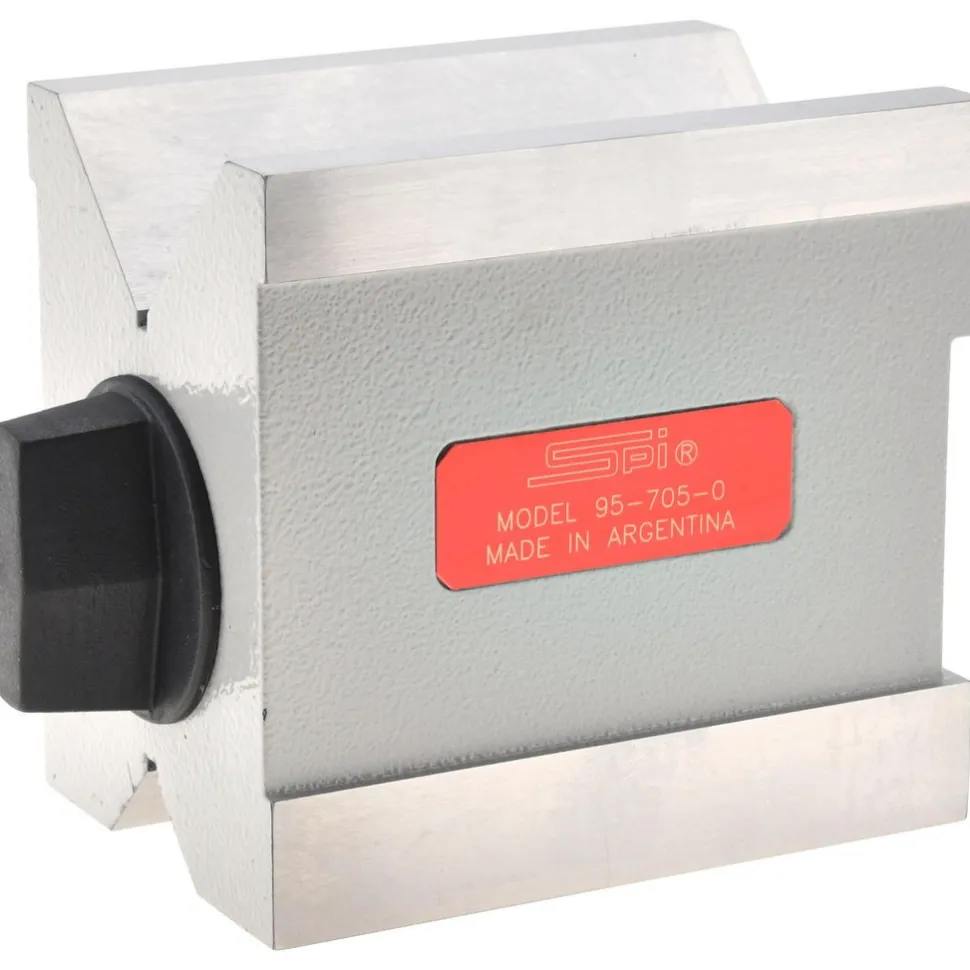

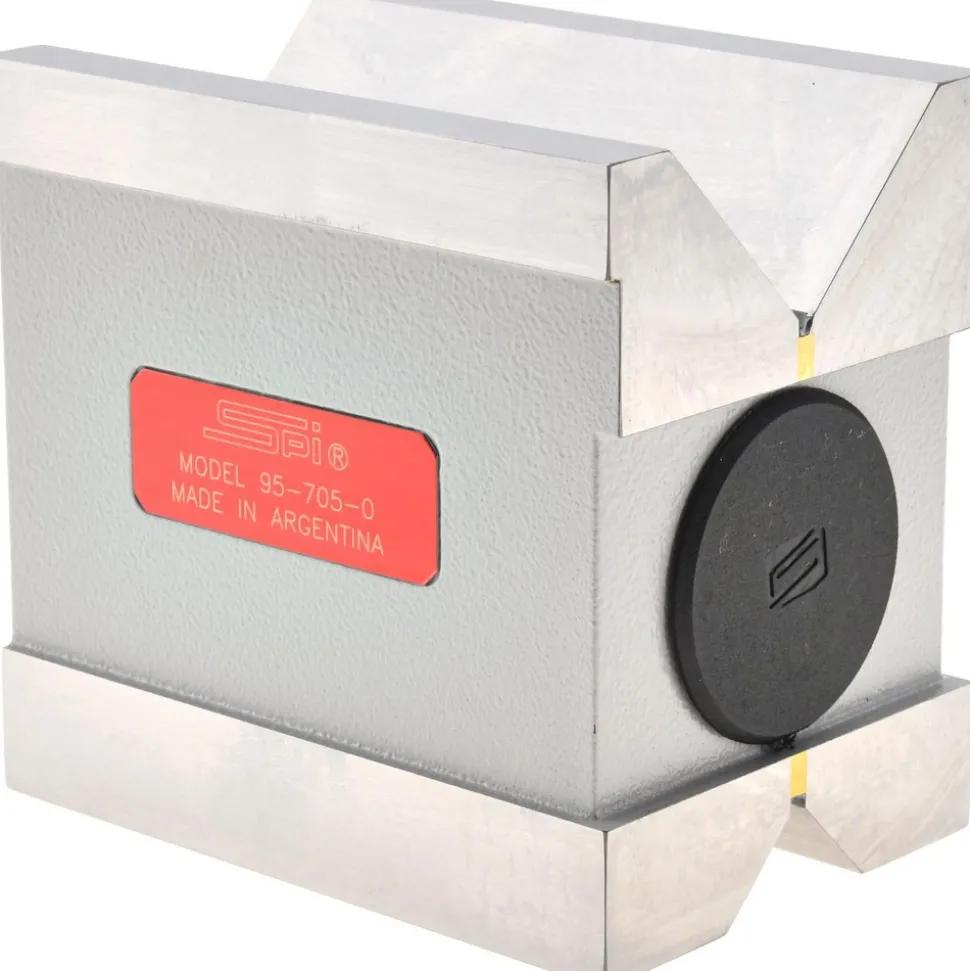

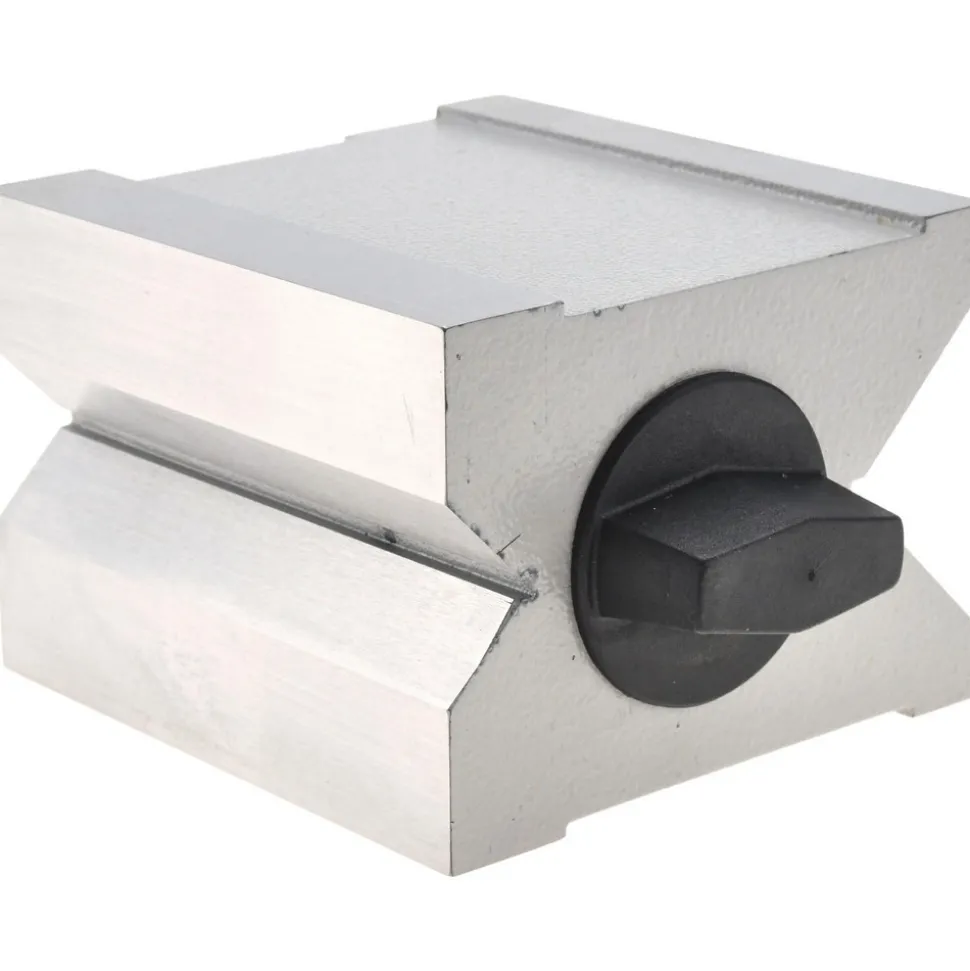

V-Block: 2.7559″ Max Capacity, 90° V Angle

Original price was: 662,00 $.Current price is: 140,99 $.

Specifications

Overall Length (Inch): 3-15/16	Overall Length (mm): 100.01
Overall Width (mm): 69.85	Overall Width (Inch): 2-3/4
Overall Height (Inch): 3-3/4	Overall Height (mm): 95.25
V Angle: 90	Minimum Capacity of V (Decimal Inch): 0.1900
Maximum Capacity of V (Decimal Inch): 2.7559	Maximum Capacity of V (mm): 70.00
Material: Steel	V Parallelism (micro m): 10.00
Magnetic: Yes	Squareness Per 1 Inch (micro m): 10.00
SPI Part Number: 95-705-0	Sold As Pair: Individual
UNSPSC Code: 41111627	Country of Origin: Argentina
Overall Length (Inch): 3-15/16
Overall Length (mm): 100.01
Overall Width (mm): 69.85
Overall Width (Inch): 2-3/4
Overall Height (Inch): 3-3/4
Overall Height (mm): 95.25
V Angle: 90
Minimum Capacity of V (Decimal Inch): 0.1900
Maximum Capacity of V (Decimal Inch): 2.7559
Maximum Capacity of V (mm): 70.00
Material: Steel
V Parallelism (micro m): 10.00
Magnetic: Yes
Squareness Per 1 Inch (micro m): 10.00
SPI Part Number: 95-705-0
Sold As Pair: Individual
UNSPSC Code: 41111627
Country of Origin: Argentina
