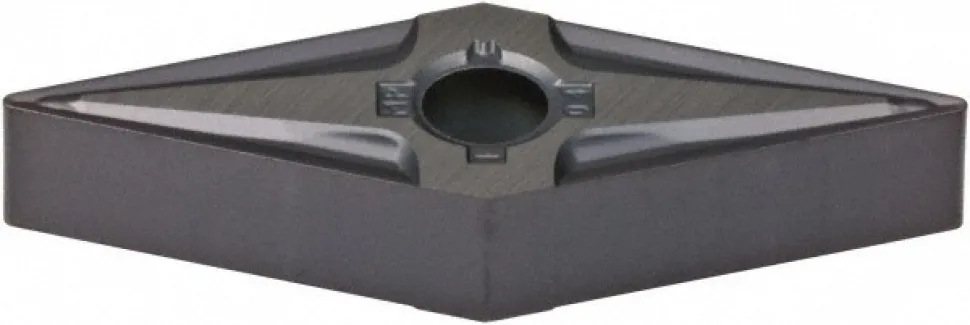

Turning Insert: VNMG332MP KCU10, Carbide

27,89 $

SKU: SKUibS0A7oHxJ Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: VNMG	ANSI Size Code: 332
ISO Size Code: 160408	Insert Shape: V – Diamond (Rhombic) 35-Deg
Included Angle: 35.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: KCU10	Coating/Finish: TiAlN
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral	Series: KENLOC
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.1500	Maximum Depth of Cut (Decimal Inch): 0.4354
ANSI Insert Code: VNMG332	ISO Insert Code: VNMG160408
Insert Holding Method: Pin; Clamp	Width (Inch): 3/8
Clearance Code: N	Tolerance Code: M
Coating Process: PVD	Rake: Negative
Insert Length (Decimal Inch): 1.3076	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; H; K; M; N	Secondary Workpiece Material Code: P; K; N
Iso Code: VNMG160408MP	Standards: ISO; ANSI
Manufacturers Catalog Number: 4045164	Material Grade: C3; C4
Coating Classification: PVD	Chip Breaker: MP
Rake Angle: 6	Cutting Edge Style: Honed; Chamfered
Industry Standard Number: VNMG332MP	Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring	UNSPSC Code: 23242105
Insert Style: VNMG
ANSI Size Code: 332
ISO Size Code: 160408
Insert Shape: V – Diamond (Rhombic) 35-Deg
Included Angle: 35.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KCU10
Coating/Finish: TiAlN
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.1500
Maximum Depth of Cut (Decimal Inch): 0.4354
ANSI Insert Code: VNMG332
ISO Insert Code: VNMG160408
Insert Holding Method: Pin; Clamp
Width (Inch): 3/8
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Rake: Negative
Insert Length (Decimal Inch): 1.3076
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; H; K; M; N
Secondary Workpiece Material Code: P; K; N
Iso Code: VNMG160408MP
Standards: ISO; ANSI
Manufacturers Catalog Number: 4045164
Material Grade: C3; C4
Coating Classification: PVD
Chip Breaker: MP
Rake Angle: 6
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: VNMG332MP
Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105
