Turning Insert: VCGX331-AL H10, Carbide
26,99 $

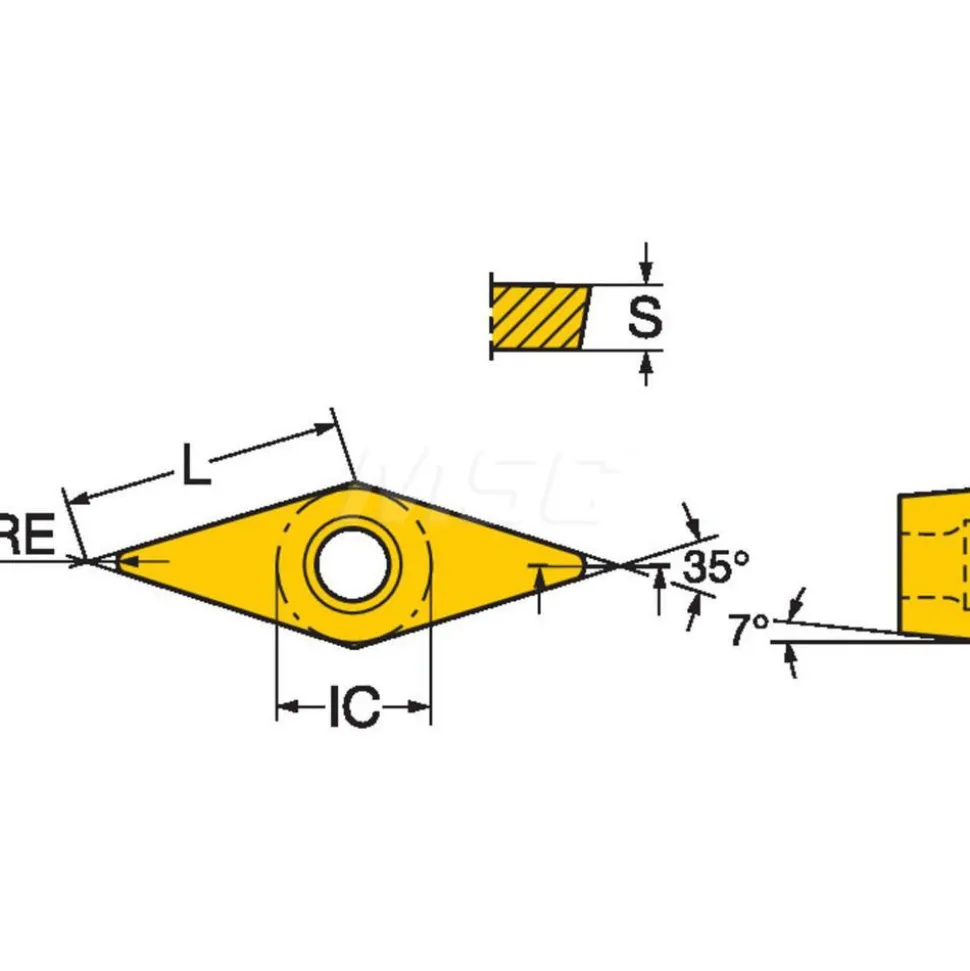

Specifications
| Insert Style: VCGX | ANSI Size Code: 331 |
| ISO Size Code: 160404 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (mm): 0.40 | Corner Radius (Decimal Inch): 0.0156 |
| Insert Material: Carbide | Manufacturer Grade: H10 |
| Coating/Finish: Bright/Uncoated | Relief Angle: 7.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Thickness: 4.76 |
| Insert Hand: Neutral | Series: CoroTurn 107 |
| Grade Characteristics: Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Positive |
| Number Of Cutting Edges: 2 | Hole Diameter (Decimal Inch): 0.1732 |
| Hole Diameter (mm): 4.40 | ANSI Insert Code: VCGX331 |
| ISO Insert Code: VCGX160404 | Insert Holding Method: Screw |
| Clearance Code: C | Tolerance Code: G |
| Insert Length (Decimal Inch): 0.6380 | Insert Length (mm): 16.21 |
| Primary Workpiece Material: Non-Ferrous Metal | Primary Workpiece Material Code: N |
| Secondary Workpiece Material: Superalloy; Titanium | Secondary Workpiece Material Code: S |
| Iso Code: VCGX 16 04 04-AL H10 | Chip Breaker: XF |
| UNSPSC Code: 23242105 | Country of Origin: Sweden |
| Insert Style: VCGX | |
| ANSI Size Code: 331 | |
| ISO Size Code: 160404 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: H10 | |
| Coating/Finish: Bright/Uncoated | |
| Relief Angle: 7.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Thickness: 4.76 | |
| Insert Hand: Neutral | |
| Series: CoroTurn 107 | |
| Grade Characteristics: Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Hole Diameter (mm): 4.40 | |
| ANSI Insert Code: VCGX331 | |
| ISO Insert Code: VCGX160404 | |
| Insert Holding Method: Screw | |
| Clearance Code: C | |
| Tolerance Code: G | |
| Insert Length (Decimal Inch): 0.6380 | |
| Insert Length (mm): 16.21 | |
| Primary Workpiece Material: Non-Ferrous Metal | |
| Primary Workpiece Material Code: N | |
| Secondary Workpiece Material: Superalloy; Titanium | |
| Secondary Workpiece Material Code: S | |
| Iso Code: VCGX 16 04 04-AL H10 | |
| Chip Breaker: XF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Sweden |
| MSC# | 52077377 |
| Mfr# | 5755915 |
