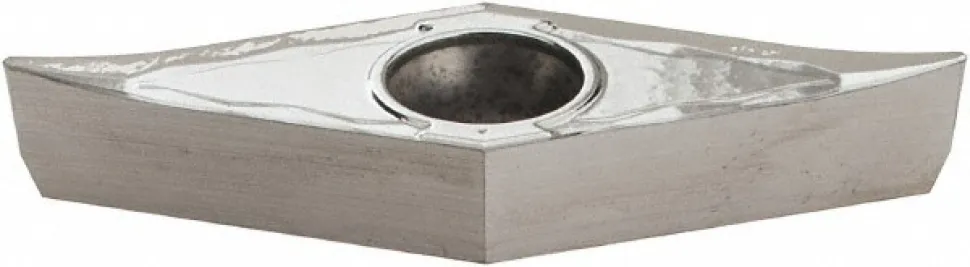

Turning Insert: VCGT331AS IC20, Carbide

25,99 $

SKU: SKUEt4pzQhEBx Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

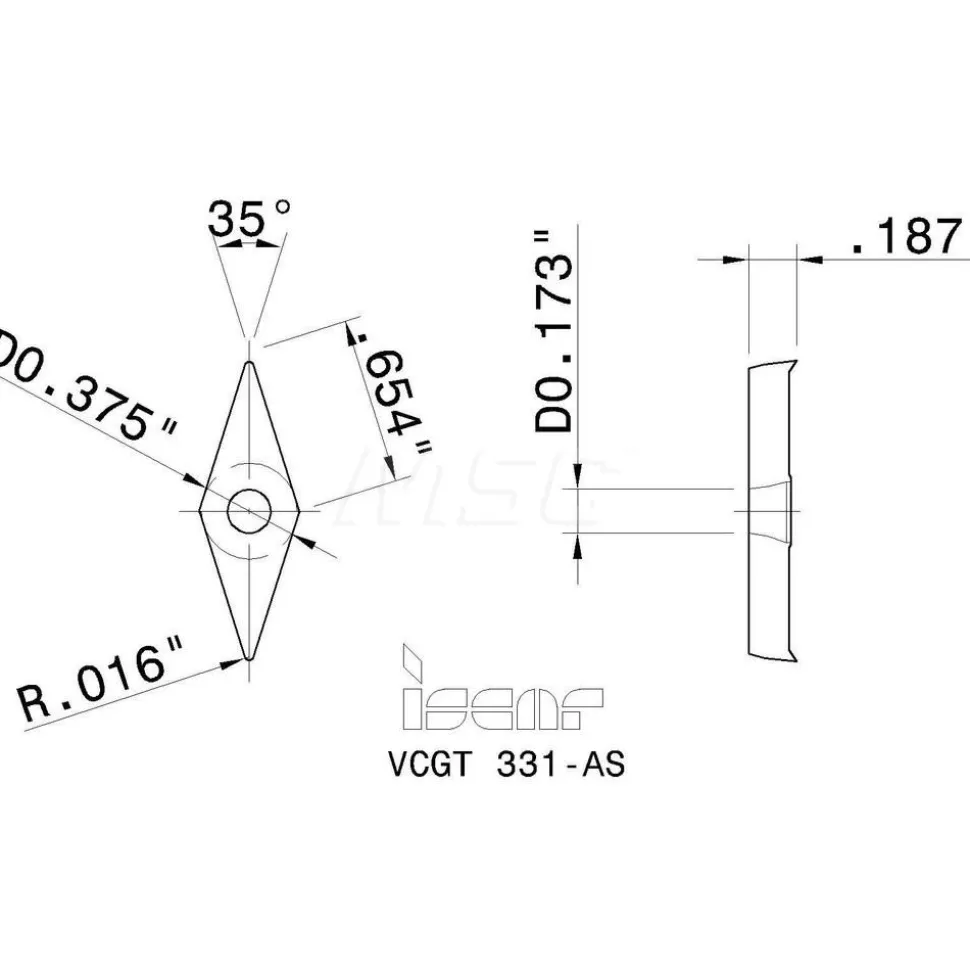

Insert Style: VCGT	ANSI Size Code: 331
ISO Size Code: 160404	Insert Shape: V – Diamond (Rhombic) 35-Deg
Included Angle: 35.00	Inscribed Circle (Decimal Inch): 0.3748
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157	Insert Material: Carbide
Manufacturer Grade: IC20	Coating/Finish: Bright/Uncoated
Relief Angle: 7.000	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874	Series: Isoturn
Chip Breaker Operation: Finishing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40	Maximum Depth of Cut (mm): 3.00
Maximum Depth of Cut (Decimal Inch): 0.1180	ANSI Insert Code: VCGT331
ISO Insert Code: VCGT160404	Insert Holding Method: Screw
Clearance Code: C	Tolerance Code: G
Coating Process: Uncoated	Rake: Positive
Insert Length (Decimal Inch): 0.6535	Insert Length (mm): 16.60
Primary Workpiece Material Code: P; S; K; M; N	Iso Code: ISO 13399
Standards: ISO 13399	Material Grade: C3; C2
Chip Breaker: AS	UNSPSC Code: 23242105
Country of Origin: South Korea
Insert Style: VCGT
ANSI Size Code: 331
ISO Size Code: 160404
Insert Shape: V – Diamond (Rhombic) 35-Deg
Included Angle: 35.00
Inscribed Circle (Decimal Inch): 0.3748
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide
Manufacturer Grade: IC20
Coating/Finish: Bright/Uncoated
Relief Angle: 7.000
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Series: Isoturn
Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 3.00
Maximum Depth of Cut (Decimal Inch): 0.1180
ANSI Insert Code: VCGT331
ISO Insert Code: VCGT160404
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: G
Coating Process: Uncoated
Rake: Positive
Insert Length (Decimal Inch): 0.6535
Insert Length (mm): 16.60
Primary Workpiece Material Code: P; S; K; M; N
Iso Code: ISO 13399
Standards: ISO 13399
Material Grade: C3; C2
Chip Breaker: AS
UNSPSC Code: 23242105
Country of Origin: South Korea
