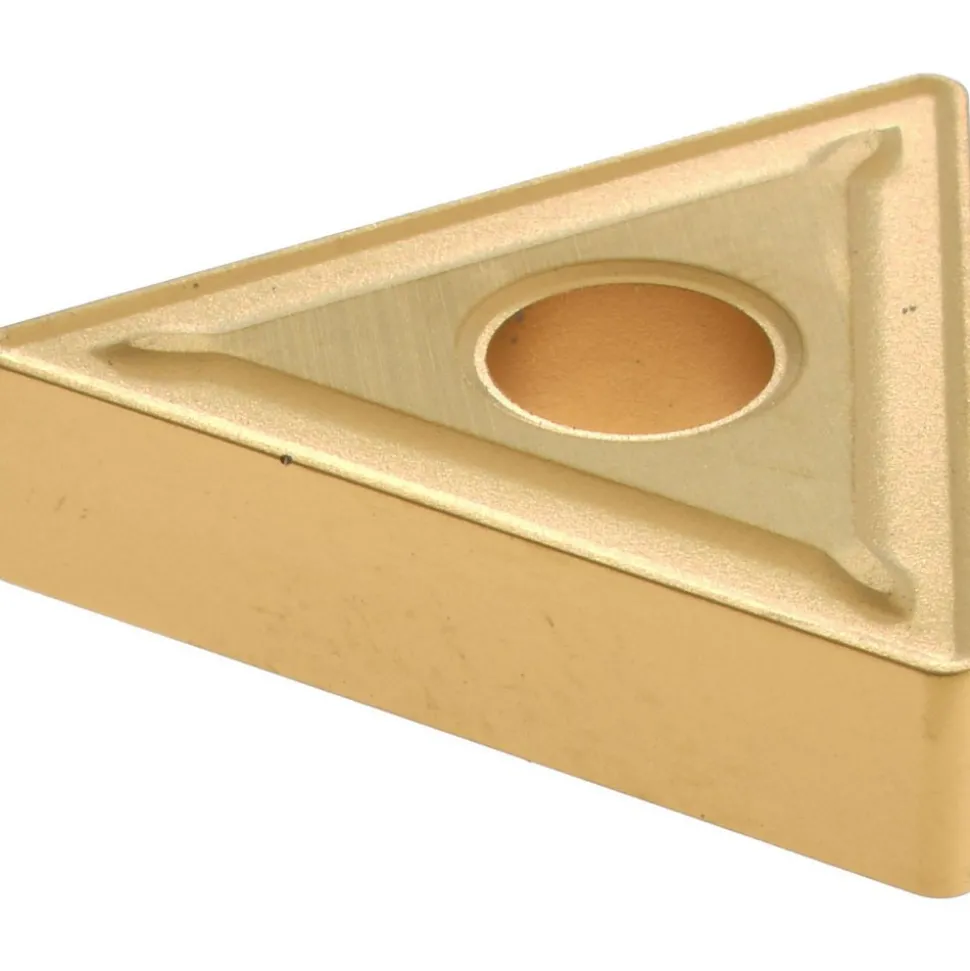

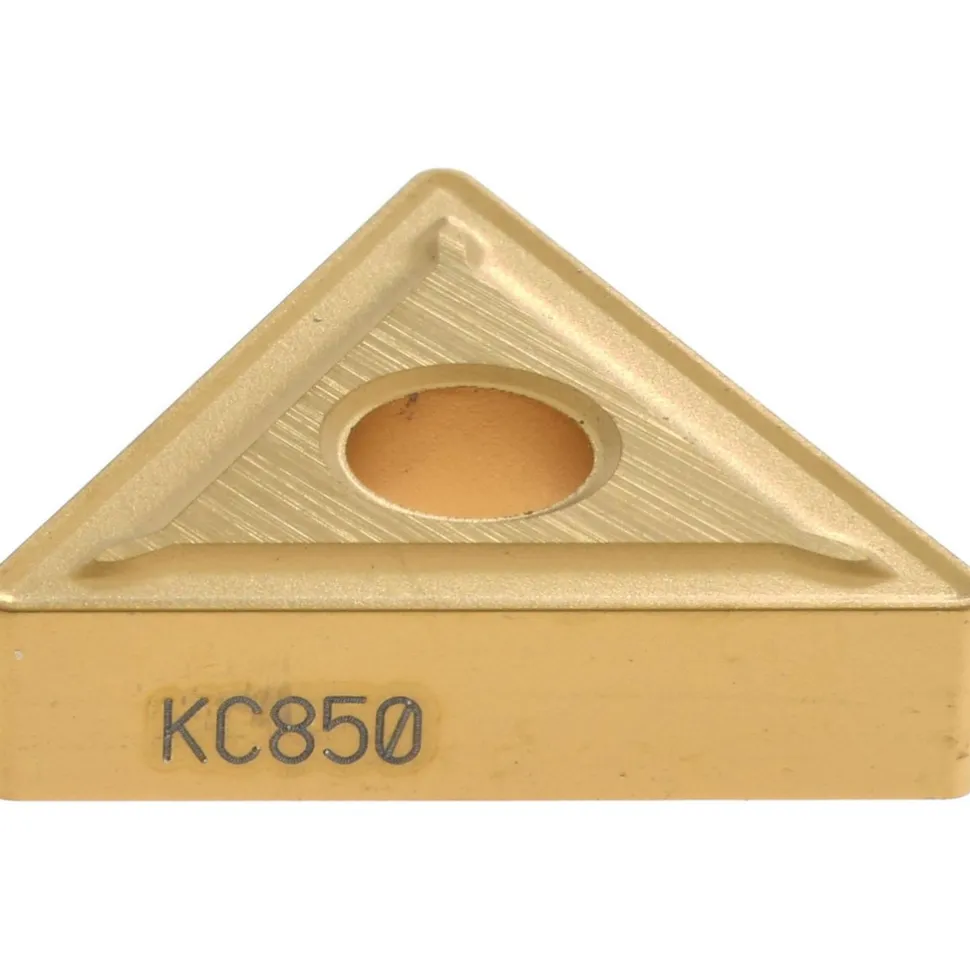

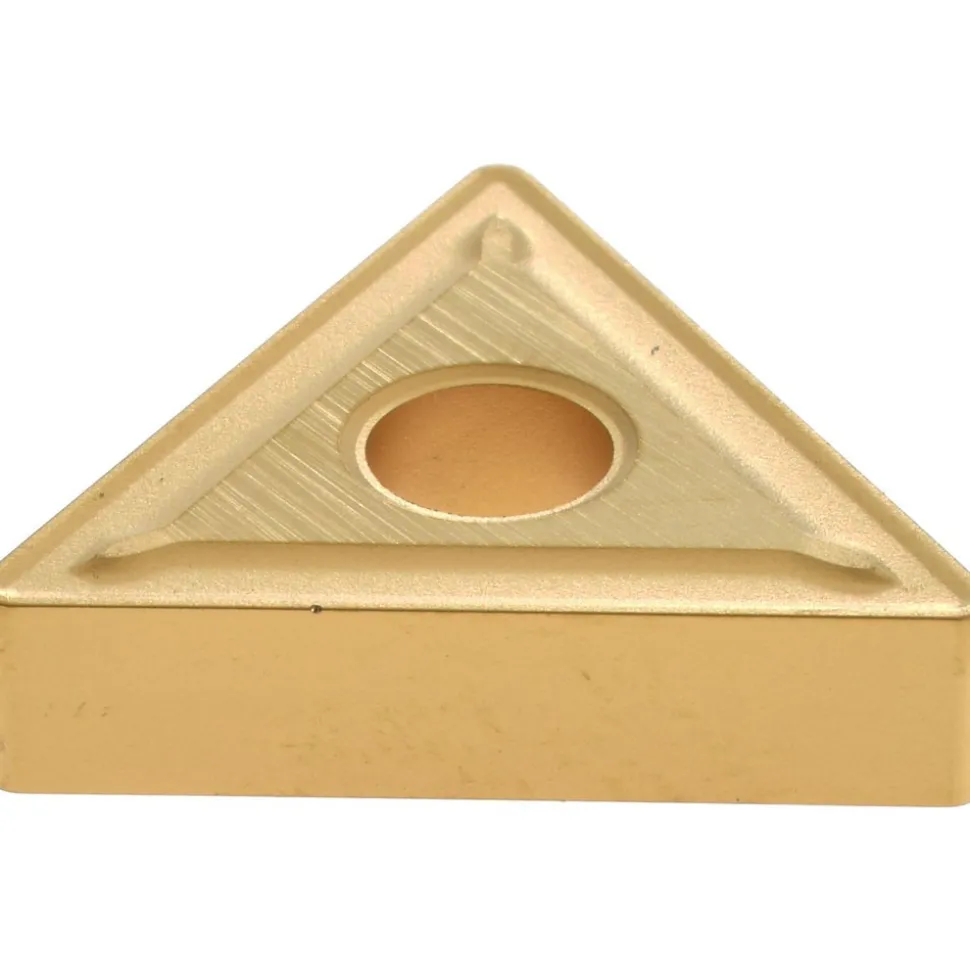

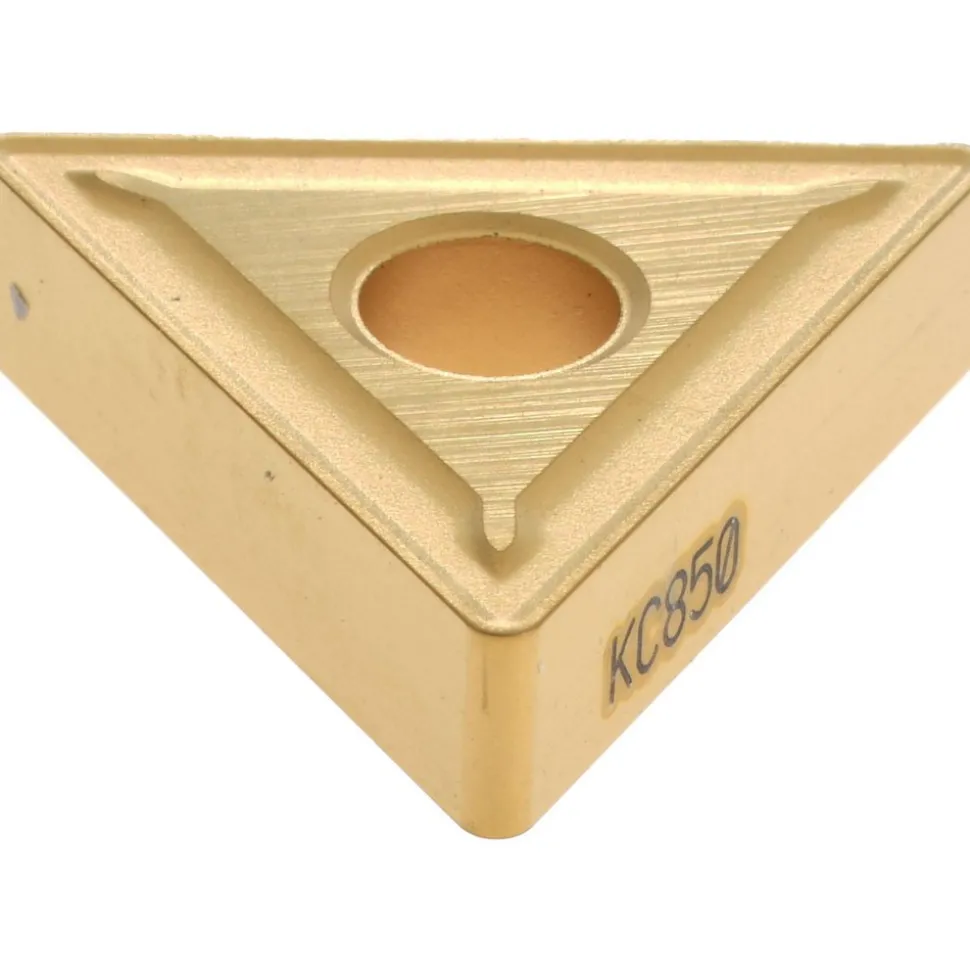

Turning Insert: TNMG432 KC850, Carbide

25,99 $

SKU: SKUkZPcbKIxho Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: TNMG	ANSI Size Code: 432
ISO Size Code: 220408	Insert Shape: T – Triangle
Included Angle: 60.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: KC850	Coating/Finish: TiCN; TiN; TiC
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral	Series: KENLOC
Chip Breaker Operation: Medium Machining	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 6
Hole Diameter (Decimal Inch): 0.2031	Hole Diameter (mm): 5.16
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: TNMG432	ISO Insert Code: TNMG220408
Insert Holding Method: Pin; Clamp	Clearance Code: N
Tolerance Code: M	Coating Process: CVD
Rake: Negative	Insert Length (Decimal Inch): 0.8661
Insert Length (mm): 22.00	Primary Workpiece Material: Stainless Steel; Steel
Primary Workpiece Material Code: P; S; K; M	Secondary Workpiece Material Code: K; M
Standards: ISO; ANSI	Manufacturers Catalog Number: 1160303
Material Grade: C5; C6	Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD	Chip Breaker: Common
Rake Angle: 0	Cutting Edge Style: Honed; Chamfered
Industry Standard Number: TNMG432	Width (Decimal Inch – 4 Decimals): 0.8661
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Country of Origin: UNITED STATES
Insert Style: TNMG
ANSI Size Code: 432
ISO Size Code: 220408
Insert Shape: T – Triangle
Included Angle: 60.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KC850
Coating/Finish: TiCN; TiN; TiC
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 6
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (mm): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: TNMG432
ISO Insert Code: TNMG220408
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Negative
Insert Length (Decimal Inch): 0.8661
Insert Length (mm): 22.00
Primary Workpiece Material: Stainless Steel; Steel
Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1160303
Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD
Chip Breaker: Common
Rake Angle: 0
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: TNMG432
Width (Decimal Inch – 4 Decimals): 0.8661
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
