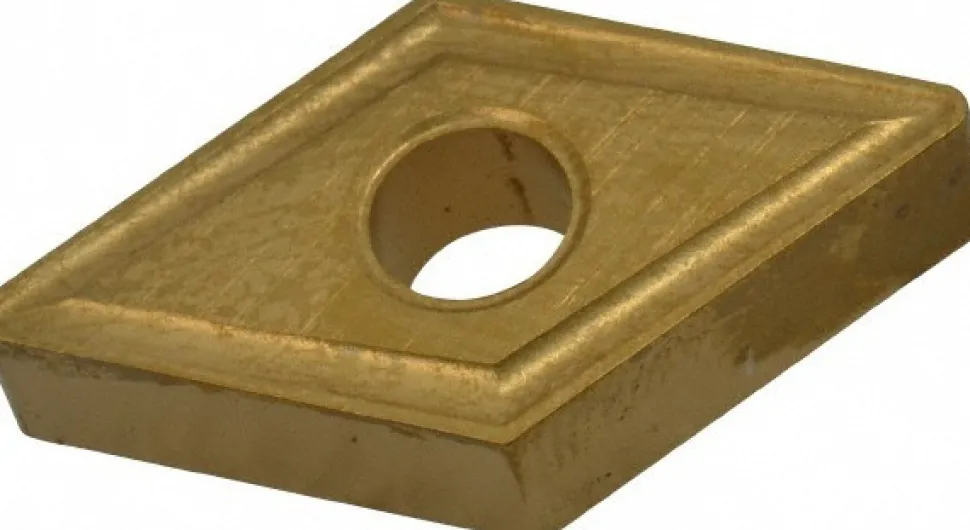

Turning Insert: DNMG432 KC850, Carbide

Original price was: 40,00 $.Current price is: 28,89 $.

SKU: SKU15hbFwD7aH Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: DNMG	ANSI Size Code: 432
ISO Size Code: 150408	Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: KC850	Coating/Finish: TiCN; TiN; TiC
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral	Series: KENLOC
Chip Breaker Operation: Medium Machining	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031	Hole Diameter (mm): 5.16
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: DNMG432	ISO Insert Code: DNMG150408
Insert Holding Method: Pin; Clamp	Width (Inch): 1/2
Clearance Code: N	Tolerance Code: M
Coating Process: CVD	Rake: Negative
Insert Length (Decimal Inch): 1.2208	Insert Length (mm): 15.50
Primary Workpiece Material: Stainless Steel; Steel	Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M	Standards: ISO; ANSI
Manufacturers Catalog Number: 1160215	Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating	Coating Classification: CVD
Chip Breaker: Common	Rake Angle: 0
Cutting Edge Style: Honed; Chamfered	Industry Standard Number: DNMG432
Width (Decimal Inch – 4 Decimals): 0.5000	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105	Country of Origin: UNITED STATES
Insert Style: DNMG
ANSI Size Code: 432
ISO Size Code: 150408
Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KC850
Coating/Finish: TiCN; TiN; TiC
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (mm): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: DNMG432
ISO Insert Code: DNMG150408
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Negative
Insert Length (Decimal Inch): 1.2208
Insert Length (mm): 15.50
Primary Workpiece Material: Stainless Steel; Steel
Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1160215
Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD
Chip Breaker: Common
Rake Angle: 0
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: DNMG432
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
