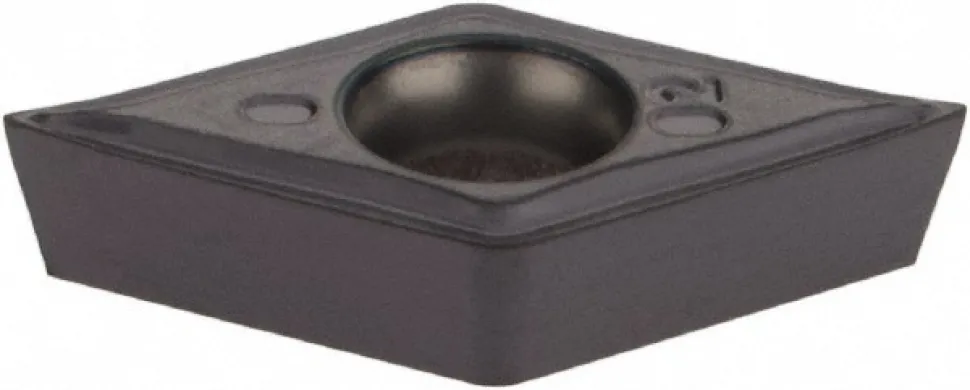

Turning Insert: DCMT 3-0-SM IC907, Carbide

Turning Insert: DCMT 3-0-SM IC907, Carbide

18,99 $

SKU: SKUSxo20PlFW4 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

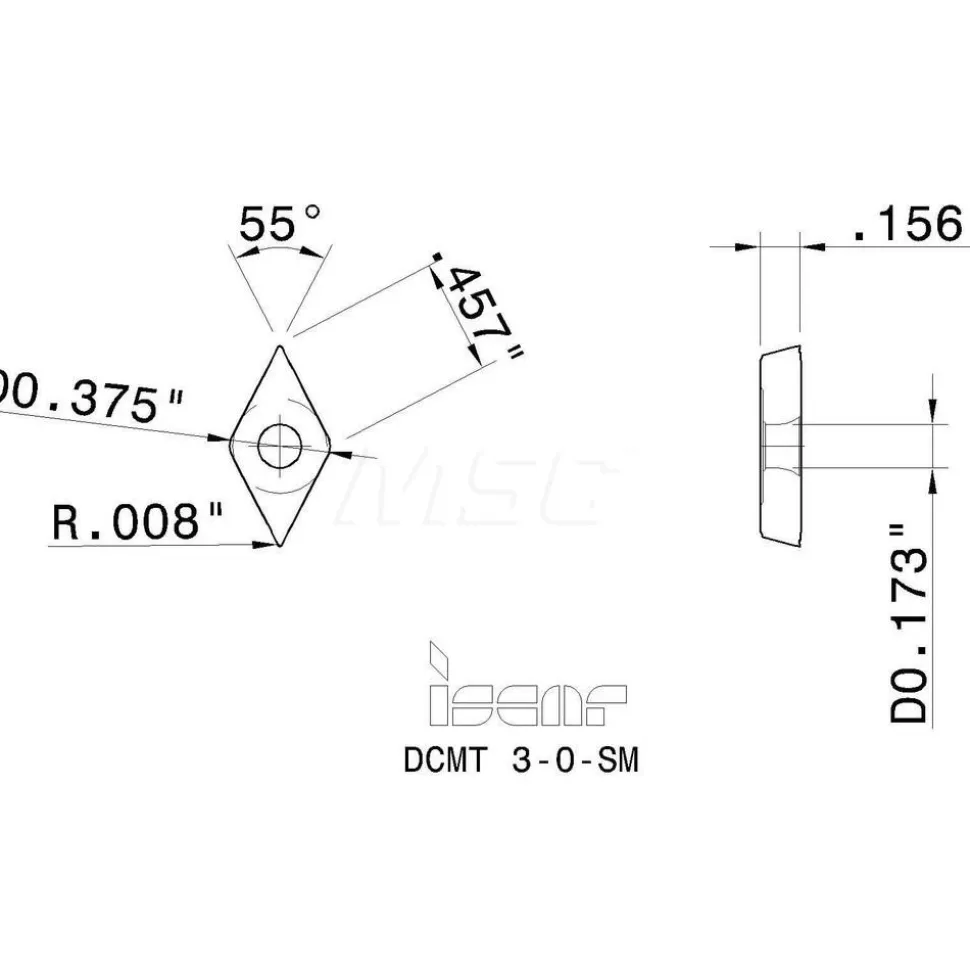

Insert Style: DCMT	ANSI Size Code: 3-0
ISO Size Code: 11T302	Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00	Inscribed Circle (Decimal Inch): 0.3748
Inscribed Circle (Inch): 3/8	Corner Radius (Decimal Inch): 0.0079
Insert Material: Carbide	Manufacturer Grade: IC907
Coating/Finish: TiN; TiAlN	Relief Angle: 7.000
Insert Thickness (Inch): 5/32	Insert Thickness (Decimal Inch): 0.1563
Series: Isoturn	Chip Breaker Operation: Medium Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1732	Hole Diameter (mm): 4.40
Maximum Depth of Cut (Decimal Inch): 0.0980	ANSI Insert Code: DCMT3-0
ISO Insert Code: DCMT11T302	Insert Holding Method: Screw
Clearance Code: C	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.4567	Insert Length (mm): 11.60
Primary Workpiece Material Code: P; S; K; M; N	Iso Code: ISO 13399
Standards: ISO 13399	Material Grade: C7; C8
Chip Breaker: SM	UNSPSC Code: 23242105
Country of Origin: Israel
Insert Style: DCMT
ANSI Size Code: 3-0
ISO Size Code: 11T302
Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00
Inscribed Circle (Decimal Inch): 0.3748
Inscribed Circle (Inch): 3/8
Corner Radius (Decimal Inch): 0.0079
Insert Material: Carbide
Manufacturer Grade: IC907
Coating/Finish: TiN; TiAlN
Relief Angle: 7.000
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Series: Isoturn
Chip Breaker Operation: Medium Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
Maximum Depth of Cut (Decimal Inch): 0.0980
ANSI Insert Code: DCMT3-0
ISO Insert Code: DCMT11T302
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.4567
Insert Length (mm): 11.60
Primary Workpiece Material Code: P; S; K; M; N
Iso Code: ISO 13399
Standards: ISO 13399
Material Grade: C7; C8
Chip Breaker: SM
UNSPSC Code: 23242105
Country of Origin: Israel
