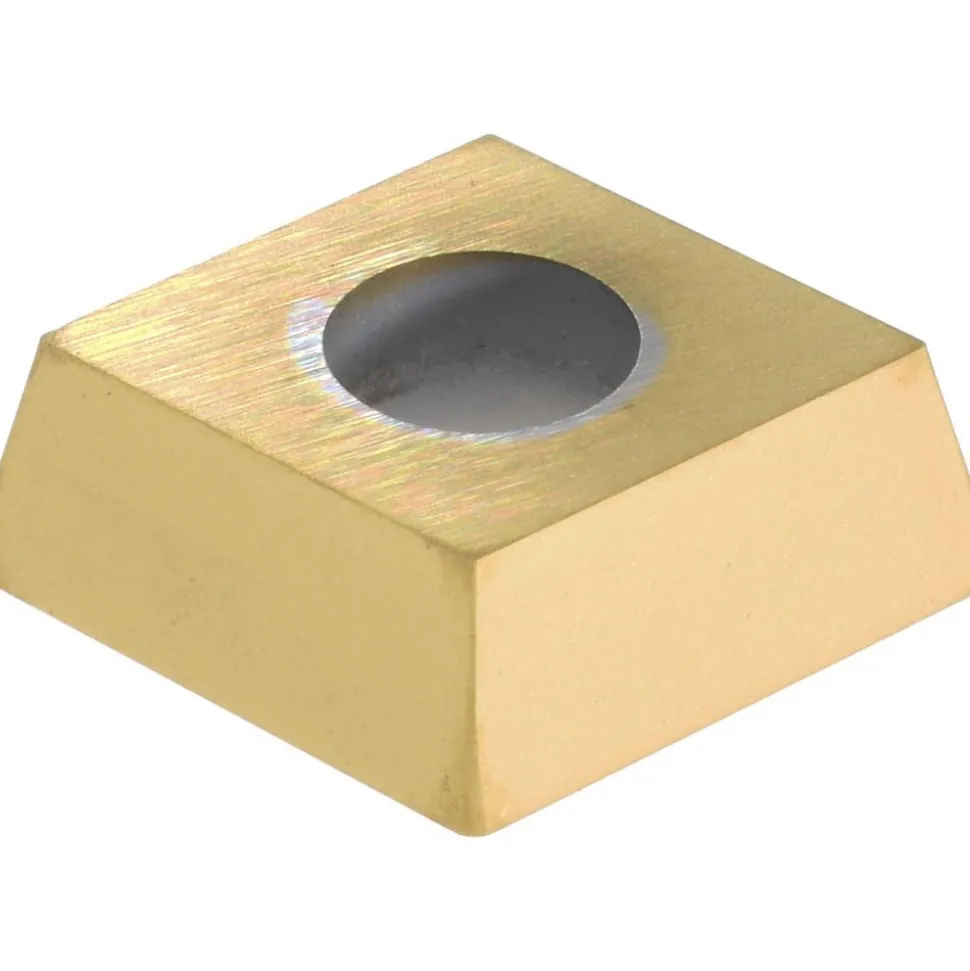

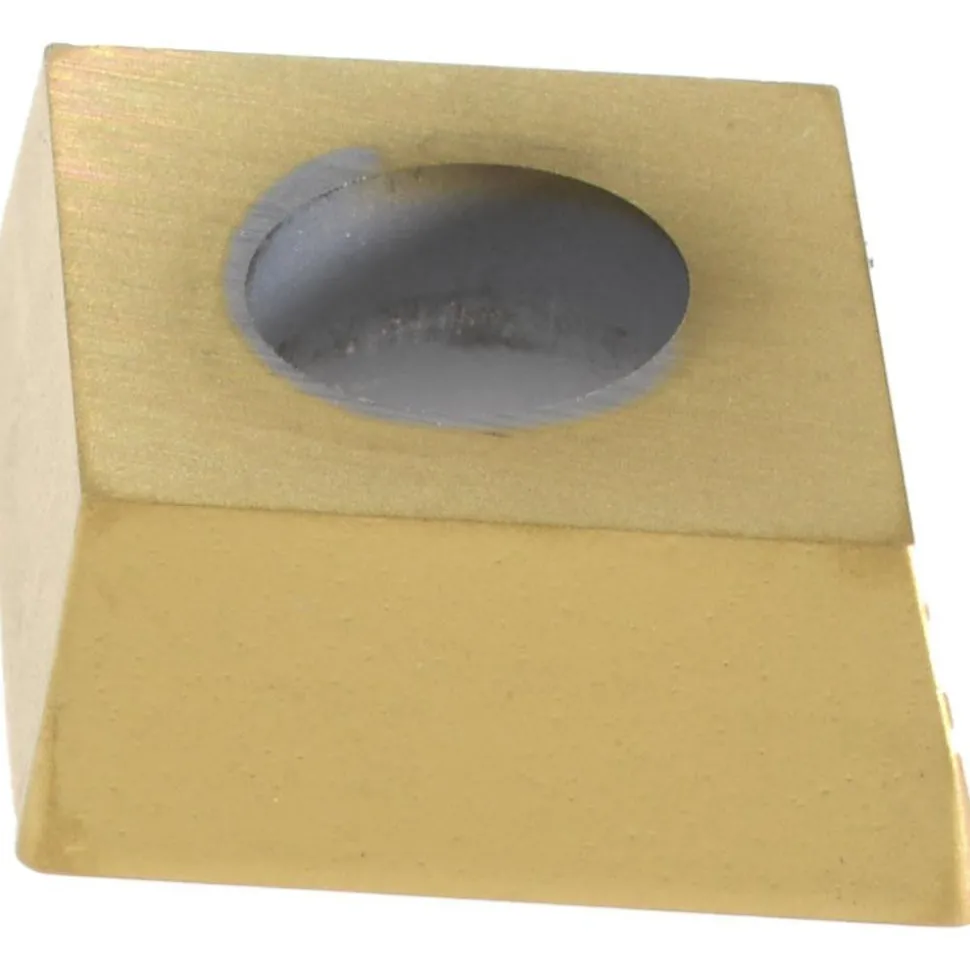

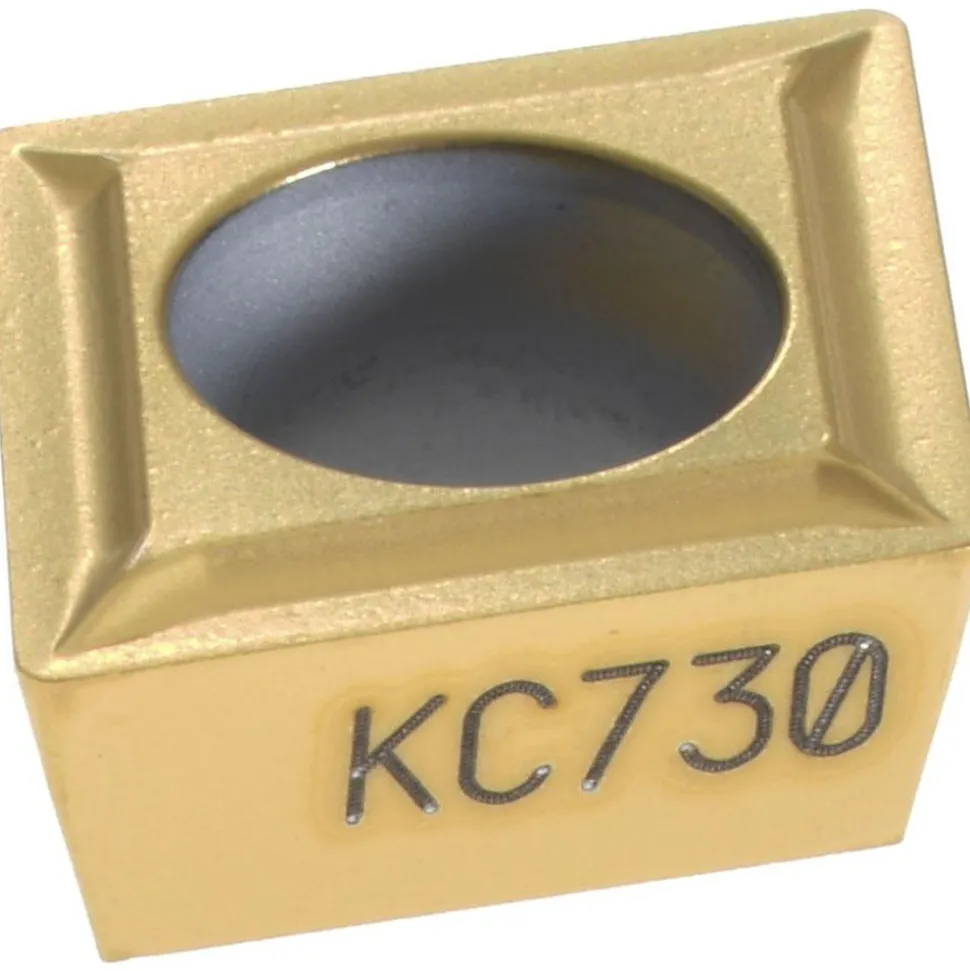

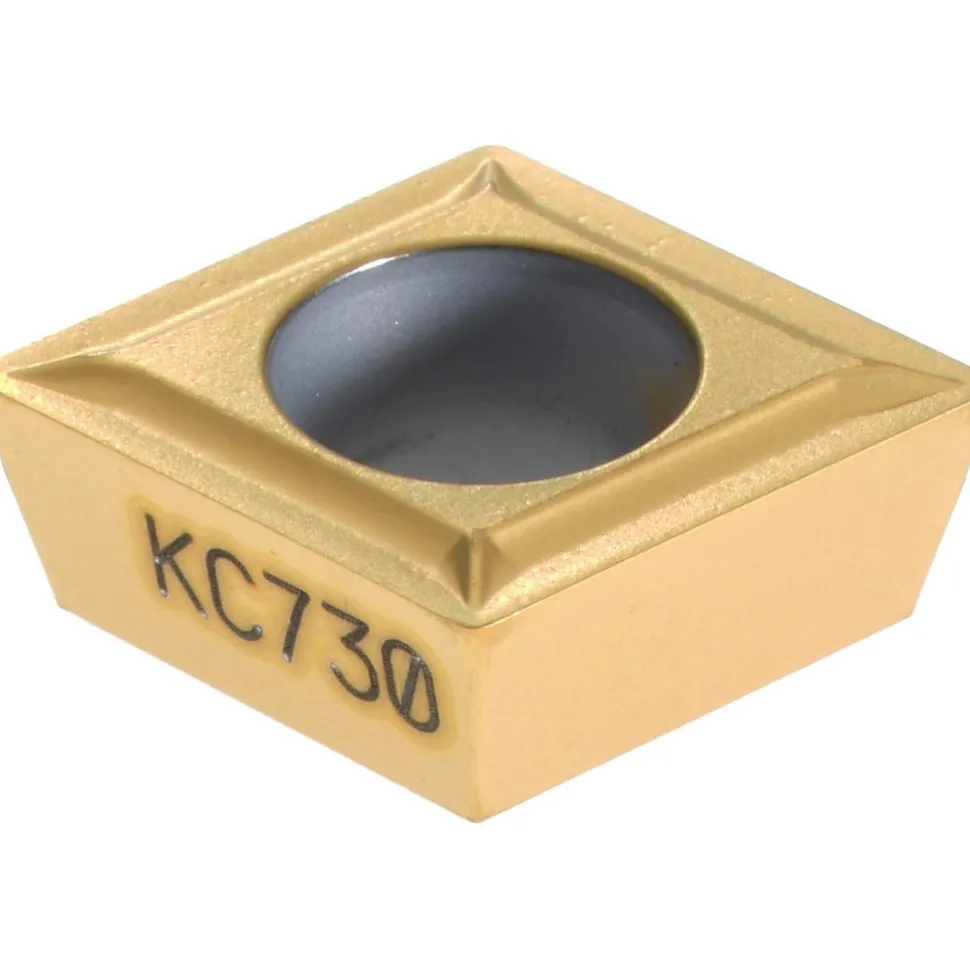

Turning Insert: CPMT32.51LF KC730, Carbide
Original price was: 36,00 $.25,99 $Current price is: 25,99 $.
Specifications
| Insert Style: CPMT | ANSI Size Code: 32.51 |
| ISO Size Code: 09T304 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0156 | Insert Material: Carbide |
| Manufacturer Grade: KC730 | Coating/Finish: TiN |
| Relief Angle: 11.000 | Wiper Edge: No |
| Insert Thickness (Inch): 5/32 | Insert Thickness (Decimal Inch): 0.1563 |
| Insert Hand: Neutral | Series: Screw-On |
| Chip Breaker Operation: Light Machining; Finishing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Number Of Cutting Edges: 2 |
| Hole Diameter (Decimal Inch): 0.1732 | Hole Diameter (mm): 4.40 |
| Maximum Depth of Cut (mm): 1.25 | Maximum Depth of Cut (Decimal Inch): 0.0492 |
| ANSI Insert Code: CPMT32.51 | ISO Insert Code: CPMT09T304 |
| Insert Holding Method: Screw | Width (Inch): 3/8 |
| Clearance Code: P | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.3808 | Insert Length (mm): 9.67 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; K; M |
| Secondary Workpiece Material Code: S; M | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 1161918 | Material Grade: C3; C4; C2 |
| Proprietary Coating Designation: TiN | Coating Classification: PVD |
| Chip Breaker: LF | Rake Angle: 5 |
| Cutting Edge Style: Honed | Industry Standard Number: CPMT3251LF |
| Width (Decimal Inch – 4 Decimals): 0.3750 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Facing; Turning; Boring |
| UNSPSC Code: 23242105 | Country of Origin: UNITED STATES |
| Insert Style: CPMT | |
| ANSI Size Code: 32.51 | |
| ISO Size Code: 09T304 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC730 | |
| Coating/Finish: TiN | |
| Relief Angle: 11.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 5/32 | |
| Insert Thickness (Decimal Inch): 0.1563 | |
| Insert Hand: Neutral | |
| Series: Screw-On | |
| Chip Breaker Operation: Light Machining; Finishing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Hole Diameter (mm): 4.40 | |
| Maximum Depth of Cut (mm): 1.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | |
| ANSI Insert Code: CPMT32.51 | |
| ISO Insert Code: CPMT09T304 | |
| Insert Holding Method: Screw | |
| Width (Inch): 3/8 | |
| Clearance Code: P | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.3808 | |
| Insert Length (mm): 9.67 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; K; M | |
| Secondary Workpiece Material Code: S; M | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 1161918 | |
| Material Grade: C3; C4; C2 | |
| Proprietary Coating Designation: TiN | |
| Coating Classification: PVD | |
| Chip Breaker: LF | |
| Rake Angle: 5 | |
| Cutting Edge Style: Honed | |
| Industry Standard Number: CPMT3251LF | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: UNITED STATES |
| MSC# | 08441545 |
| Mfr# | 1161918 |
| Big Book# | 769 |
