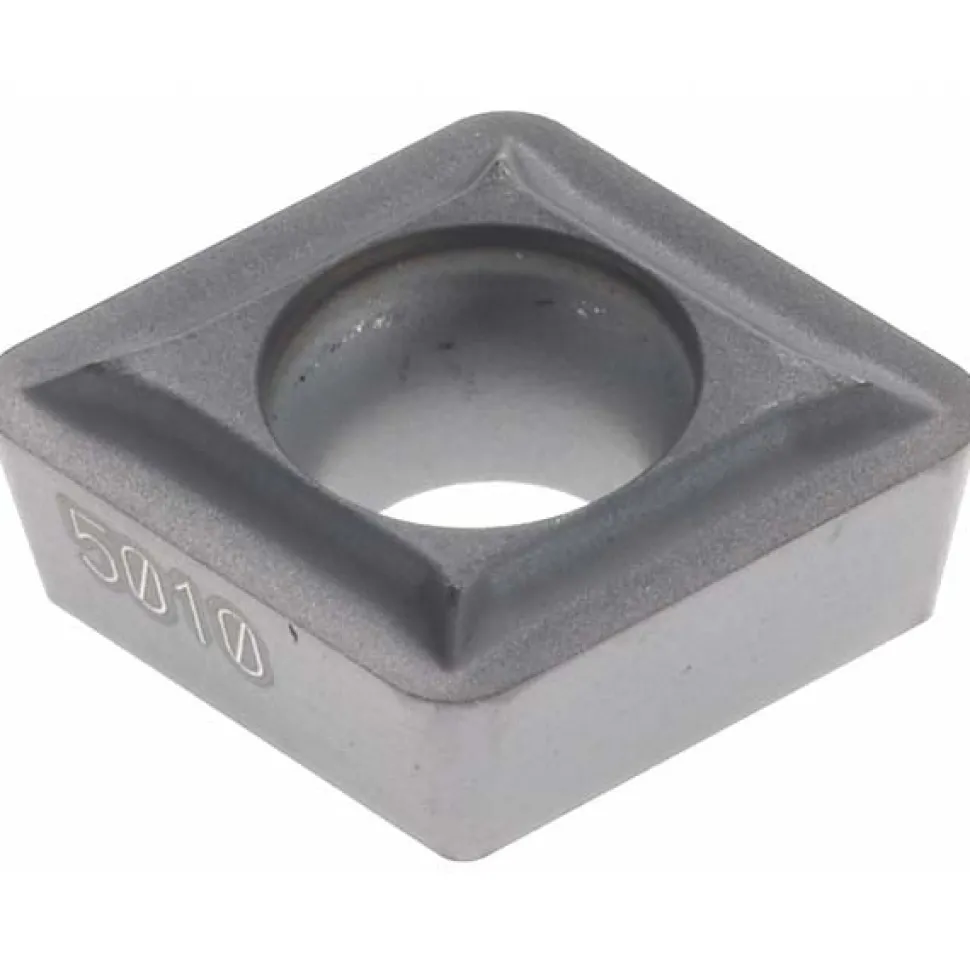

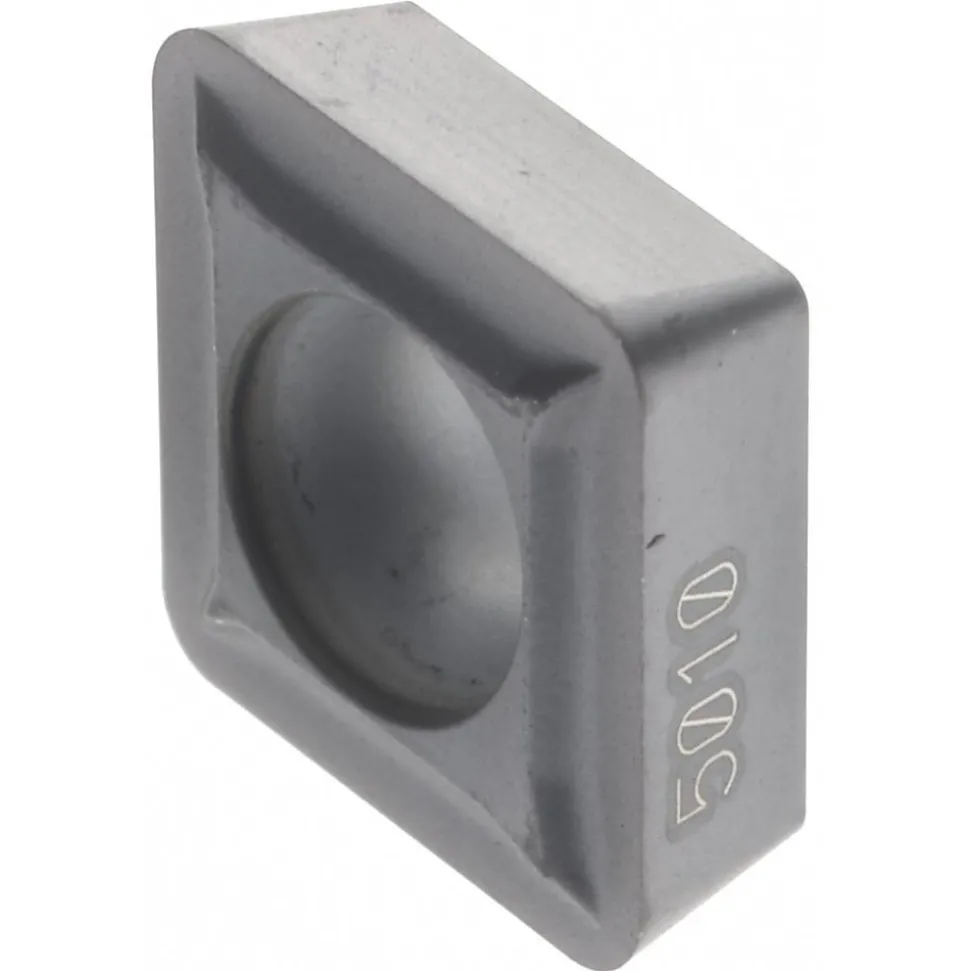

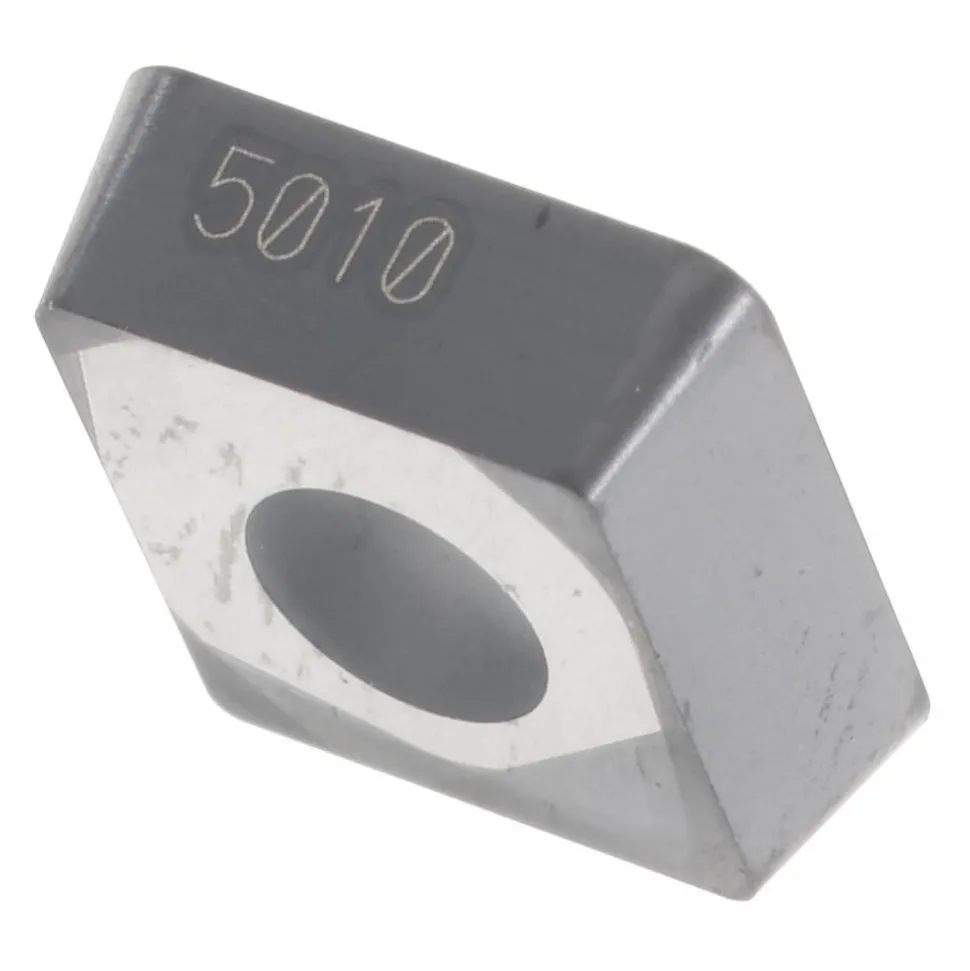

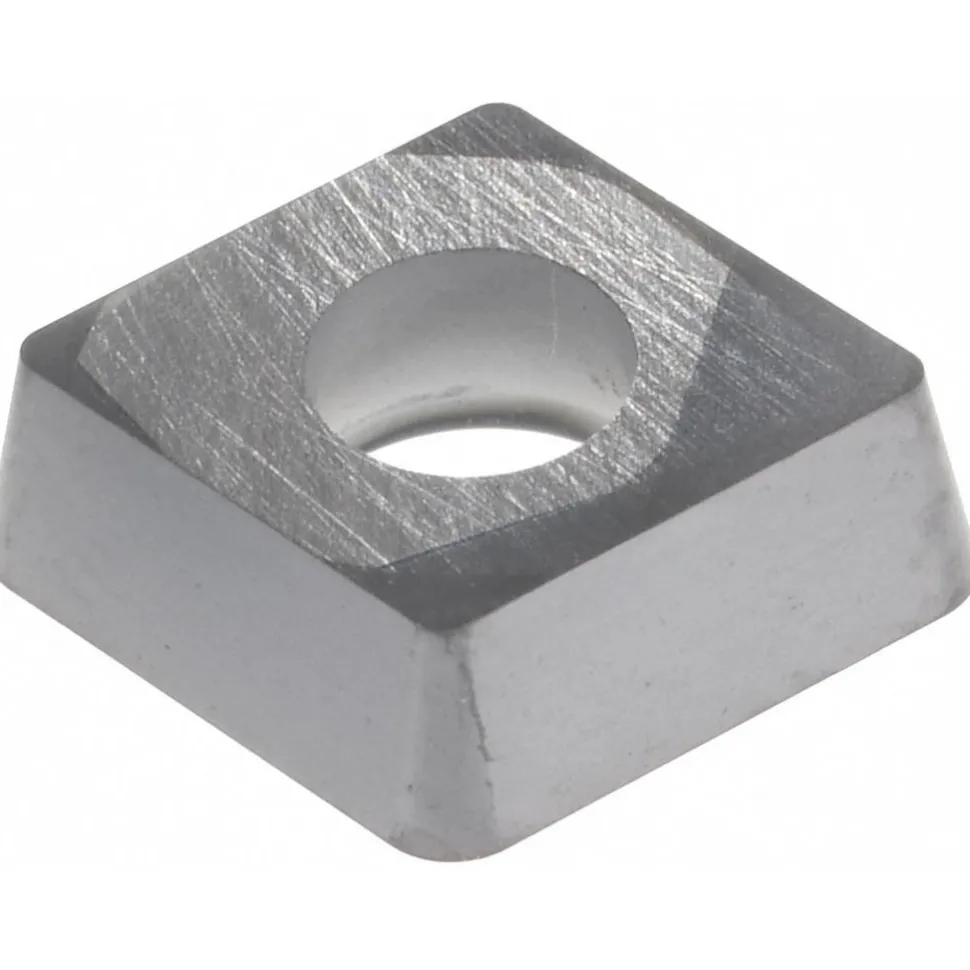

Turning Insert: CPGT2152LF KC5010, Carbide
24,99 $
Specifications
| Insert Style: CPGT | ANSI Size Code: 21.52 |
| ISO Size Code: 060208 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.2500 |
| Inscribed Circle (Inch): 1/4 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0313 | Insert Material: Carbide |
| Manufacturer Grade: KC5010 | Coating/Finish: TiAlN |
| Relief Angle: 11.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/32 | Insert Thickness (Decimal Inch): 0.0938 |
| Insert Hand: Neutral | Series: Screw-On |
| Chip Breaker Operation: Light Machining; Finishing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Number Of Cutting Edges: 2 |
| Hole Diameter (Decimal Inch): 0.1102 | Hole Diameter (mm): 2.80 |
| Maximum Depth of Cut (mm): 1.25 | Maximum Depth of Cut (Decimal Inch): 0.0492 |
| ANSI Insert Code: CPGT21.52 | ISO Insert Code: CPGT060208 |
| Insert Holding Method: Screw | Width (Inch): 1/4 |
| Clearance Code: P | Tolerance Code: G |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.2539 | Insert Length (mm): 6.45 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; K; M; N |
| Secondary Workpiece Material Code: P; S; N | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 1909790 | Material Grade: C3; C4 |
| Coating Classification: PVD | Chip Breaker: LF |
| Rake Angle: 5 | Cutting Edge Style: Honed |
| Industry Standard Number: CPGT2152LF | Width (Decimal Inch – 4 Decimals): 0.2500 |
| Multi-Use Tool: Yes | Full Radius: No |
| Multi-Use Application: Facing; Turning; Boring | UNSPSC Code: 23242105 |
| Country of Origin: UNITED STATES | |
| Insert Style: CPGT | |
| ANSI Size Code: 21.52 | |
| ISO Size Code: 060208 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.2500 | |
| Inscribed Circle (Inch): 1/4 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC5010 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 11.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/32 | |
| Insert Thickness (Decimal Inch): 0.0938 | |
| Insert Hand: Neutral | |
| Series: Screw-On | |
| Chip Breaker Operation: Light Machining; Finishing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.1102 | |
| Hole Diameter (mm): 2.80 | |
| Maximum Depth of Cut (mm): 1.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | |
| ANSI Insert Code: CPGT21.52 | |
| ISO Insert Code: CPGT060208 | |
| Insert Holding Method: Screw | |
| Width (Inch): 1/4 | |
| Clearance Code: P | |
| Tolerance Code: G | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.2539 | |
| Insert Length (mm): 6.45 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Secondary Workpiece Material Code: P; S; N | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 1909790 | |
| Material Grade: C3; C4 | |
| Coating Classification: PVD | |
| Chip Breaker: LF | |
| Rake Angle: 5 | |
| Cutting Edge Style: Honed | |
| Industry Standard Number: CPGT2152LF | |
| Width (Decimal Inch – 4 Decimals): 0.2500 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: UNITED STATES |
| MSC# | 00463711 |
| Mfr# | 1909790 |
| Big Book# | 768 |
