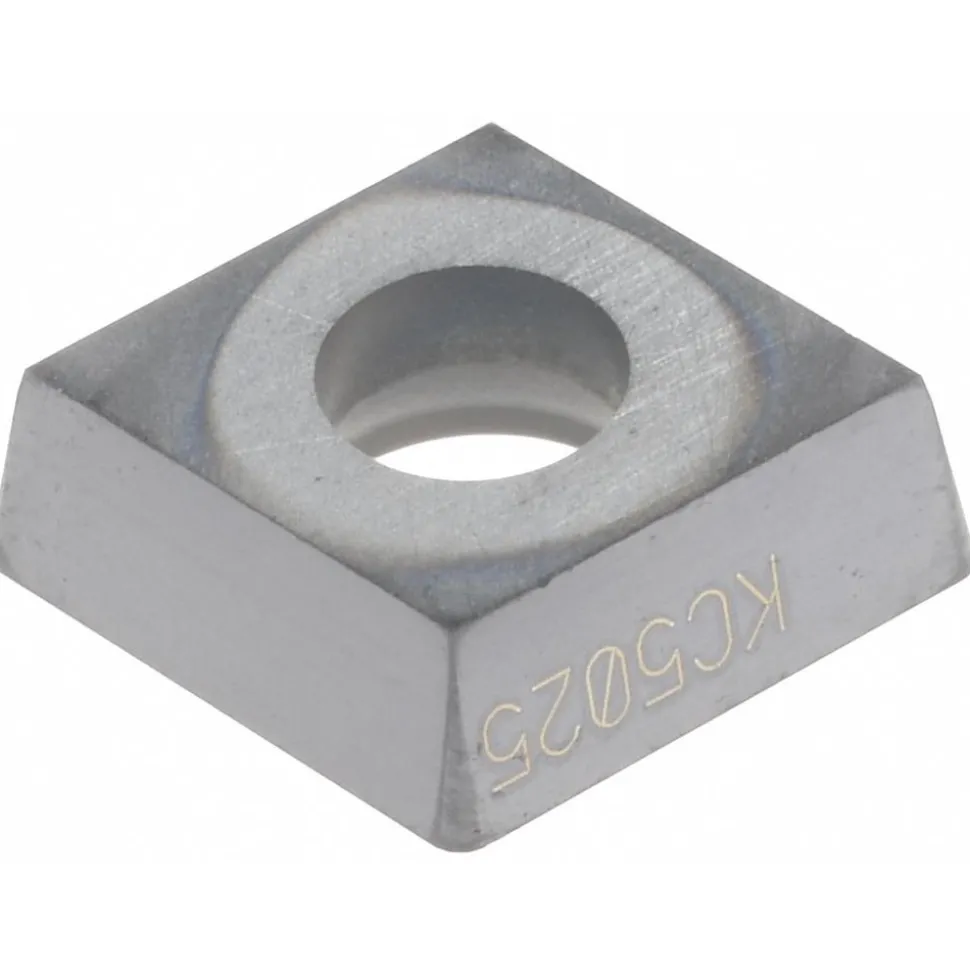

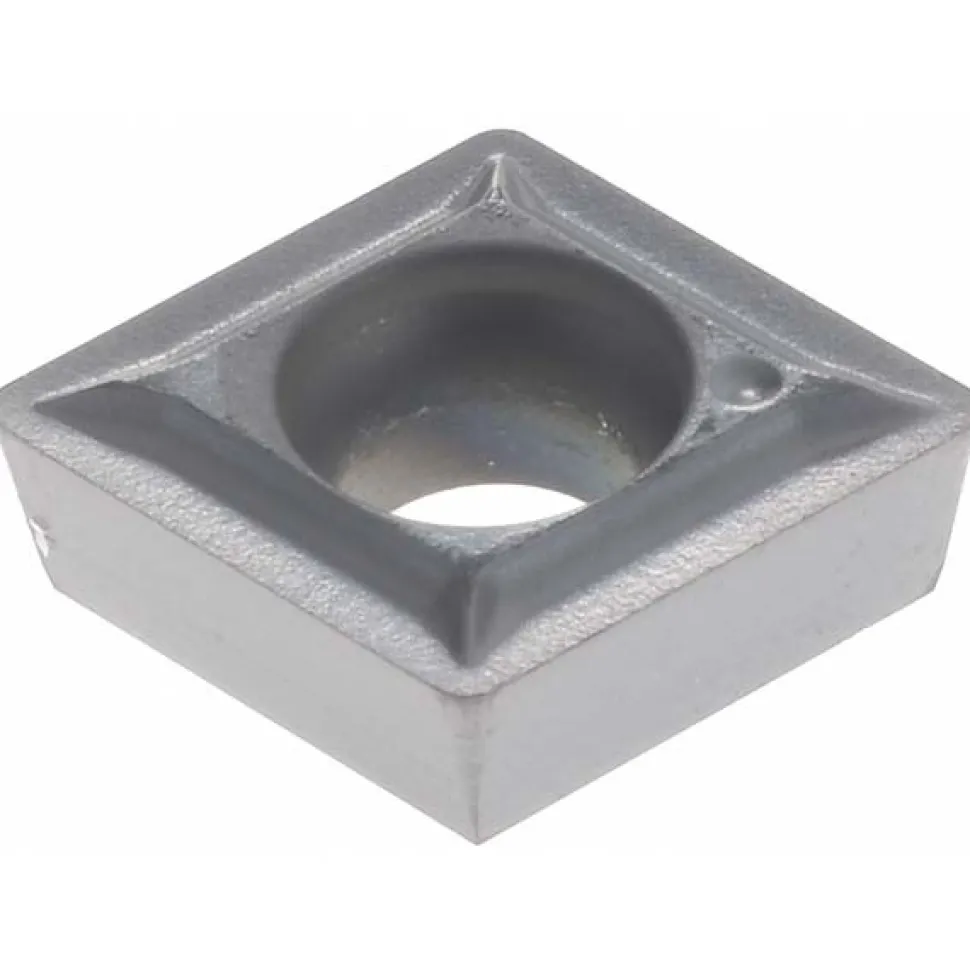

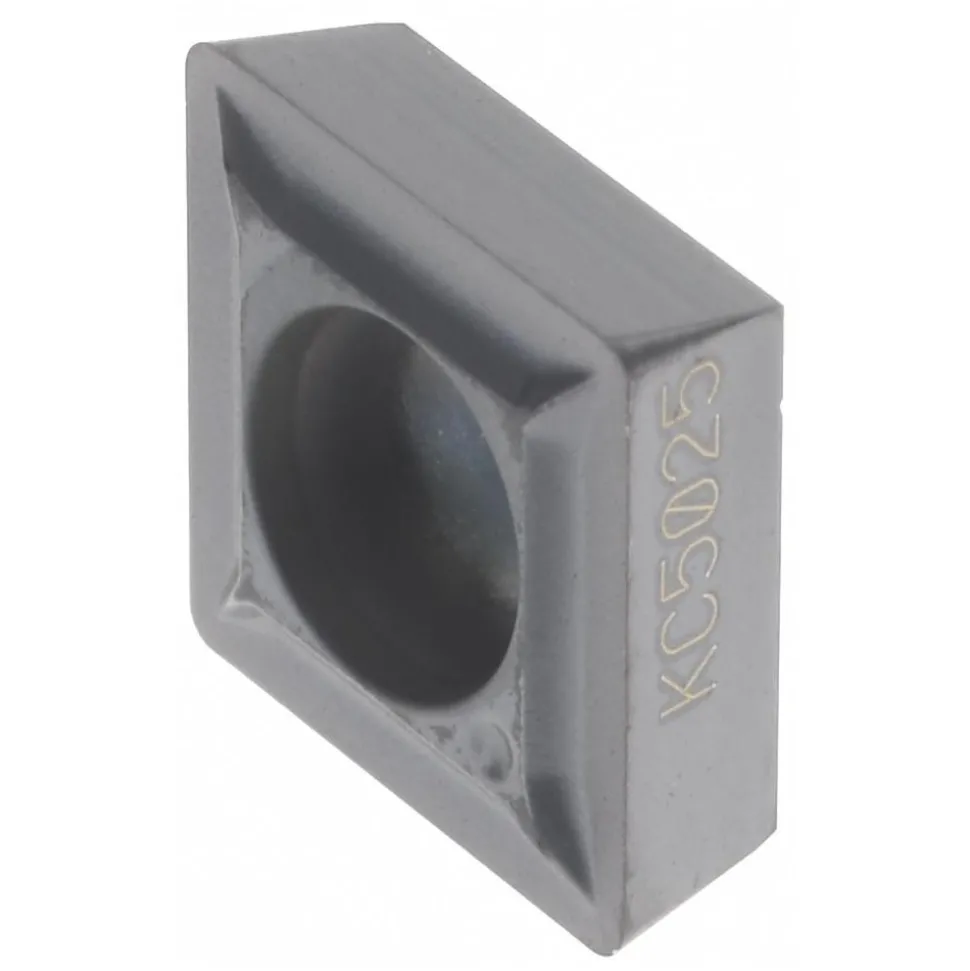

Turning Insert: CPGT2151LF KC5025, Carbide

Turning Insert: CPGT2151LF KC5025, Carbide

24,89 $

SKU: SKUL8OgJNV0Ld Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CPGT	ANSI Size Code: 21.51
ISO Size Code: 060204	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156	Insert Material: Carbide
Manufacturer Grade: KC5025	Coating/Finish: TiAlN
Relief Angle: 11.000	Wiper Edge: No
Insert Thickness (Inch): 3/32	Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral	Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing	Grade Characteristics: Aluminum & Non-Ferrous (N) – Moderate Wear-Resistance and Toughness; Steel (P) – Moderate Wear-Resistance and Toughness; Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1142	Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPGT21.51	ISO Insert Code: CPGT060204
Insert Holding Method: Screw	Width (Inch): 1/4
Clearance Code: P	Tolerance Code: G
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.2539	Insert Length (mm): 6.45
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium	Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: S	Standards: ISO; ANSI
Manufacturers Catalog Number: 1866619	Material Grade: C6; C2
Coating Classification: PVD	Chip Breaker: LF
Rake Angle: 5	Cutting Edge Style: Honed
Industry Standard Number: CPGT2151LF	Width (Decimal Inch – 4 Decimals): 0.2500
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Country of Origin: UNITED STATES
Insert Style: CPGT
ANSI Size Code: 21.51
ISO Size Code: 060204
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC5025
Coating/Finish: TiAlN
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing
Grade Characteristics: Aluminum & Non-Ferrous (N) – Moderate Wear-Resistance and Toughness; Steel (P) – Moderate Wear-Resistance and Toughness; Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1142
Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPGT21.51
ISO Insert Code: CPGT060204
Insert Holding Method: Screw
Width (Inch): 1/4
Clearance Code: P
Tolerance Code: G
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.2539
Insert Length (mm): 6.45
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: S
Standards: ISO; ANSI
Manufacturers Catalog Number: 1866619
Material Grade: C6; C2
Coating Classification: PVD
Chip Breaker: LF
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: CPGT2151LF
Width (Decimal Inch – 4 Decimals): 0.2500
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
