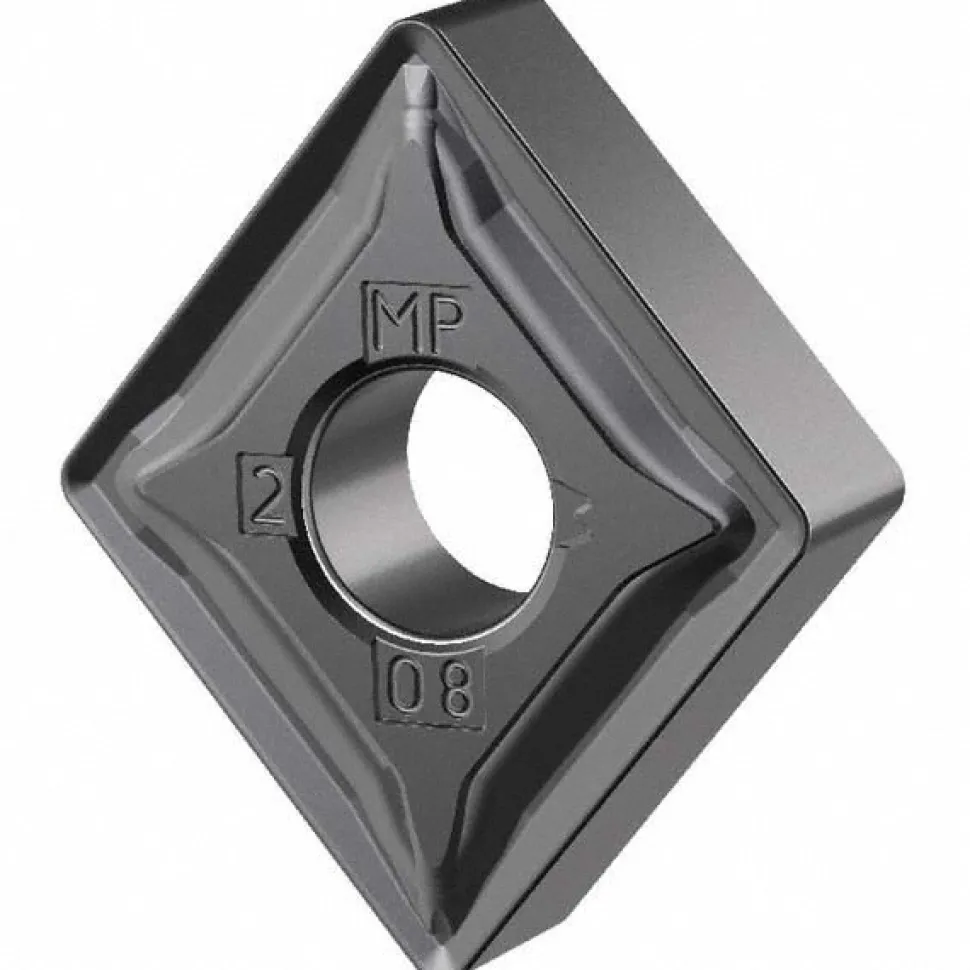

Turning Insert: CNMG432MP KCS10B, Carbide

Original price was: 30,00 $.Current price is: 22,89 $.

SKU: SKUcEAf1LwGSq Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CNMG	ANSI Size Code: 432
ISO Size Code: 120408	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: KCS10B	Coating/Finish: AlTiN
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral	Series: KENLOC
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031	Maximum Depth of Cut (Decimal Inch): 0.1691
ANSI Insert Code: CNMG432	ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp	Width (Inch): 1/2
Clearance Code: N	Tolerance Code: M
Coating Process: PVD	Rake: Negative
Insert Length (Decimal Inch): 0.5077	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium
Primary Workpiece Material Code: P; S; H; K; M; N	Iso Code: CNMG120408MP
Standards: ISO; ANSI	Manufacturers Catalog Number: 6687089
Material Grade: S10	Coating Classification: PVD
Chip Breaker: MP	Rake Angle: 6
Cutting Edge Style: Honed; Chamfered	Industry Standard Number: CNMG432MP
Width (Decimal Inch – 4 Decimals): 0.5000	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105	Country of Origin: China
Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KCS10B
Coating/Finish: AlTiN
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031
Maximum Depth of Cut (Decimal Inch): 0.1691
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Rake: Negative
Insert Length (Decimal Inch): 0.5077
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium
Primary Workpiece Material Code: P; S; H; K; M; N
Iso Code: CNMG120408MP
Standards: ISO; ANSI
Manufacturers Catalog Number: 6687089
Material Grade: S10
Coating Classification: PVD
Chip Breaker: MP
Rake Angle: 6
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: CNMG432MP
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: China
