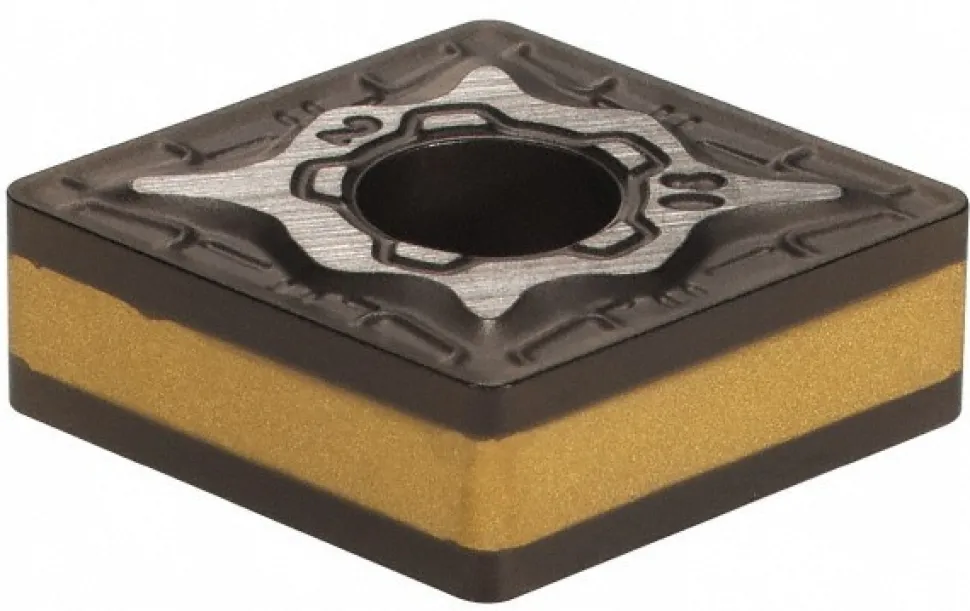

Turning Insert: CNMG432-M3P IC8150, Carbide

Turning Insert: CNMG432-M3P IC8150, Carbide

17,99 $

SKU: SKU6p1CBbXf19 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

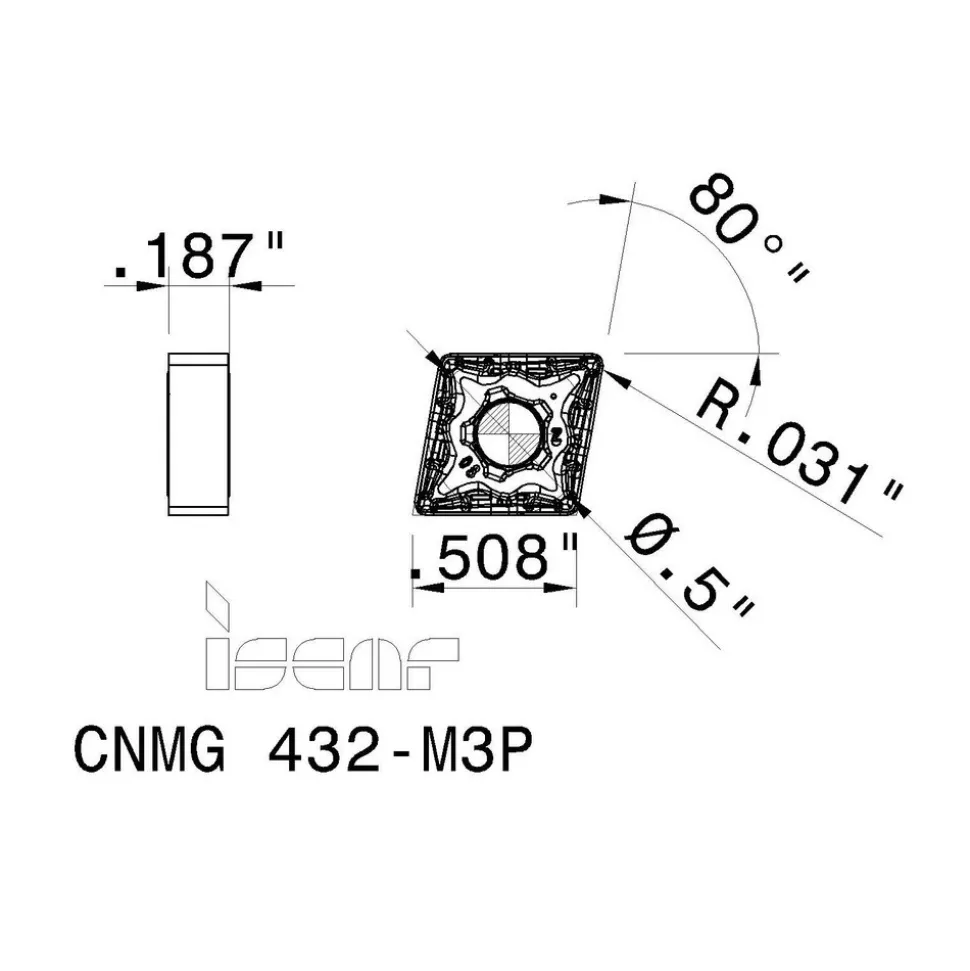

Insert Style: CNMG	ANSI Size Code: 432
ISO Size Code: 120408	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: IC8150	Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 0.000	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875	Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Hardened Materials (H) – High Wear-Resistance; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Maximum Depth of Cut (mm): 5.51
Maximum Depth of Cut (Decimal Inch): 0.2170	ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408	Insert Holding Method: Pin; Clamp
Clearance Code: N	Tolerance Code: M
Coating Process: CVD	Rake: Positive
Insert Length (Decimal Inch): 0.5080	Insert Length (mm): 12.90
Primary Workpiece Material: Cast Iron; Steel	Primary Workpiece Material Code: P; H; K
Iso Code: CNMG 432-M3P	Standards: ISO 13399
Chip Breaker: M3P	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing
UNSPSC Code: 23242105	Country of Origin: Israel
Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: IC8150
Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 0.000
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Hardened Materials (H) – High Wear-Resistance; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Maximum Depth of Cut (mm): 5.51
Maximum Depth of Cut (Decimal Inch): 0.2170
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Positive
Insert Length (Decimal Inch): 0.5080
Insert Length (mm): 12.90
Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; H; K
Iso Code: CNMG 432-M3P
Standards: ISO 13399
Chip Breaker: M3P
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing
UNSPSC Code: 23242105
Country of Origin: Israel
