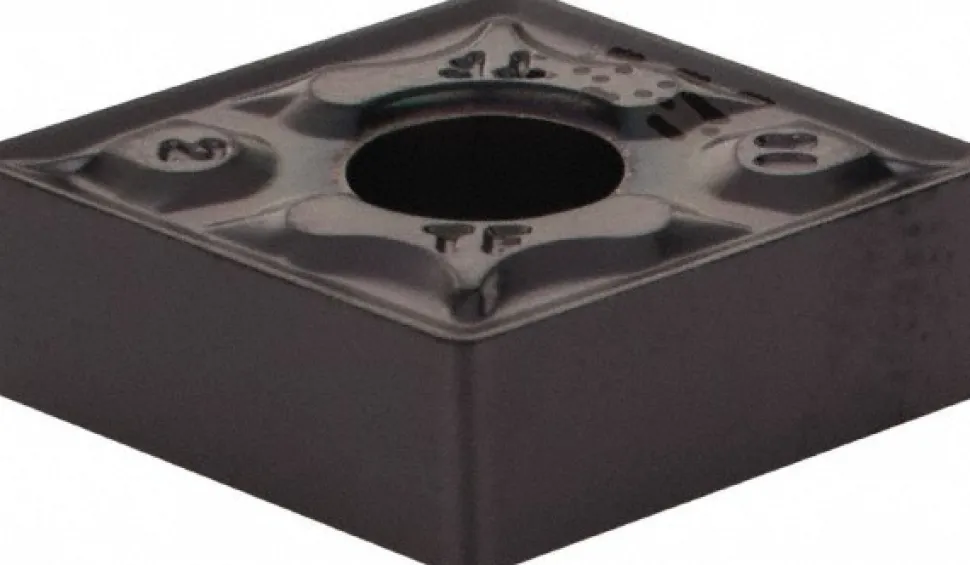

Turning Insert: CNMG 432-TF IC908, Carbide

Turning Insert: CNMG 432-TF IC908, Carbide

Original price was: 21,00 $.Current price is: 14,89 $.

SKU: SKUZ2NN6X5W6t Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

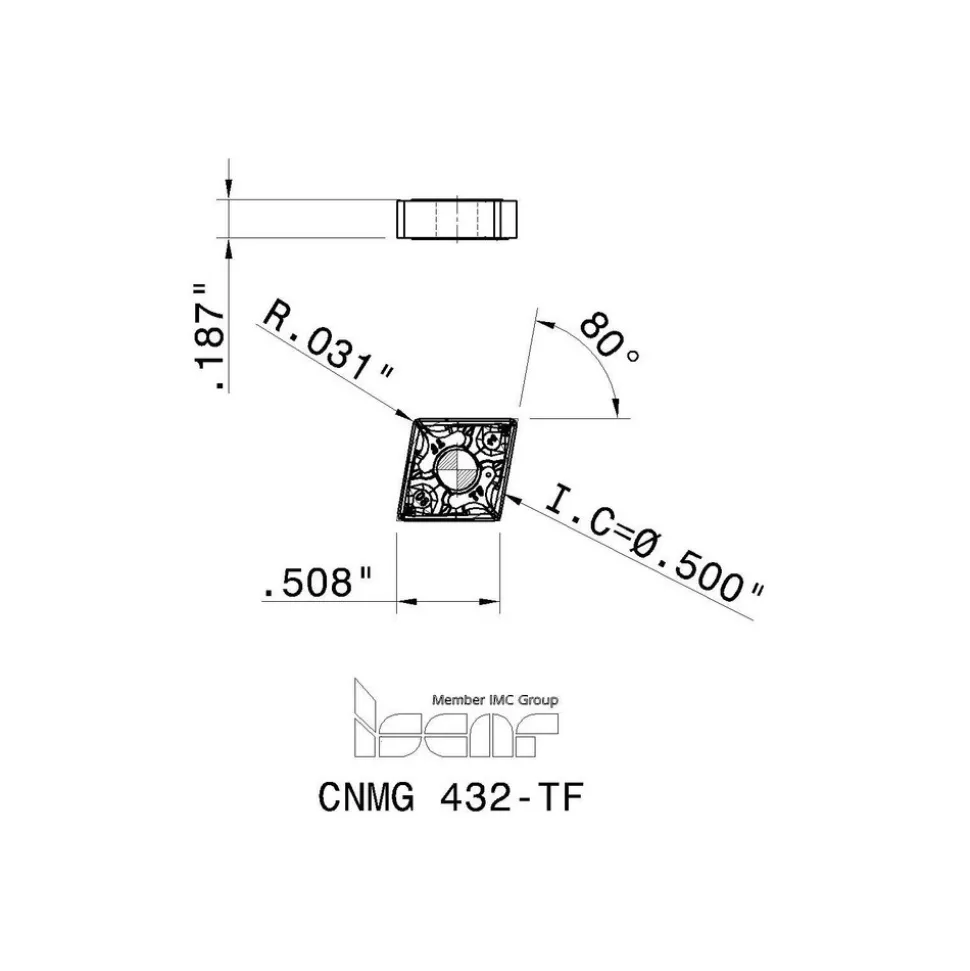

Insert Style: CNMG	ANSI Size Code: 432
ISO Size Code: 120408	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315	Insert Material: Carbide
Manufacturer Grade: IC908	Coating/Finish: TiAlN
Relief Angle: 0.000	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874	Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (mm): 4.00	Maximum Depth of Cut (Decimal Inch): 0.1575
ANSI Insert Code: CNMG432	ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp	Clearance Code: N
Tolerance Code: M	Coating Process: PVD
Rake: Positive	Insert Length (Decimal Inch): 0.5079
Insert Length (mm): 12.90	Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: S; H	Iso Code: ISO 13399
Standards: ISO 13399	Material Grade: C6; C7; C1; C2
Chip Breaker: TF	UNSPSC Code: 23242105
Country of Origin: Israel
Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: IC908
Coating/Finish: TiAlN
Relief Angle: 0.000
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (mm): 4.00
Maximum Depth of Cut (Decimal Inch): 0.1575
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.5079
Insert Length (mm): 12.90
Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: S; H
Iso Code: ISO 13399
Standards: ISO 13399
Material Grade: C6; C7; C1; C2
Chip Breaker: TF
UNSPSC Code: 23242105
Country of Origin: Israel
