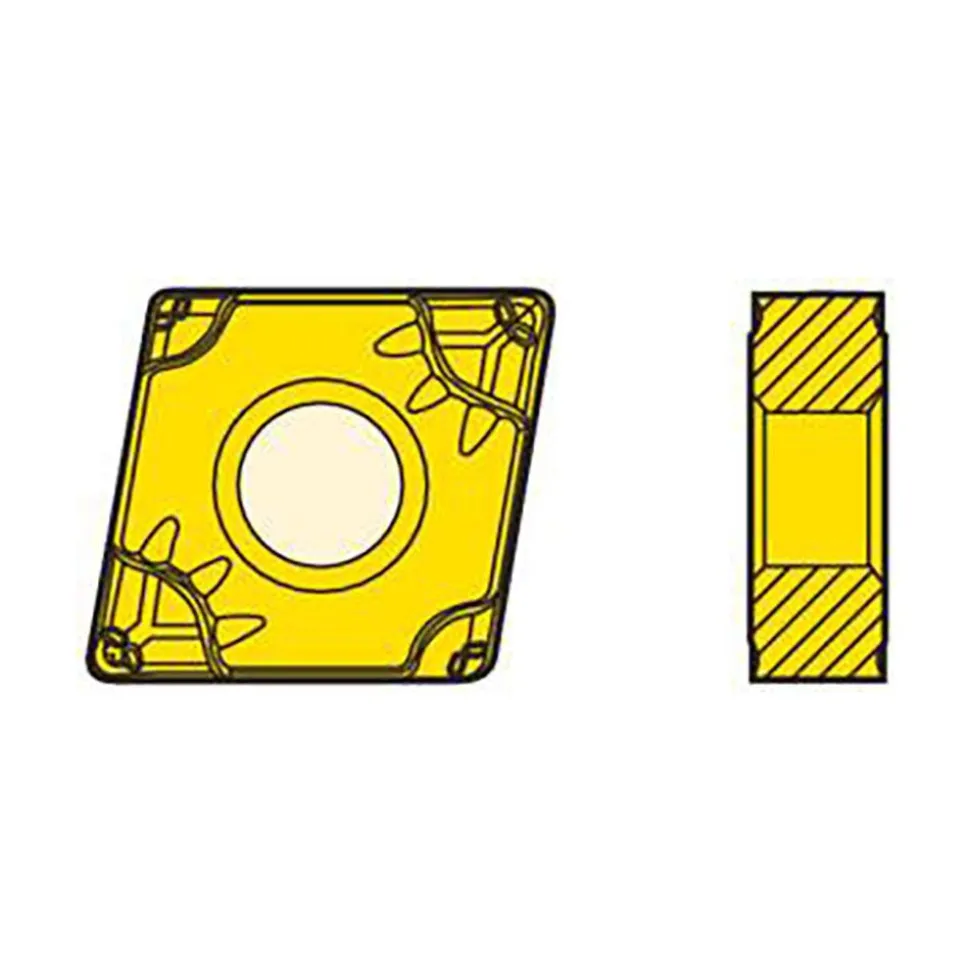

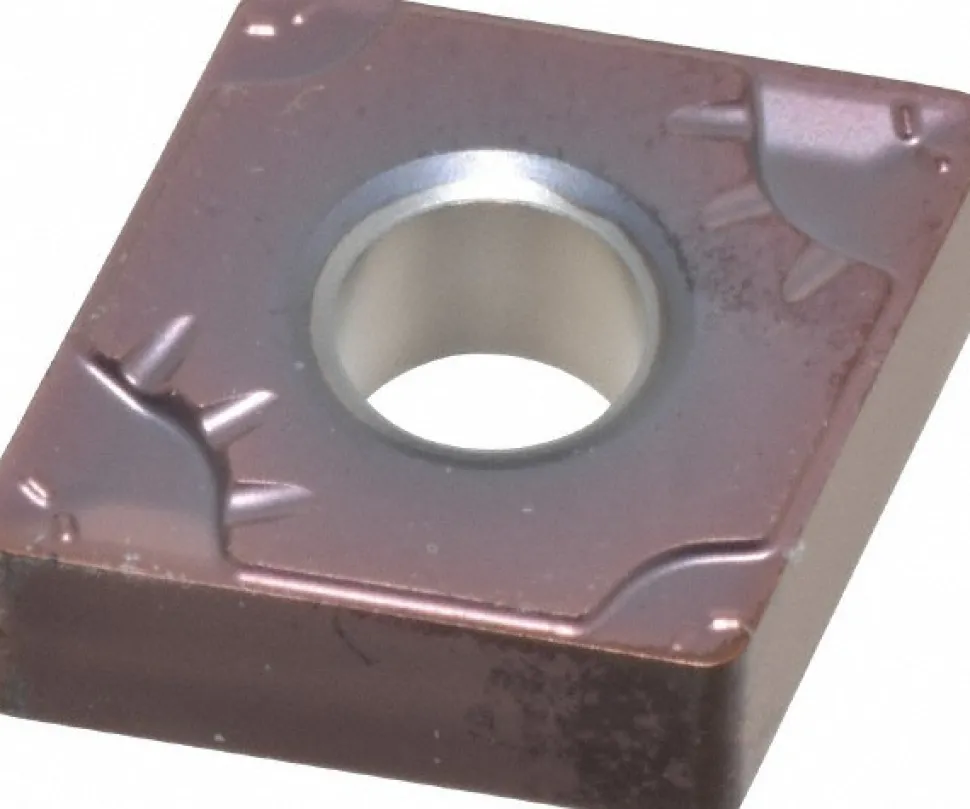

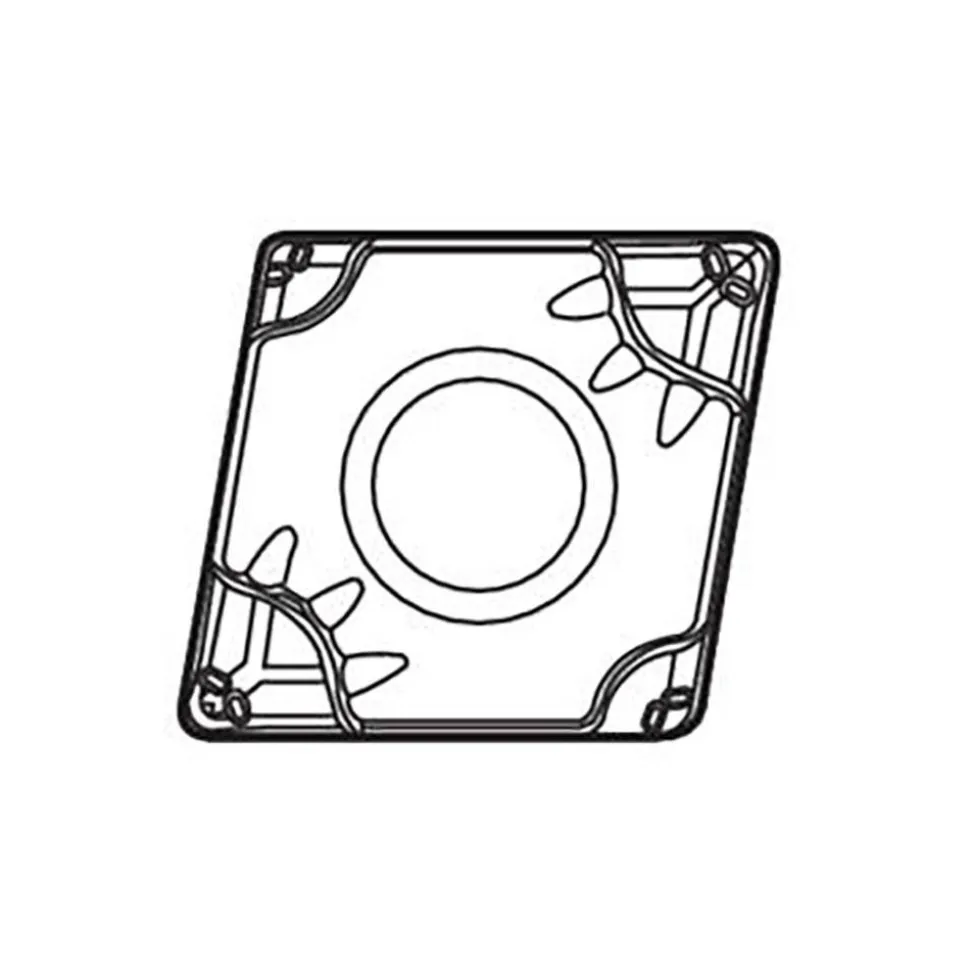

Turning Insert: CNMG 432-MF5 TH1000, Carbide
Original price was: 25,00 $.18,99 $Current price is: 18,99 $.
Specifications

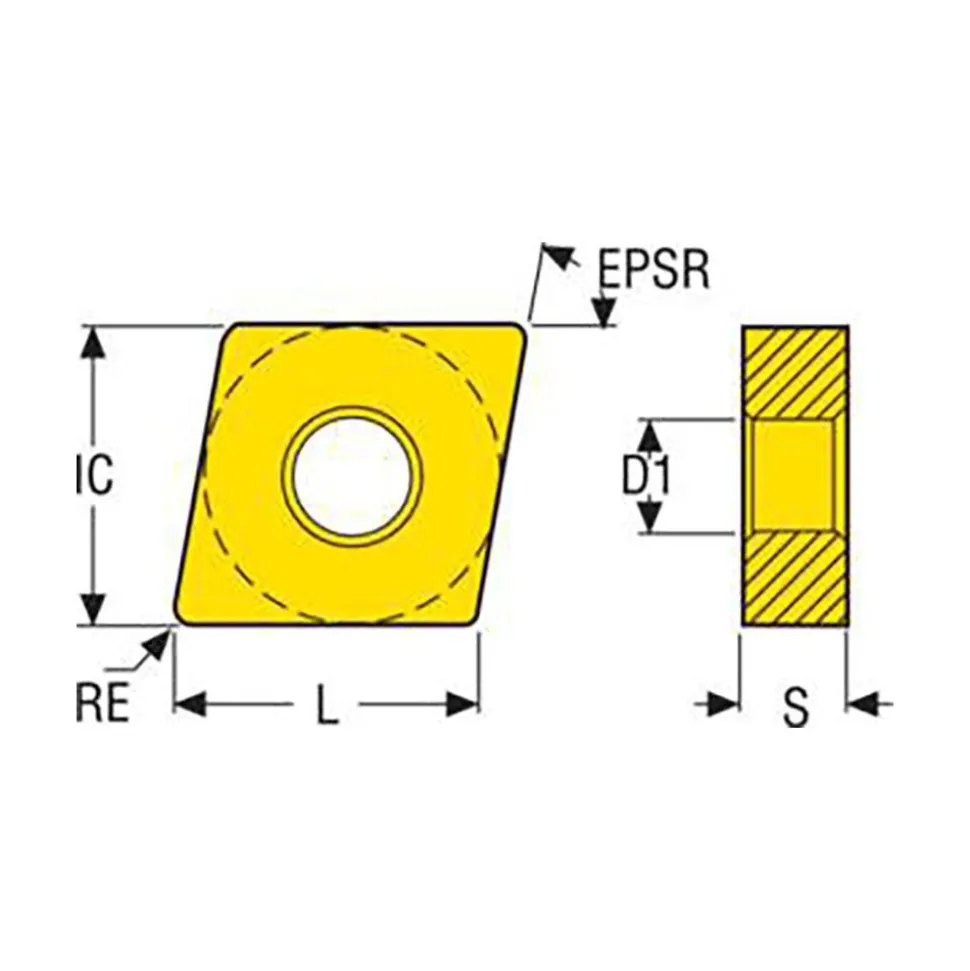

| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/32 | Corner Radius (Decimal Inch): 0.0315 |
| Insert Material: Carbide | Manufacturer Grade: TH1000 |
| Coating/Finish: TiAlSiN | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1874 | Insert Hand: Neutral |
| Series: CNMG-MF5 | Chip Breaker Operation: Medium Machining; Finishing |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance; Hardened Materials (H) – High Wear Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Negative |
| Number Of Cutting Edges: 4 | Hole Diameter (Decimal Inch): 0.2028 |
| Maximum Depth of Cut (Decimal Inch): 0.1063 | ANSI Insert Code: CNMG432 |
| ISO Insert Code: CNMG120408 | Insert Holding Method: Pin; Clamp; Lever Lock |
| Width (Inch): 1/2 | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Negative | Insert Length (Decimal Inch): 0.5079 |
| Primary Workpiece Material: Hard Material; Superalloys & Titanium | Primary Workpiece Material Code: S; H |
| Iso Code: CNMG120408-MF5 | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 02730814 | Material Grade: S05; H05 |
| Proprietary Coating Designation: Multilayer Coating | Lead Angle: 80.000 |
| Coating Classification: PVD | Chip Breaker: MF5 |
| Cutting Edge Style: Honed; Chamfered | Industry Standard Number: CNMG432-MF5 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Facing; Turning; Boring |
| UNSPSC Code: 23242105 | Country of Origin: Sweden |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Insert Material: Carbide | |
| Manufacturer Grade: TH1000 | |
| Coating/Finish: TiAlSiN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Insert Hand: Neutral | |
| Series: CNMG-MF5 | |
| Chip Breaker Operation: Medium Machining; Finishing | |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance; Hardened Materials (H) – High Wear Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2028 | |
| Maximum Depth of Cut (Decimal Inch): 0.1063 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp; Lever Lock | |
| Width (Inch): 1/2 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 0.5079 | |
| Primary Workpiece Material: Hard Material; Superalloys & Titanium | |
| Primary Workpiece Material Code: S; H | |
| Iso Code: CNMG120408-MF5 | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 02730814 | |
| Material Grade: S05; H05 | |
| Proprietary Coating Designation: Multilayer Coating | |
| Lead Angle: 80.000 | |
| Coating Classification: PVD | |
| Chip Breaker: MF5 | |
| Cutting Edge Style: Honed; Chamfered | |
| Industry Standard Number: CNMG432-MF5 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Sweden |
| MSC# | 84639947 |
| Mfr# | 02730814 |
| Big Book# | 760 |
