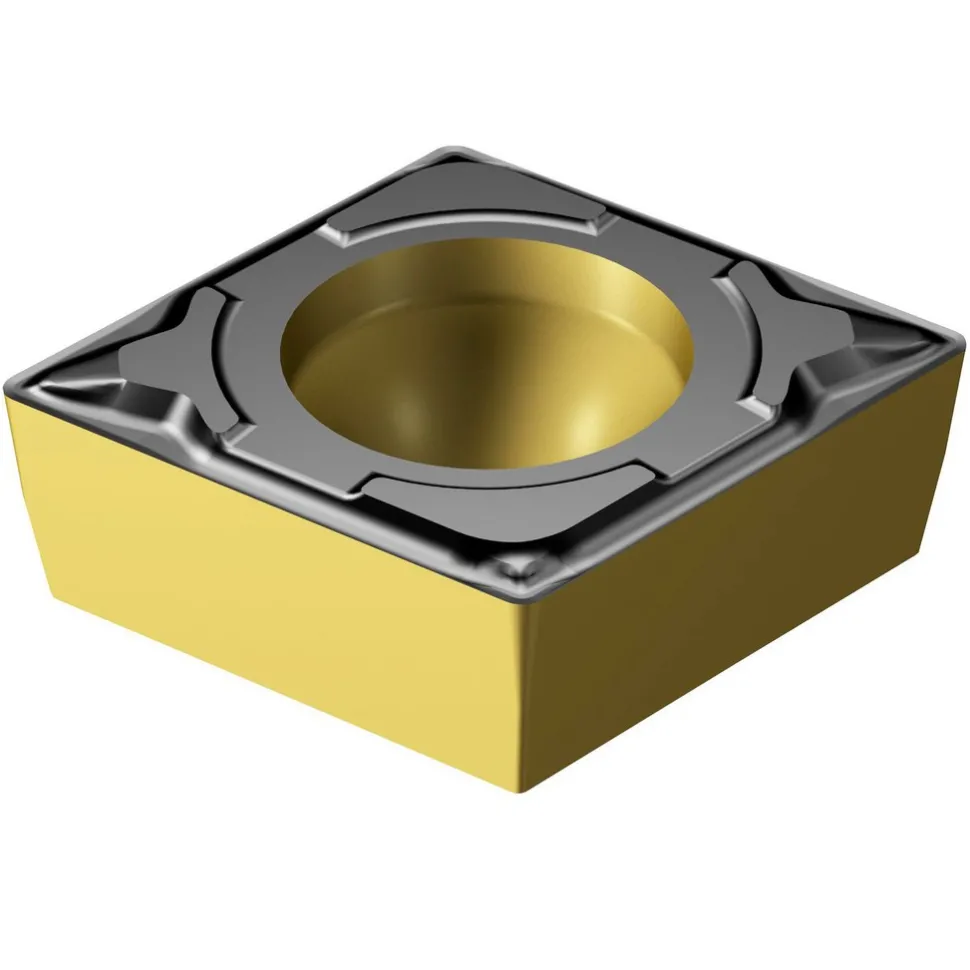

Turning Insert: CCMT32.50-PF 4425, Carbide

Turning Insert: CCMT32.50-PF 4425, Carbide

17,99 $

SKU: SKUGbMHMHYPVk Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

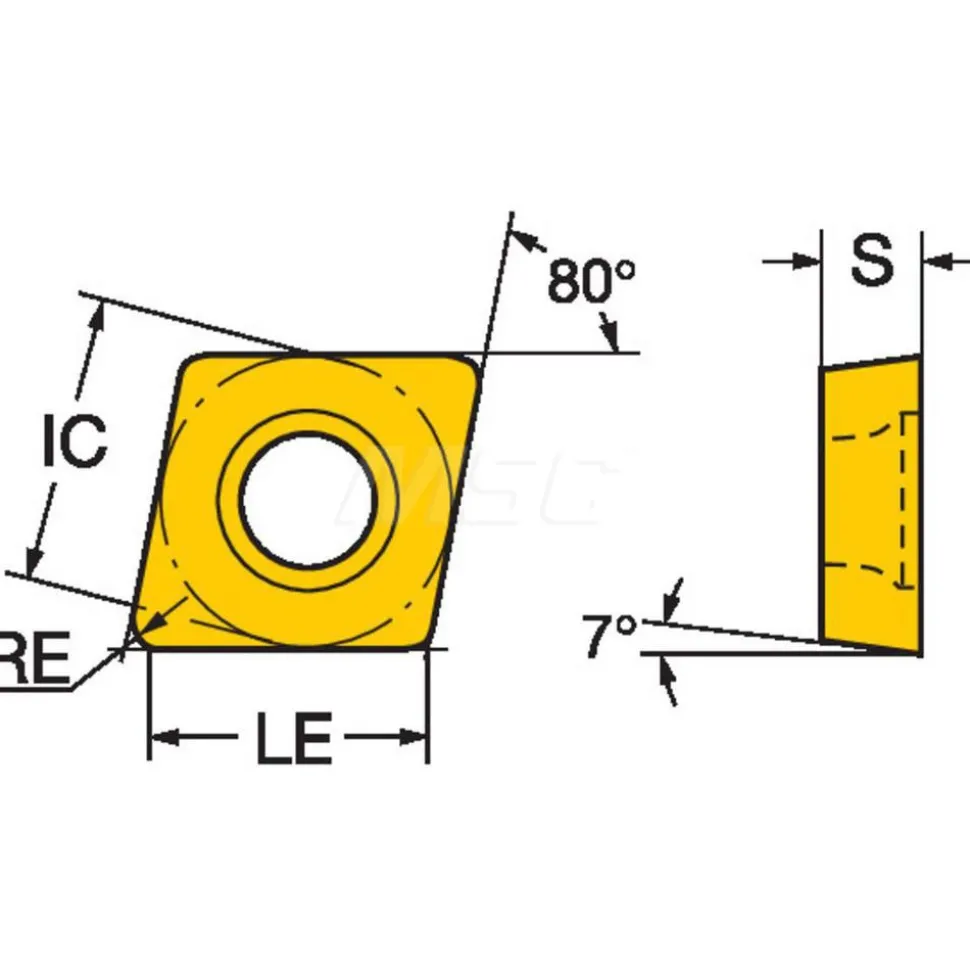

Insert Style: CCMT	ANSI Size Code: 32.50
ISO Size Code: 09T301	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Decimal Inch): 0.0079
Insert Material: Carbide	Manufacturer Grade: 4425
Coating/Finish: TiCN; TiN; Al2O3	Relief Angle: 7.000
Wiper Edge: No	Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563	Insert Hand: Neutral
Series: CoroTurn 107	Chip Breaker Operation: Finishing
Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Positive
Number Of Cutting Edges: 2	Hole Diameter (Decimal Inch): 0.1732
ANSI Insert Code: CCMT32.50	ISO Insert Code: CCMT09T301
Insert Holding Method: Screw; Clamp	Clearance Code: C
Tolerance Code: M	Coating Process: CVD
Primary Workpiece Material: Steel	Primary Workpiece Material Code: P
Secondary Workpiece Material: Cast Iron	Secondary Workpiece Material Code: K
Iso Code: CCMT 09 T3 02-PF 4425	Manufacturers Catalog Number: CCMT 3(2.5)0-PF
Chip Breaker: PF	Industry Standard Number: CCMT 09 T3 02-PF 4425
UNSPSC Code: 23242105	Country of Origin: Sweden
Insert Style: CCMT
ANSI Size Code: 32.50
ISO Size Code: 09T301
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Decimal Inch): 0.0079
Insert Material: Carbide
Manufacturer Grade: 4425
Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 7.000
Wiper Edge: No
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral
Series: CoroTurn 107
Chip Breaker Operation: Finishing
Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732
ANSI Insert Code: CCMT32.50
ISO Insert Code: CCMT09T301
Insert Holding Method: Screw; Clamp
Clearance Code: C
Tolerance Code: M
Coating Process: CVD
Primary Workpiece Material: Steel
Primary Workpiece Material Code: P
Secondary Workpiece Material: Cast Iron
Secondary Workpiece Material Code: K
Iso Code: CCMT 09 T3 02-PF 4425
Manufacturers Catalog Number: CCMT 3(2.5)0-PF
Chip Breaker: PF
Industry Standard Number: CCMT 09 T3 02-PF 4425
UNSPSC Code: 23242105
Country of Origin: Sweden
