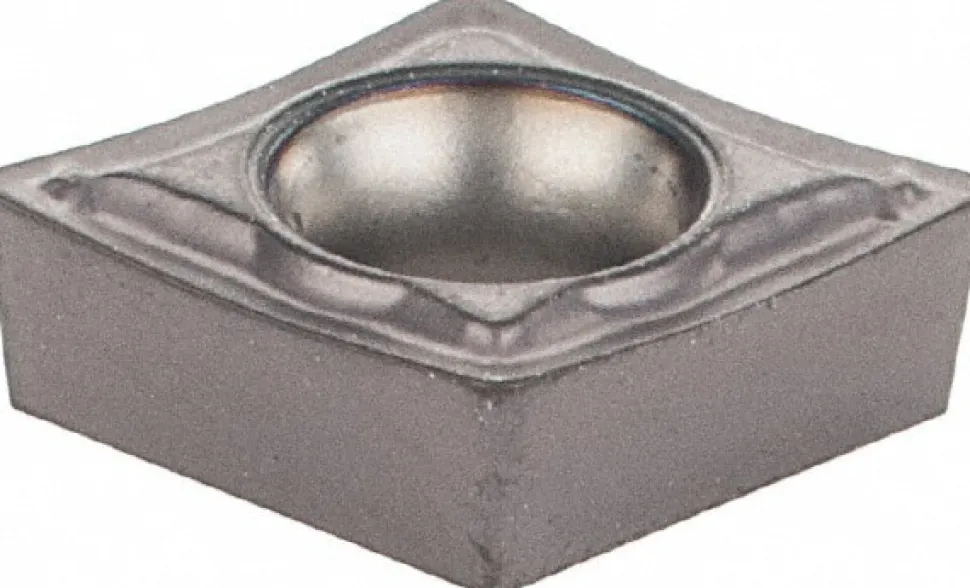

Turning Insert: CCMT2-1-SM IC907, Carbide

Turning Insert: CCMT2-1-SM IC907, Carbide

12,89 $

SKU: SKUfOV3iUaCle Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

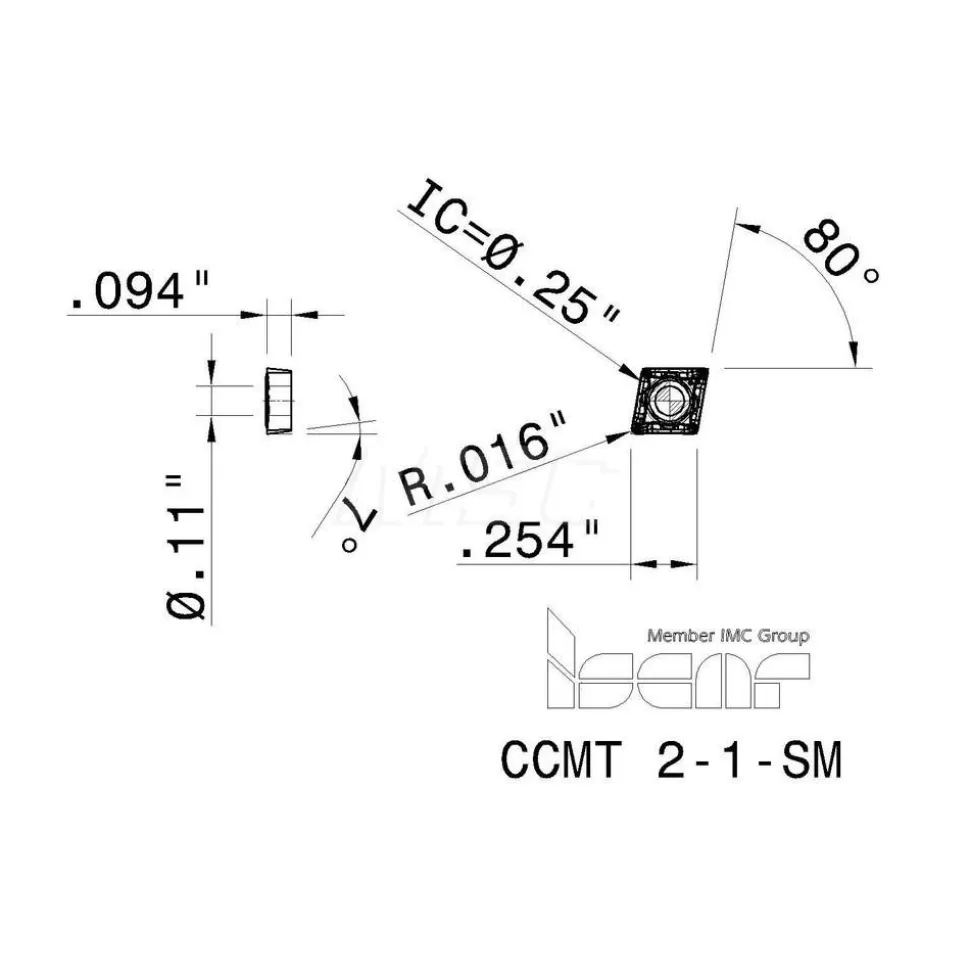

Insert Style: CCMT	ANSI Size Code: 2-1
ISO Size Code: 060204	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157	Insert Material: Carbide
Manufacturer Grade: IC907	Coating/Finish: TiN; TiAlN
Relief Angle: 7.000	Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938	Series: Isoturn
Chip Breaker Operation: Medium Machining; Finishing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Hole Diameter (Decimal Inch): 0.1102
Hole Diameter (mm): 2.80	Maximum Depth of Cut (mm): 2.50
Maximum Depth of Cut (Decimal Inch): 0.0984	ANSI Insert Code: CCMT2-1
ISO Insert Code: CCMT060204	Insert Holding Method: Screw
Clearance Code: C	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.2480	Insert Length (mm): 6.30
Primary Workpiece Material Code: P; S; K; M; N	Iso Code: CCMT21.51
Standards: ISO 13399	Material Grade: C7; C8
Chip Breaker: SM	UNSPSC Code: 23242105
Country of Origin: Israel
Insert Style: CCMT
ANSI Size Code: 2-1
ISO Size Code: 060204
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide
Manufacturer Grade: IC907
Coating/Finish: TiN; TiAlN
Relief Angle: 7.000
Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938
Series: Isoturn
Chip Breaker Operation: Medium Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1102
Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 2.50
Maximum Depth of Cut (Decimal Inch): 0.0984
ANSI Insert Code: CCMT2-1
ISO Insert Code: CCMT060204
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.2480
Insert Length (mm): 6.30
Primary Workpiece Material Code: P; S; K; M; N
Iso Code: CCMT21.51
Standards: ISO 13399
Material Grade: C7; C8
Chip Breaker: SM
UNSPSC Code: 23242105
Country of Origin: Israel
