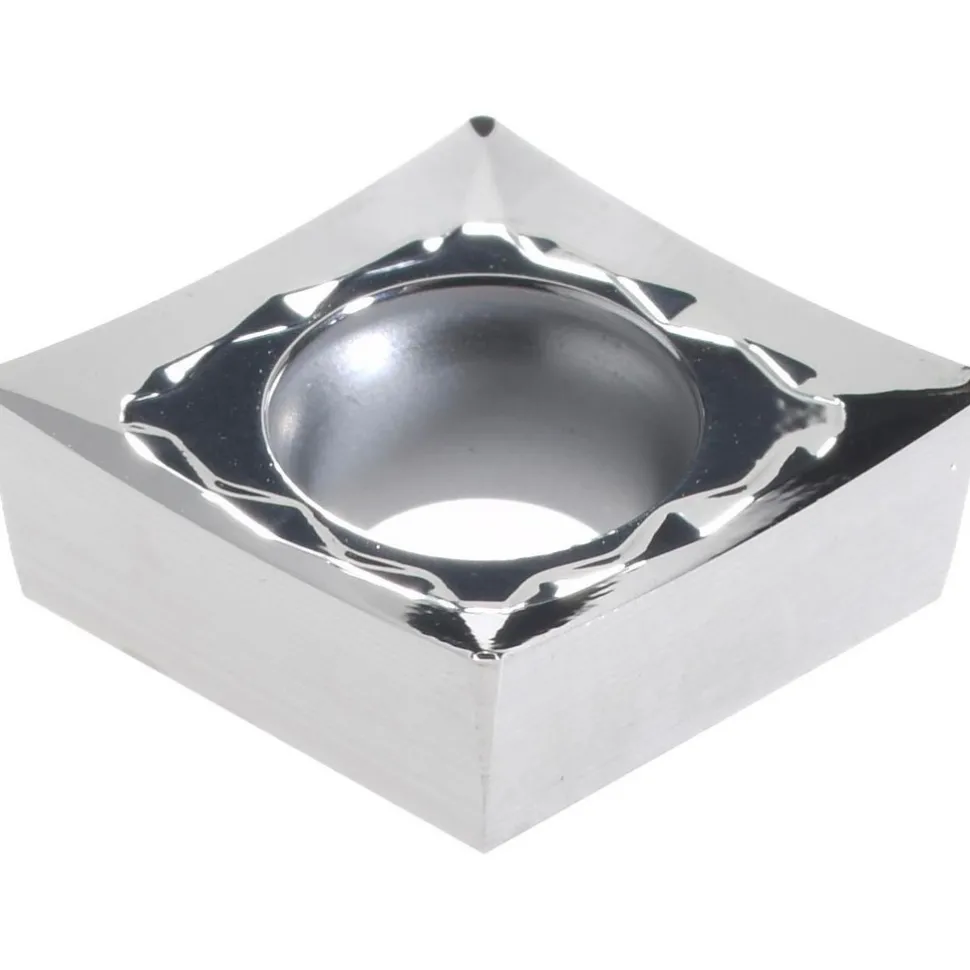

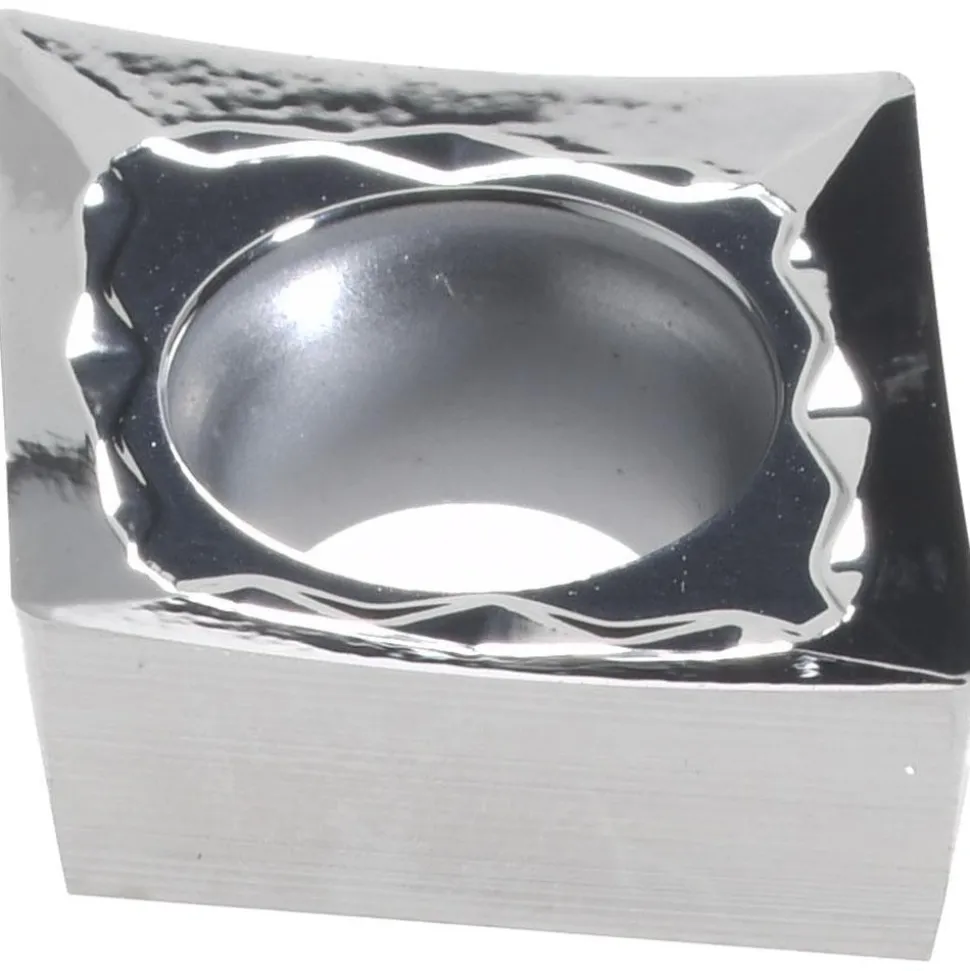

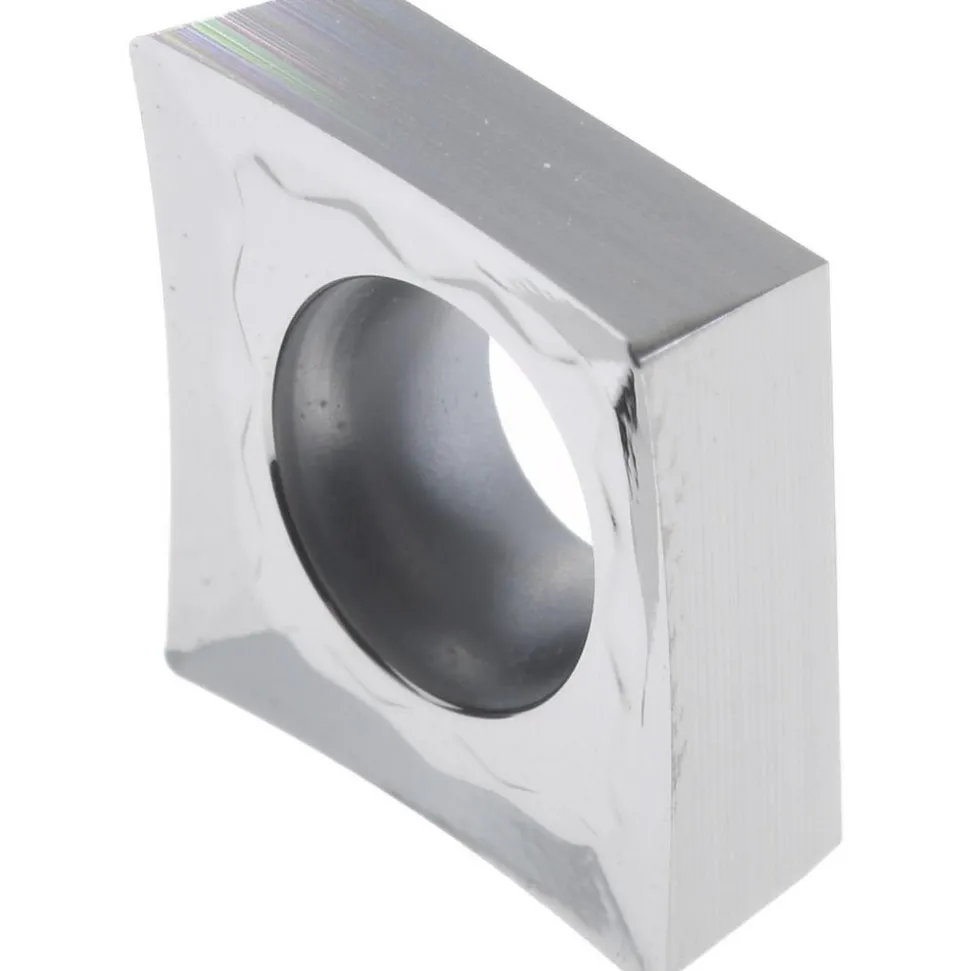

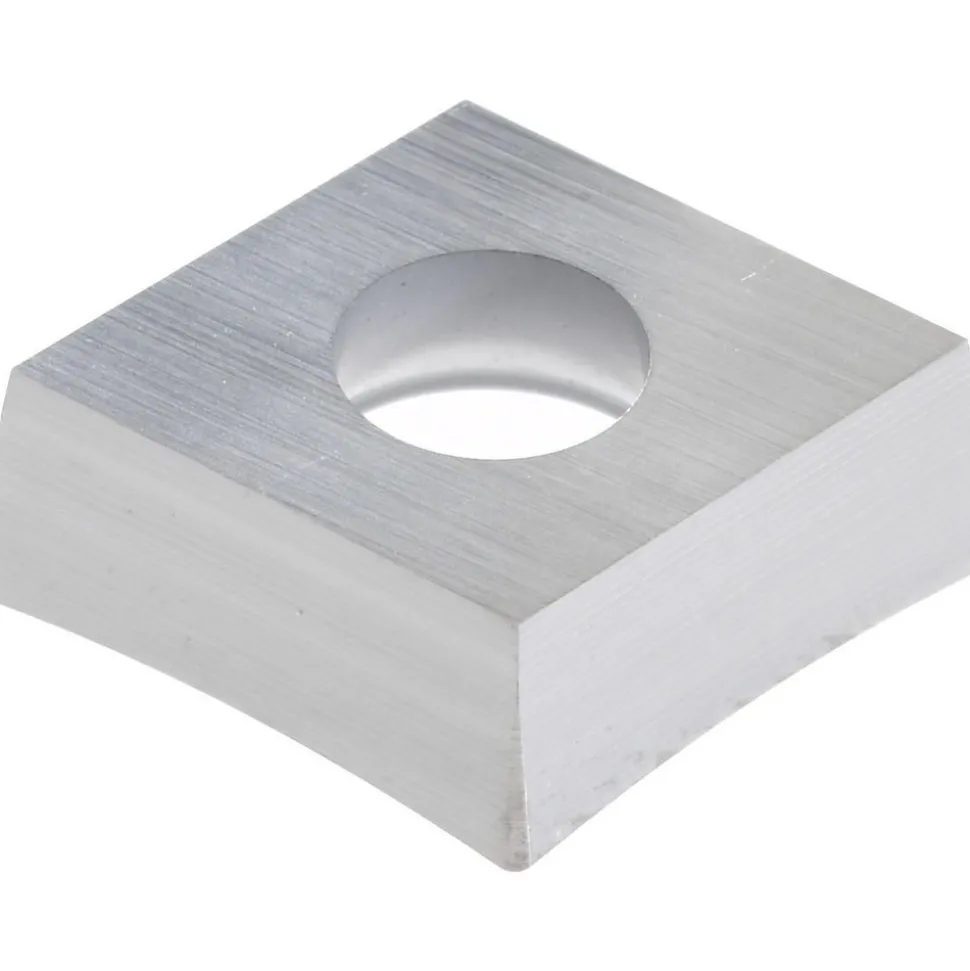

Turning Insert: CCGT 3-1-AS IC-20, Carbide

Turning Insert: CCGT 3-1-AS IC-20, Carbide

17,89 $

SKU: SKUnkdfBSktFJ Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Insert Style: CCGT	ANSI Size Code: 3-1
ISO Size Code: 09T304	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3752
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157	Insert Material: Carbide
Manufacturer Grade: IC20	Coating/Finish: Bright/Uncoated
Relief Angle: 7.000	Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563	Series: Isoturn
Chip Breaker Operation: Finishing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40	Maximum Depth of Cut (mm): 2.50
Maximum Depth of Cut (Decimal Inch): 0.0984	ANSI Insert Code: CCGT3-1
ISO Insert Code: CCGT09T304	Insert Holding Method: Screw
Clearance Code: C	Tolerance Code: G
Rake: Positive	Insert Length (Decimal Inch): 0.3819
Insert Length (mm): 9.70	Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: H; N	Iso Code: CCGT32.51
Standards: ISO 13399	Material Grade: C3; C2
Chip Breaker: AS	UNSPSC Code: 23242105
Country of Origin: South Korea
Insert Style: CCGT
ANSI Size Code: 3-1
ISO Size Code: 09T304
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3752
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0157
Insert Material: Carbide
Manufacturer Grade: IC20
Coating/Finish: Bright/Uncoated
Relief Angle: 7.000
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Series: Isoturn
Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 2.50
Maximum Depth of Cut (Decimal Inch): 0.0984
ANSI Insert Code: CCGT3-1
ISO Insert Code: CCGT09T304
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: G
Rake: Positive
Insert Length (Decimal Inch): 0.3819
Insert Length (mm): 9.70
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: H; N
Iso Code: CCGT32.51
Standards: ISO 13399
Material Grade: C3; C2
Chip Breaker: AS
UNSPSC Code: 23242105
Country of Origin: South Korea
