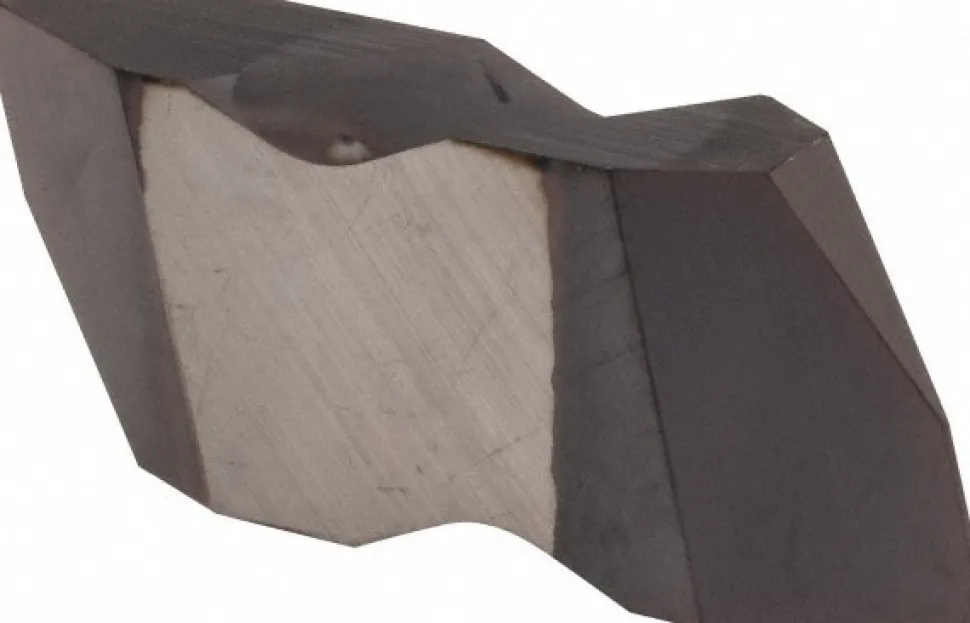

Threading Insert: NT3L KC5010, Carbide

Original price was: 38,00 $.Current price is: 28,89 $.

Specifications

Insert Style: NT	Insert Material: Carbide
Manufacturer Grade: KC5010	Material Grade: C3; C4
Thread Standard: Partial Profile 60 Degree	Insert Hand: Left Hand
Internal Pitch: 5 to 12 TPI; 2.00 to 5.00 mm	External Pitch: 1.25-4.00 mm; 6-20 TPI
Included Angle: 60.00	Series: Top Notch
Coating Process: PVD	Tip to Top of Insert (Decimal Inch): 0.0980
Tip to Top of Insert (mm): 2.49	Corner Radius (Decimal Inch): 0.0067
Corner Radius (mm): 0.17	Thickness (mm): 4.95
Insert Size: 3	Thickness (Decimal Inch – 4 Decimals): 0.1949
Finish Coating: TiAlN	Thread Type: Internal; External
UNSPSC Code: 23291804	Country of Origin: UNITED STATES
Insert Style: NT
Insert Material: Carbide
Manufacturer Grade: KC5010
Material Grade: C3; C4
Thread Standard: Partial Profile 60 Degree
Insert Hand: Left Hand
Internal Pitch: 5 to 12 TPI; 2.00 to 5.00 mm
External Pitch: 1.25-4.00 mm; 6-20 TPI
Included Angle: 60.00
Series: Top Notch
Coating Process: PVD
Tip to Top of Insert (Decimal Inch): 0.0980
Tip to Top of Insert (mm): 2.49
Corner Radius (Decimal Inch): 0.0067
Corner Radius (mm): 0.17
Thickness (mm): 4.95
Insert Size: 3
Thickness (Decimal Inch – 4 Decimals): 0.1949
Finish Coating: TiAlN
Thread Type: Internal; External
UNSPSC Code: 23291804
Country of Origin: UNITED STATES
