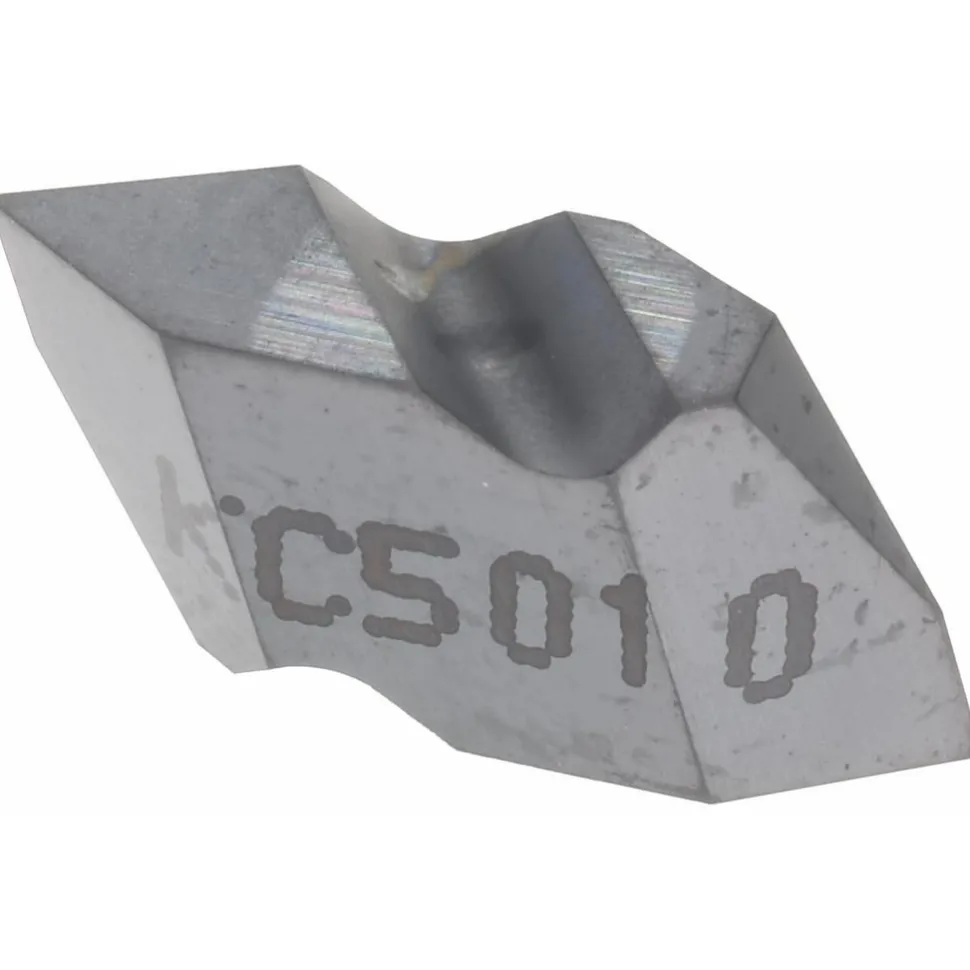

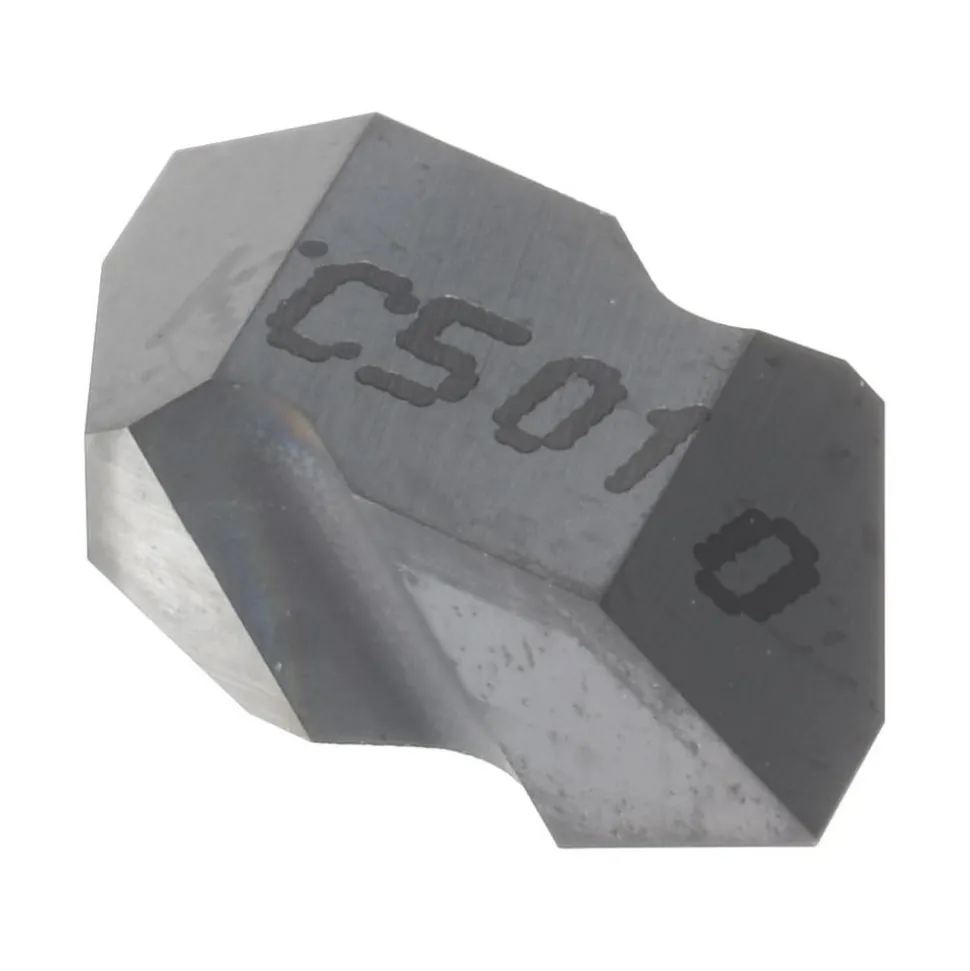

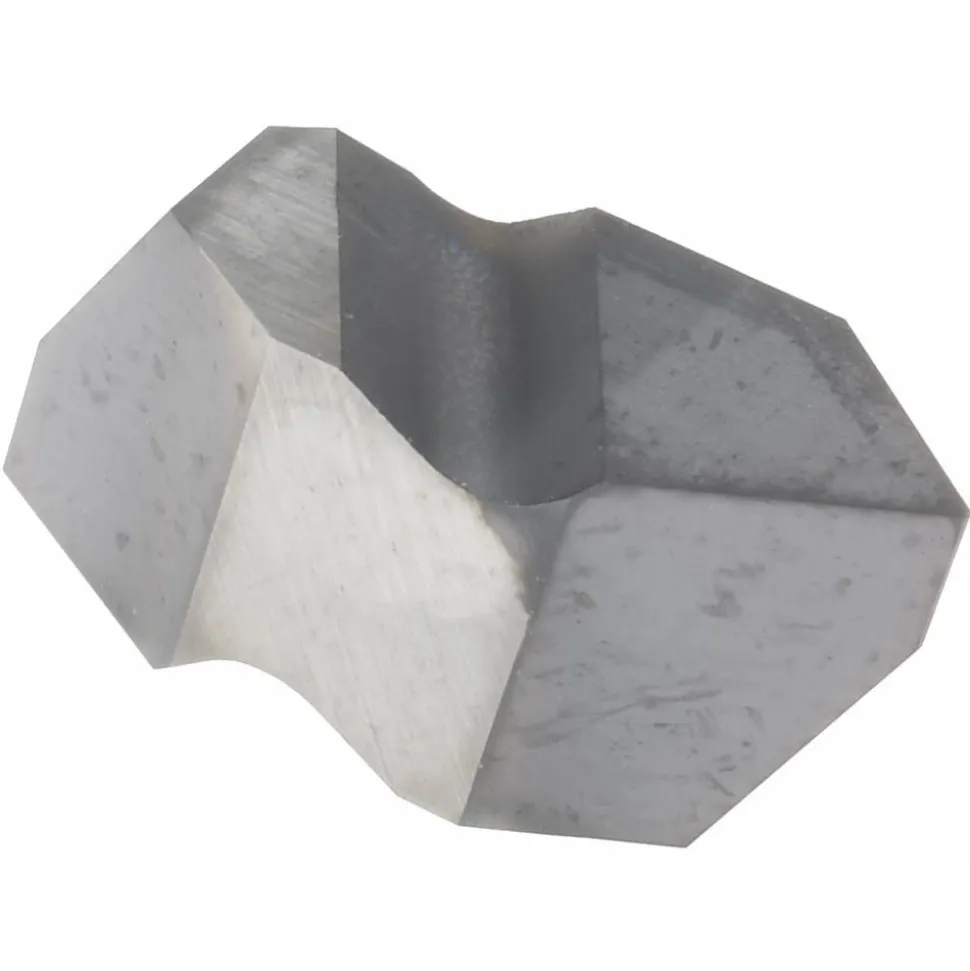

Threading Insert: NT2R KC5010, Carbide

Original price was: 35,00 $.Current price is: 26,99 $.

Specifications

Insert Style: NT	Insert Material: Carbide
Manufacturer Grade: KC5010	Material Grade: C3; C4
Thread Standard: Partial Profile 60 Degree	Insert Hand: Right Hand
Internal Pitch: 1.25 to 3.50 mm; 7 to 20 TPI	External Pitch: 0.70-3.00 mm; 8-36 TPI
Included Angle: 60.00	Series: Top Notch
Coating Process: PVD	Tip to Top of Insert (Decimal Inch): 0.0752
Tip to Top of Insert (mm): 1.91	Corner Radius (Decimal Inch): 0.0039
Corner Radius (mm): 0.10	Thickness (mm): 3.81
Insert Size: 2	Thickness (Decimal Inch – 4 Decimals): 0.1500
Finish Coating: TiAlN	Thread Type: Internal; External
UNSPSC Code: 23291804	Country of Origin: UNITED STATES
Insert Style: NT
Insert Material: Carbide
Manufacturer Grade: KC5010
Material Grade: C3; C4
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Internal Pitch: 1.25 to 3.50 mm; 7 to 20 TPI
External Pitch: 0.70-3.00 mm; 8-36 TPI
Included Angle: 60.00
Series: Top Notch
Coating Process: PVD
Tip to Top of Insert (Decimal Inch): 0.0752
Tip to Top of Insert (mm): 1.91
Corner Radius (Decimal Inch): 0.0039
Corner Radius (mm): 0.10
Thickness (mm): 3.81
Insert Size: 2
Thickness (Decimal Inch – 4 Decimals): 0.1500
Finish Coating: TiAlN
Thread Type: Internal; External
UNSPSC Code: 23291804
Country of Origin: UNITED STATES
