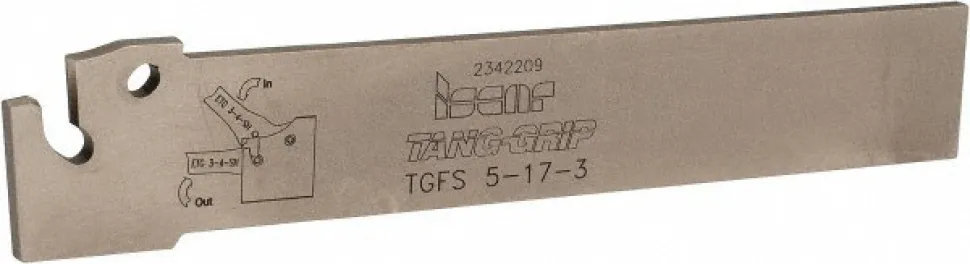

TGFS Single End Neutral Indexable Cutoff Blade
Original price was: 168,00 $.107,89 $Current price is: 107,89 $.
Specifications
| End Type: Single | Cutting Direction: Neutral |
| Blade Height (mm): 17.40 | Blade Height (Decimal Inch): 0.6850 |
| Blade Width (Decimal Inch): 0.1000 | Blade Width (mm): 2.50 |
| Blade Overall Length (Decimal Inch): 4.3310 | Blade Overall Length (mm): 110.00 |
| Blade Style: TGFS | Compatible Insert Style: TAG |
| Compatible Insert Size Code: 3 | Insert Holding Method: Clamp |
| Maximum Workpiece Diameter (Decimal Inch): 2.3600 | Series: Tang-Grip |
| Insert Style: TAG 3.. | Cutting Tool Application: Grooving; Turning; Parting |
| Insert Width (mm): 2.80 | Standards: ISO 13399 |
| Insert Seat Size: 2.5 | Cutting Height (mm): 17.50 |
| Cutting Height (Decimal Inch): 0.6890 | Minimum Insert Width (Decimal Inch): 0.1102 |
| Minimum Insert Width (mm): 2.80 | Maximum Insert Width (mm): 3.50 |
| Maximum Insert Width (Decimal Inch): 0.1378 | Complete Insert Compatibility: TAG N3LF; TAG N3W; TAG L3J-15D; TAG R3J-6D; TAG L3J-6D; TAG N3M; TAG N3CB; TAG N3UT; TAG L3JS-6D; TAG R3C-6D; TAG N3J; TAG N3JT; TAG R3C-8D; TAG N3JS; TAG R3C-15D; TAG N3C; TAG L3C-6D; TAG N3A; TAG R3JS-6D; TAG L3C-15D |
| Manufacturers Catalog Number: TGFS 5-17-3 | Insert Width: 0.1102 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Single | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 17.40 | |
| Blade Height (Decimal Inch): 0.6850 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Blade Width (mm): 2.50 | |
| Blade Overall Length (Decimal Inch): 4.3310 | |
| Blade Overall Length (mm): 110.00 | |
| Blade Style: TGFS | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 3 | |
| Insert Holding Method: Clamp | |
| Maximum Workpiece Diameter (Decimal Inch): 2.3600 | |
| Series: Tang-Grip | |
| Insert Style: TAG 3.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 2.80 | |
| Standards: ISO 13399 | |
| Insert Seat Size: 2.5 | |
| Cutting Height (mm): 17.50 | |
| Cutting Height (Decimal Inch): 0.6890 | |
| Minimum Insert Width (Decimal Inch): 0.1102 | |
| Minimum Insert Width (mm): 2.80 | |
| Maximum Insert Width (mm): 3.50 | |
| Maximum Insert Width (Decimal Inch): 0.1378 | |
| Complete Insert Compatibility: TAG N3LF; TAG N3W; TAG L3J-15D; TAG R3J-6D; TAG L3J-6D; TAG N3M; TAG N3CB; TAG N3UT; TAG L3JS-6D; TAG R3C-6D; TAG N3J; TAG N3JT; TAG R3C-8D; TAG N3JS; TAG R3C-15D; TAG N3C; TAG L3C-6D; TAG N3A; TAG R3JS-6D; TAG L3C-15D | |
| Manufacturers Catalog Number: TGFS 5-17-3 | |
| Insert Width: 0.1102 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 00520767 |
| Mfr# | 2301918 |
| Big Book# | 897 |
