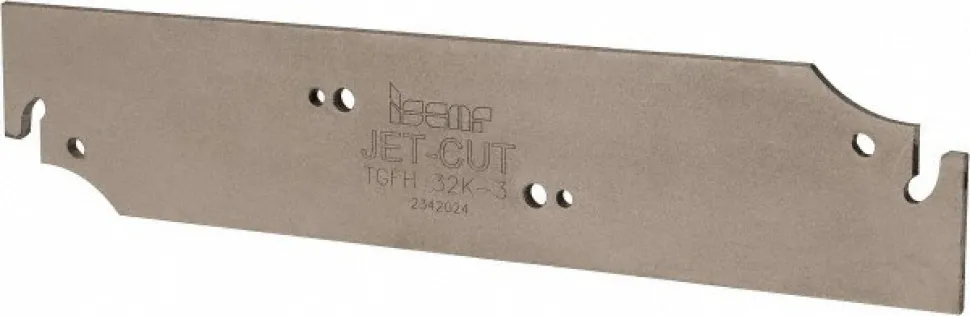

TGFH Single End Neutral Indexable Cutoff Blade
134,99 $
Specifications
| End Type: Single | Cutting Direction: Neutral |
| Blade Height (mm): 32.00 | Blade Height (Decimal Inch): 1.2600 |
| Blade Width (Decimal Inch): 0.1000 | Blade Width (mm): 2.50 |
| Blade Overall Length (Decimal Inch): 5.9060 | Blade Overall Length (mm): 150.00 |
| Blade Style: TGFH | Compatible Insert Style: TAG |
| Compatible Insert Size Code: 3 | Insert Holding Method: Clamp |
| Maximum Workpiece Diameter (Decimal Inch): 3.9400 | Series: Tang-Grip |
| Insert Style: TAG 3.. | Cutting Tool Application: Grooving; Turning; Parting |
| Insert Width (mm): 2.80 | Standards: ISO 13399 |
| Insert Seat Size: 2.5 | Cutting Height (mm): 24.80 |
| Cutting Height (Decimal Inch): 0.9764 | Minimum Insert Width (Decimal Inch): 0.1102 |
| Minimum Insert Width (mm): 2.80 | Maximum Insert Width (mm): 3.50 |
| Maximum Insert Width (Decimal Inch): 0.1378 | Complete Insert Compatibility: TAG N3LF; TAG N3W; TAG L3J-15D; TAG R3J-6D; TAG L3J-6D; TAG N3M; TAG N3CB; TAG N3UT; TAG L3JS-6D; TAG R3C-6D; TAG N3J; TAG N3JT; TAG R3C-8D; TAG N3JS; TAG R3C-15D; TAG N3C; TAG L3C-6D; TAG N3A; TAG R3JS-6D; TAG L3C-15D |
| Complete Tool Block/Toolholder Style Compatibility: C..TBK..,HS..TBK..,IM..TBK..,SGT.. | Manufacturers Catalog Number: TGFH 32K-3 |
| Insert Width: 0.1102 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Single | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2600 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Blade Width (mm): 2.50 | |
| Blade Overall Length (Decimal Inch): 5.9060 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: TGFH | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 3 | |
| Insert Holding Method: Clamp | |
| Maximum Workpiece Diameter (Decimal Inch): 3.9400 | |
| Series: Tang-Grip | |
| Insert Style: TAG 3.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 2.80 | |
| Standards: ISO 13399 | |
| Insert Seat Size: 2.5 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.1102 | |
| Minimum Insert Width (mm): 2.80 | |
| Maximum Insert Width (mm): 3.50 | |
| Maximum Insert Width (Decimal Inch): 0.1378 | |
| Complete Insert Compatibility: TAG N3LF; TAG N3W; TAG L3J-15D; TAG R3J-6D; TAG L3J-6D; TAG N3M; TAG N3CB; TAG N3UT; TAG L3JS-6D; TAG R3C-6D; TAG N3J; TAG N3JT; TAG R3C-8D; TAG N3JS; TAG R3C-15D; TAG N3C; TAG L3C-6D; TAG N3A; TAG R3JS-6D; TAG L3C-15D | |
| Complete Tool Block/Toolholder Style Compatibility: C..TBK..,HS..TBK..,IM..TBK..,SGT.. | |
| Manufacturers Catalog Number: TGFH 32K-3 | |
| Insert Width: 0.1102 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 45371226 |
| Mfr# | 2302374 |
| Big Book# | 897 |
