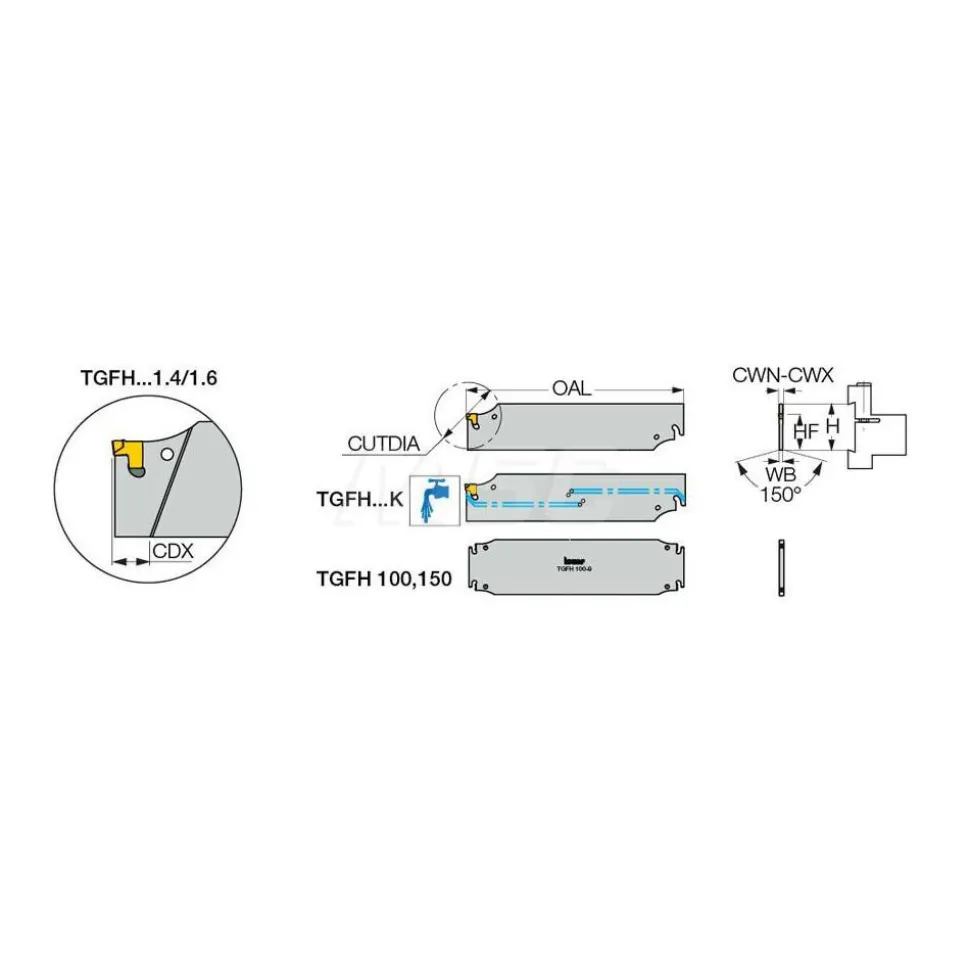

TGFH Single End Neutral Indexable Cutoff Blade
Original price was: 149,00 $.99,99 $Current price is: 99,99 $.
Specifications
| End Type: Single | Cutting Direction: Neutral |
| Blade Height (mm): 26.00 | Blade Height (Decimal Inch): 1.0236 |
| Blade Width (Decimal Inch): 0.0700 | Blade Width (mm): 1.65 |
| Blade Overall Length (Decimal Inch): 4.3307 | Blade Overall Length (mm): 110.00 |
| Blade Style: TGFH | Compatible Insert Style: TAG |
| Compatible Insert Size Code: 2 | Insert Holding Method: Self Grip |
| Maximum Workpiece Diameter (Decimal Inch): 1.9685 | Series: Tang-Grip; Sumo-Grip |
| Tool Block Style: UBHCR/L; SGTBR/L; SGTBU/SGTBN | Insert Style: TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-MF; TAG N-LF; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C |
| Cutting Tool Application: Grooving; Turning; Parting | Insert Width (mm): 1.80 |
| Standards: ISO 13399 | Cutting Height (mm): 21.40 |
| Cutting Height (Decimal Inch): 0.8425 | Minimum Insert Width (Decimal Inch): 0.0709 |
| Minimum Insert Width (mm): 1.80 | Maximum Insert Width (mm): 2.40 |
| Maximum Insert Width (Decimal Inch): 0.0945 | Complete Insert Compatibility: TAG L2JS-6D; TAG N2LF; TAG R2J-6D; TAG N2MF; TAG L2J-15D; TAG R2JS-6D; TAG N2A; TAG L2J-6D; TAG N2UT |
| Complete Tool Block/Toolholder Style Compatibility: UBHCR 19-26; SGTBL 25-6; SGTBU 16-5G; UBHCL 19-26; SGTBU 25.4-5G; SGTBU 19-5G; SGTBR 25-6 | Insert Width: 0.0709 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Single | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 26.00 | |
| Blade Height (Decimal Inch): 1.0236 | |
| Blade Width (Decimal Inch): 0.0700 | |
| Blade Width (mm): 1.65 | |
| Blade Overall Length (Decimal Inch): 4.3307 | |
| Blade Overall Length (mm): 110.00 | |
| Blade Style: TGFH | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 2 | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 1.9685 | |
| Series: Tang-Grip; Sumo-Grip | |
| Tool Block Style: UBHCR/L; SGTBR/L; SGTBU/SGTBN | |
| Insert Style: TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-MF; TAG N-LF; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 1.80 | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 21.40 | |
| Cutting Height (Decimal Inch): 0.8425 | |
| Minimum Insert Width (Decimal Inch): 0.0709 | |
| Minimum Insert Width (mm): 1.80 | |
| Maximum Insert Width (mm): 2.40 | |
| Maximum Insert Width (Decimal Inch): 0.0945 | |
| Complete Insert Compatibility: TAG L2JS-6D; TAG N2LF; TAG R2J-6D; TAG N2MF; TAG L2J-15D; TAG R2JS-6D; TAG N2A; TAG L2J-6D; TAG N2UT | |
| Complete Tool Block/Toolholder Style Compatibility: UBHCR 19-26; SGTBL 25-6; SGTBU 16-5G; UBHCL 19-26; SGTBU 25.4-5G; SGTBU 19-5G; SGTBR 25-6 | |
| Insert Width: 0.0709 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 59790873 |
| Mfr# | 2301860 |
