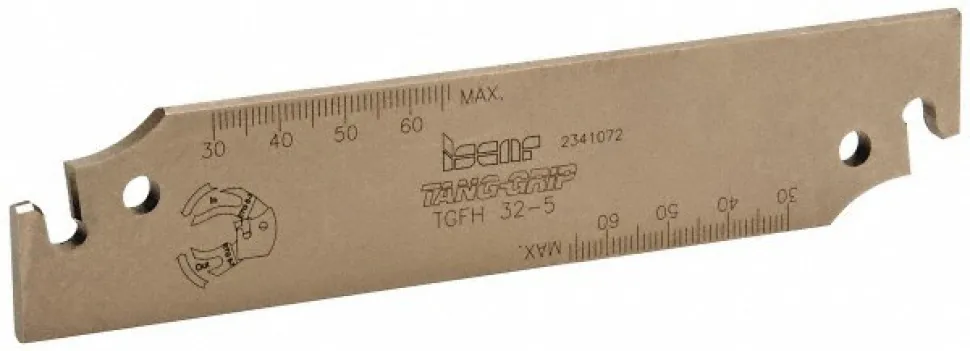

TGFH Single End Neutral Indexable Cutoff Blade
107,99 $
Specifications
| End Type: Single | Cutting Direction: Neutral |
| Blade Height (mm): 32.00 | Blade Height (Decimal Inch): 1.2600 |
| Blade Width (Decimal Inch): 0.1600 | Blade Width (mm): 4.00 |
| Blade Overall Length (Decimal Inch): 5.9060 | Blade Overall Length (mm): 150.00 |
| Blade Style: TGFH | Compatible Insert Style: TAG |
| Compatible Insert Size Code: 5 | Insert Holding Method: Clamp |
| Maximum Workpiece Diameter (Decimal Inch): 4.7200 | Series: Tang-Grip |
| Insert Style: TAG 5.. | Cutting Tool Application: Grooving; Turning; Parting |
| Insert Width (mm): 4.70 | Standards: ISO 13399 |
| Insert Seat Size: 4 | Cutting Height (mm): 24.80 |
| Cutting Height (Decimal Inch): 0.9764 | Minimum Insert Width (Decimal Inch): 0.1850 |
| Minimum Insert Width (mm): 4.70 | Maximum Insert Width (mm): 5.50 |
| Maximum Insert Width (Decimal Inch): 0.2165 | Complete Insert Compatibility: TAG N5JT; TAG R5J-4D; TAG L5J-4D; TAG N5J; TAG N4.8C; TAG L5C-4D; TAG N5C; TAG R5C-4D; TAG N5UT |
| Complete Tool Block/Toolholder Style Compatibility: C..TBK..,HS..TBK..,IM..TBK..,SGT.. | Manufacturers Catalog Number: TGFH 32-5 |
| Insert Width: 0.1850 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Single | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2600 | |
| Blade Width (Decimal Inch): 0.1600 | |
| Blade Width (mm): 4.00 | |
| Blade Overall Length (Decimal Inch): 5.9060 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: TGFH | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 5 | |
| Insert Holding Method: Clamp | |
| Maximum Workpiece Diameter (Decimal Inch): 4.7200 | |
| Series: Tang-Grip | |
| Insert Style: TAG 5.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 4.70 | |
| Standards: ISO 13399 | |
| Insert Seat Size: 4 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.1850 | |
| Minimum Insert Width (mm): 4.70 | |
| Maximum Insert Width (mm): 5.50 | |
| Maximum Insert Width (Decimal Inch): 0.2165 | |
| Complete Insert Compatibility: TAG N5JT; TAG R5J-4D; TAG L5J-4D; TAG N5J; TAG N4.8C; TAG L5C-4D; TAG N5C; TAG R5C-4D; TAG N5UT | |
| Complete Tool Block/Toolholder Style Compatibility: C..TBK..,HS..TBK..,IM..TBK..,SGT.. | |
| Manufacturers Catalog Number: TGFH 32-5 | |
| Insert Width: 0.1850 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 62646955 |
| Mfr# | 2302143 |
| Big Book# | 897 |
