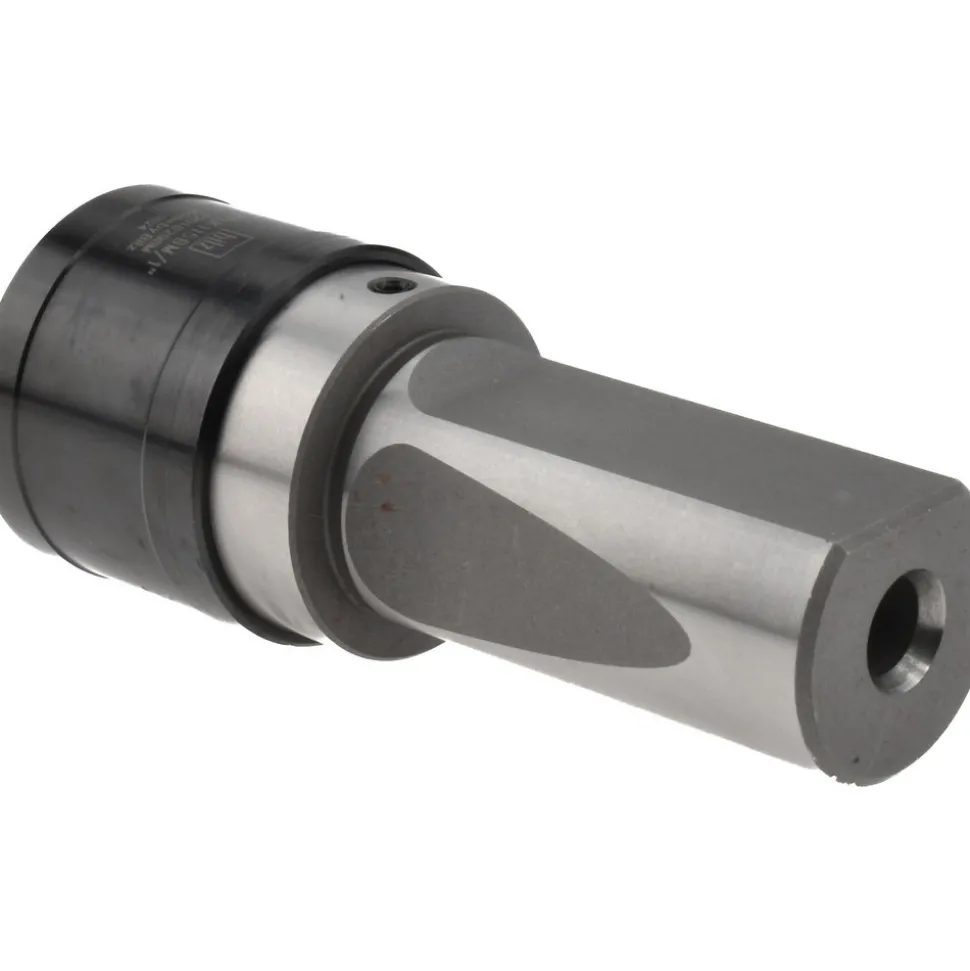

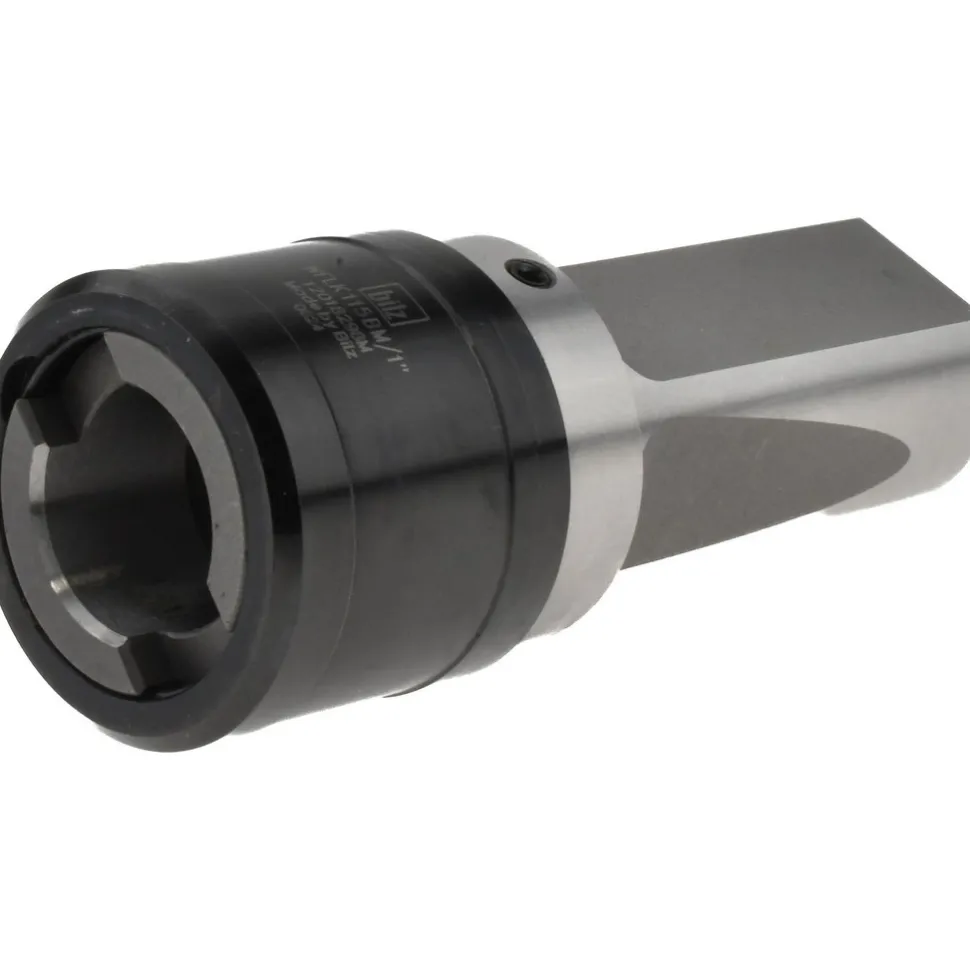

Tapping Chuck: 1″ Shank Dia, Straight Shank, Tension & Compression
Original price was: 325,00 $.126,99 $Current price is: 126,99 $.
Specifications
| Tapping Style: Tension & Compression | Modular Side Connection Type: Straight |
| Shank Diameter (mm): 25.40 | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Minimum Tap Capacity (mm): M3 |
| Maximum Tap Capacity (mm): M12 | Maximum Tap Capacity (Inch): 9/16 |
| Projection (Decimal Inch): 1.5748 | Projection (mm): 40.00 |
| Quick-change: Yes | Maximum Collet Capacity (Inch): 9/16 |
| Nose Diameter (Mm) ( – 2 Decimals): 36.00 | Tap Adapter Size: 1 |
| Through Coolant: No | Maximum Pipe Tap Capacity (Inch): 1/8 |
| Minimum Pipe Tap Capacity (Inch): 1/8 | Hole Diameter (mm): 19.00 |
| UNSPSC Code: 27112807 | |
| Tapping Style: Tension & Compression | |
| Modular Side Connection Type: Straight | |
| Shank Diameter (mm): 25.40 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Minimum Tap Capacity (mm): M3 | |
| Maximum Tap Capacity (mm): M12 | |
| Maximum Tap Capacity (Inch): 9/16 | |
| Projection (Decimal Inch): 1.5748 | |
| Projection (mm): 40.00 | |
| Quick-change: Yes | |
| Maximum Collet Capacity (Inch): 9/16 | |
| Nose Diameter (Mm) ( – 2 Decimals): 36.00 | |
| Tap Adapter Size: 1 | |
| Through Coolant: No | |
| Maximum Pipe Tap Capacity (Inch): 1/8 | |
| Minimum Pipe Tap Capacity (Inch): 1/8 | |
| Hole Diameter (mm): 19.00 | |
| UNSPSC Code: 27112807 |
| MSC# | 00669341 |
| Mfr# | 12018298 |
| Big Book# | 1256 |
