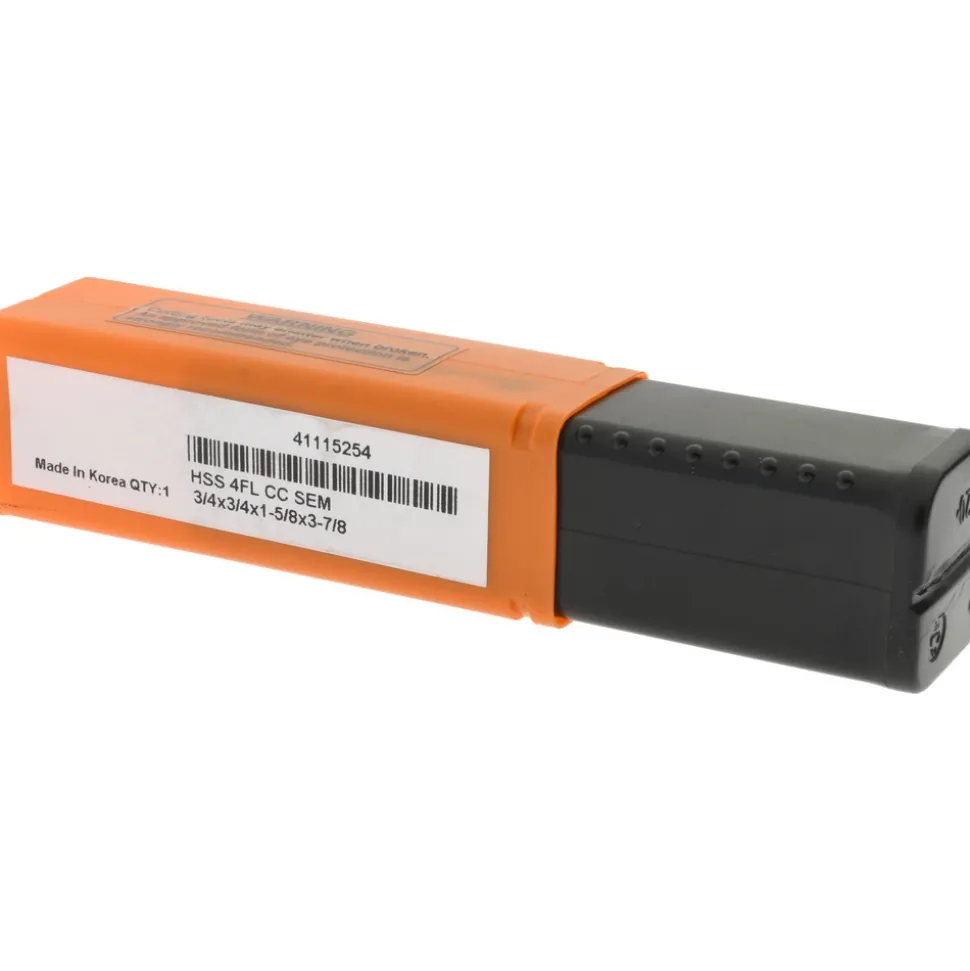

Square End Mill: 3/4″ Dia, 1-5/8″ LOC

Name: Square End Mill: 3/4" Dia, 1-5/8" LOC - Industrial Tool
Price: 45.89 USD
Availability: InStock

45,89 $

Shop Square End Mill: 3/4″ Dia, 1-5/8″ LOC at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: Hertel Brand: Hertel

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.7500	Mill Diameter (Inch): 3/4
Number Of Flutes: 4	End Mill Material: High Speed Steel
Length of Cut (Decimal Inch): 1.6250	Length of Cut (Inch): 1-5/8
Shank Diameter (Decimal Inch): 0.7500	Shank Diameter (Inch): 3/4
Overall Length (Decimal Inch): 3.8750	Overall Length (Inch): 3-7/8
Single Or Double End: Single	Coating/Finish Family: Bright/Uncoated
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 30
Coating/Finish: Bright/Uncoated	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Material Grade: M7
Length Type: Regular	Length Of Cut Range (Decimal Inch): 1.5000 – 2.0000
Series: HSQH4-CC	System Of Measurement: Fractional Inch
UNSPSC Code: 27112803	Country of Origin: South Korea
Mill Diameter (Decimal Inch): 0.7500
Mill Diameter (Inch): 3/4
Number Of Flutes: 4
End Mill Material: High Speed Steel
Length of Cut (Decimal Inch): 1.6250
Length of Cut (Inch): 1-5/8
Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4
Overall Length (Decimal Inch): 3.8750
Overall Length (Inch): 3-7/8
Single Or Double End: Single
Coating/Finish Family: Bright/Uncoated
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 30
Coating/Finish: Bright/Uncoated
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Material Grade: M7
Length Type: Regular
Length Of Cut Range (Decimal Inch): 1.5000 – 2.0000
Series: HSQH4-CC
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: South Korea
