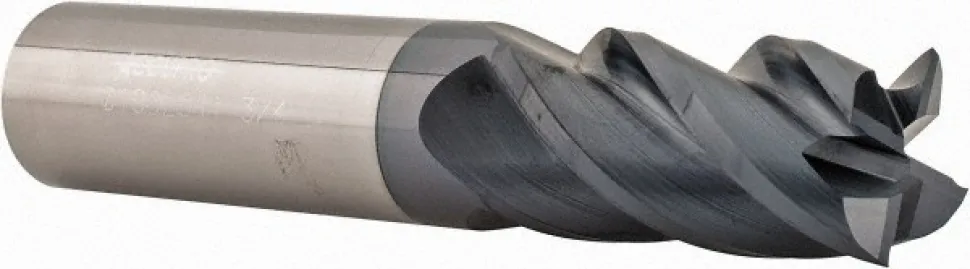

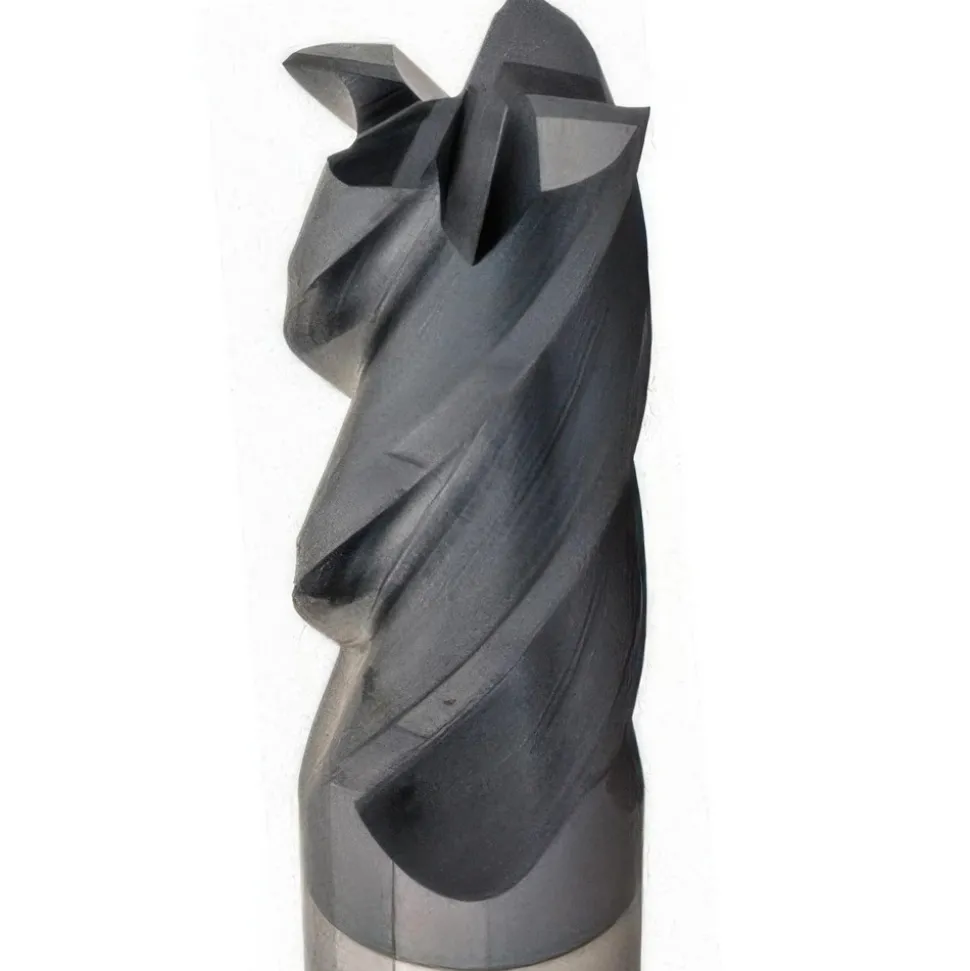

Square End Mill: 3/4″ Dia, 1-1/2″ LOC

112,89 $

SKU: SKUhZz2EAWPrA Categories: End Mills, Milling, Shop All Products Tag: Accupro Brand: Accupro

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.7500	Mill Diameter (Inch): 3/4
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 1.5000	Length of Cut (Inch): 1-1/2
Shank Diameter (Decimal Inch): 0.7500	Shank Diameter (Inch): 3/4
Overall Length (Decimal Inch): 4.0000	Overall Length (Inch): 4
Single Or Double End: Single	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 40
Coating/Finish: AlTiN	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Material Grade: Micrograin
Length Type: Regular	Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: -0.0001/-0.0004 in	Series: ASQSC4-AT-CC-40H
System Of Measurement: Fractional Inch	UNSPSC Code: 27112803
Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.7500
Mill Diameter (Inch): 3/4
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 1.5000
Length of Cut (Inch): 1-1/2
Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4
Overall Length (Decimal Inch): 4.0000
Overall Length (Inch): 4
Single Or Double End: Single
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 40
Coating/Finish: AlTiN
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Material Grade: Micrograin
Length Type: Regular
Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: -0.0001/-0.0004 in
Series: ASQSC4-AT-CC-40H
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
