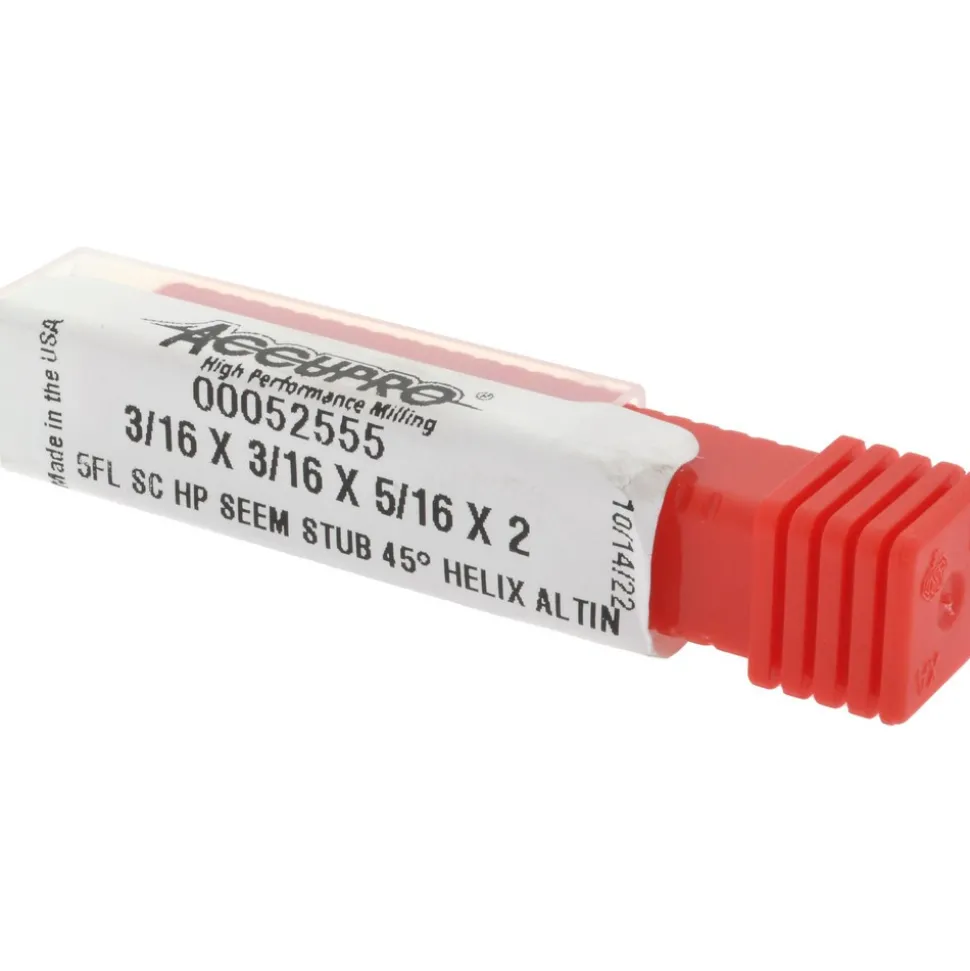

Square End Mill: 3/16″ Dia, 5/16″ LOC
18,99 $
Shop Square End Mill: 3/16″ Dia, 5/16″ LOC at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Decimal Inch): 0.1875 | Mill Diameter (Inch): 3/16 |
| Number Of Flutes: 5 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 0.3125 | Length of Cut (Inch): 5/16 |
| Shank Diameter (Decimal Inch): 0.1875 | Shank Diameter (Inch): 3/16 |
| Overall Length (Decimal Inch): 2.0000 | Overall Length (Inch): 2 |
| Single Or Double End: Single | Coating/Finish Family: AlTiN |
| Centercutting: Yes | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Extended Reach: No |
| Coolant Through: No | Helix Angle: 45 |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel | Primary Workpiece Material Code: S; M |
| Coating/Finish: AlTiN | Variable Helix: No |
| Variable Index: No | Chipbreaker: No |
| Flute Type: Spiral | Material Grade: Micrograin |
| Length Type: Stub | Mill Diameter Tolerance: +0.0000/-0.0020 in |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | Series: ASQSC5-AT-CC |
| System Of Measurement: Fractional Inch | UNSPSC Code: 27112803 |
| Country of Origin: UNITED STATES | |
| Mill Diameter (Decimal Inch): 0.1875 | |
| Mill Diameter (Inch): 3/16 | |
| Number Of Flutes: 5 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 0.3125 | |
| Length of Cut (Inch): 5/16 | |
| Shank Diameter (Decimal Inch): 0.1875 | |
| Shank Diameter (Inch): 3/16 | |
| Overall Length (Decimal Inch): 2.0000 | |
| Overall Length (Inch): 2 | |
| Single Or Double End: Single | |
| Coating/Finish Family: AlTiN | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 45 | |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel | |
| Primary Workpiece Material Code: S; M | |
| Coating/Finish: AlTiN | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Material Grade: Micrograin | |
| Length Type: Stub | |
| Mill Diameter Tolerance: +0.0000/-0.0020 in | |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | |
| Series: ASQSC5-AT-CC | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 00052555 |
| Mfr# | 95168278 |
| Big Book# | 515 |
