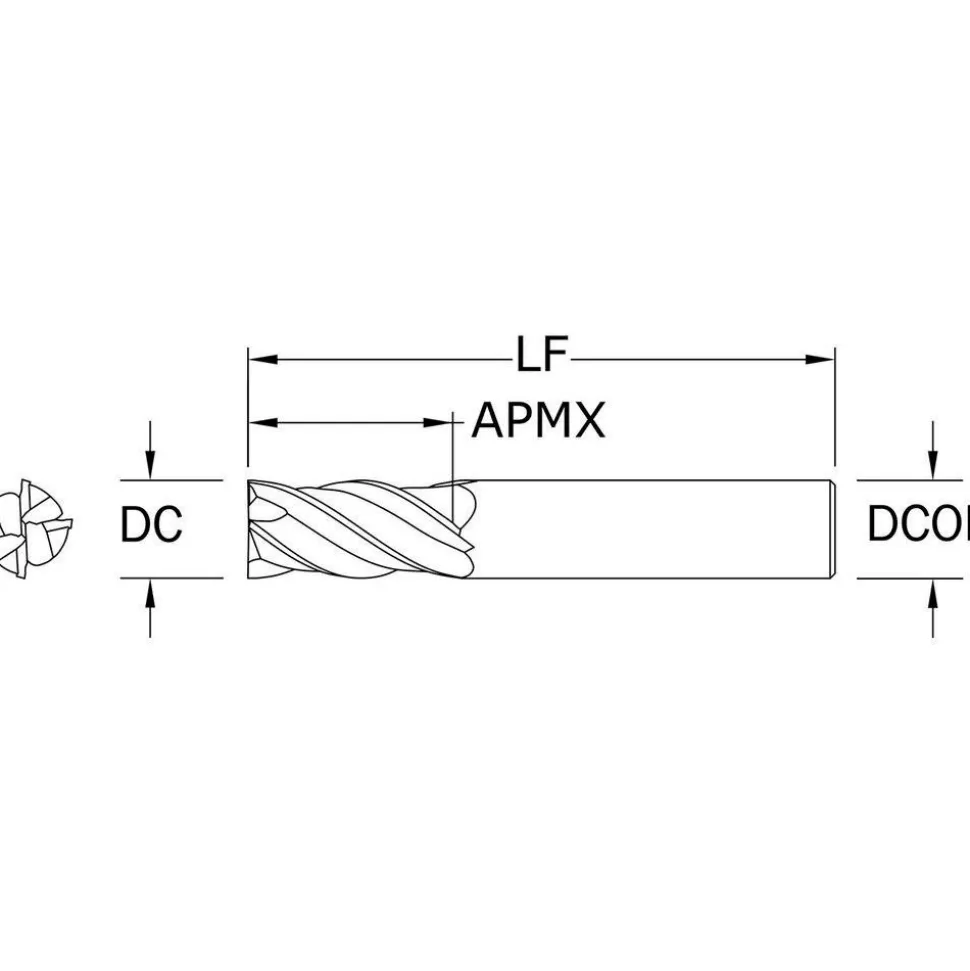

Square End Mill: 1/4″ Dia, 3/4″ LOC

Name: Square End Mill: 1/4" Dia, 3/4" LOC - Industrial Tool
Price: 31.89 USD
Availability: InStock

31,89 $

Shop Square End Mill: 1/4″ Dia, 3/4″ LOC at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: SGS Brand: SGS

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.2500	Mill Diameter (Inch): 1/4
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.7500	Length of Cut (Inch): 3/4
Shank Diameter (Decimal Inch): 0.2500	Shank Diameter (Inch): 1/4
Overall Length (Decimal Inch): 2.5000	Overall Length (Inch): 2-1/2
Single Or Double End: Single	Coating/Finish Family: Ti-NAMITE-X
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 35-38
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel	Primary Workpiece Material Code: P; S; K; M
Coating/Finish: Ti-NAMITE-X	Variable Helix: Yes
Variable Index: Yes	Chipbreaker: No
Flute Type: Spiral	Shank Type: Straight-Cylindrical
Material Grade: Micrograin	Length Type: Regular
Length Of Cut Range (Decimal Inch): 0.7000 – 0.8000	Mill Diameter Tolerance: +0.0000/-0.0012 in
Shank Diameter Tolerance: +0.00000/-0.00035 in	Series: Z1
System Of Measurement: Fractional Inch	UNSPSC Code: 27112803
Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.2500
Mill Diameter (Inch): 1/4
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.7500
Length of Cut (Inch): 3/4
Shank Diameter (Decimal Inch): 0.2500
Shank Diameter (Inch): 1/4
Overall Length (Decimal Inch): 2.5000
Overall Length (Inch): 2-1/2
Single Or Double End: Single
Coating/Finish Family: Ti-NAMITE-X
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 35-38
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code: P; S; K; M
Coating/Finish: Ti-NAMITE-X
Variable Helix: Yes
Variable Index: Yes
Chipbreaker: No
Flute Type: Spiral
Shank Type: Straight-Cylindrical
Material Grade: Micrograin
Length Type: Regular
Length Of Cut Range (Decimal Inch): 0.7000 – 0.8000
Mill Diameter Tolerance: +0.0000/-0.0012 in
Shank Diameter Tolerance: +0.00000/-0.00035 in
Series: Z1
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
