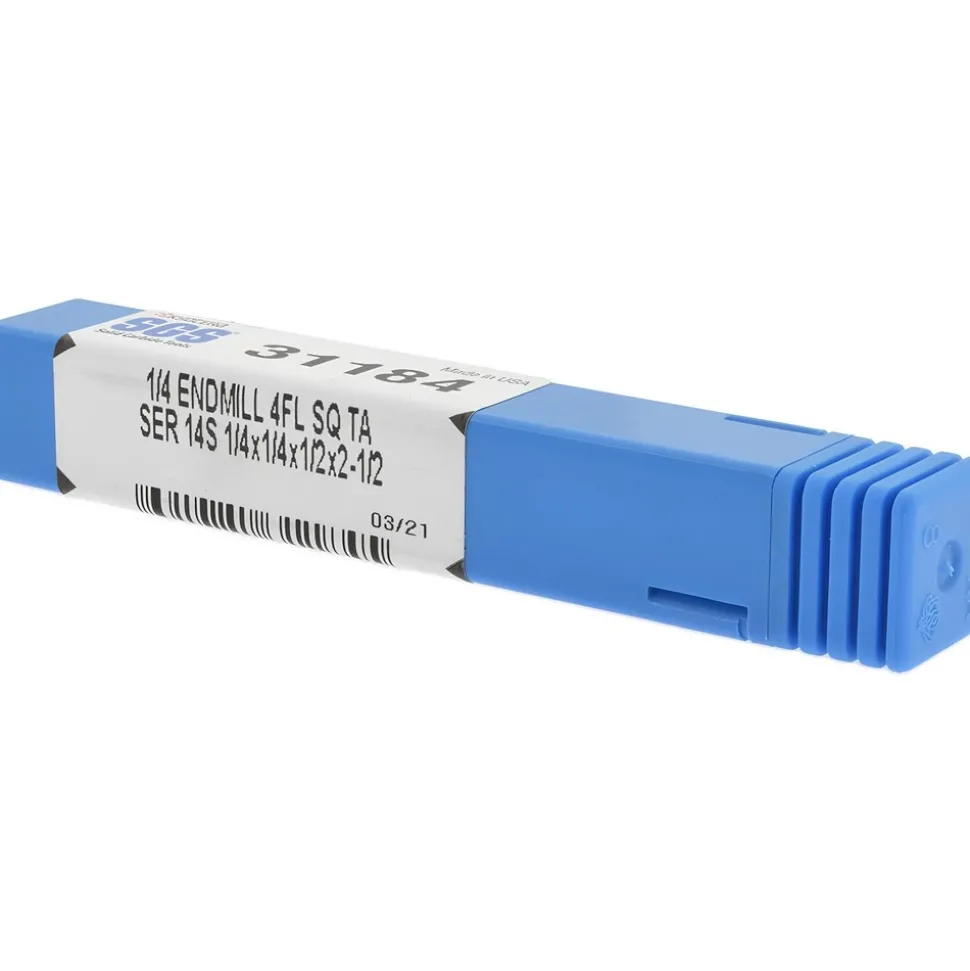

Square End Mill: 1/4" Dia, 1/2" LOC, 4 Flute, Solid Carbide

Square End Mill: 1/4″ Dia, 1/2″ LOC, 4 Flute, Solid Carbide

Name: Square End Mill: 1/4" Dia, 1/2" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 36.99 USD
Availability: InStock

36,99 $

Shop Square End Mill: 1/4″ Dia, 1/2″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: SGS Brand: SGS

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.2500	Mill Diameter (Inch): 1/4
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.5000	Length of Cut (Inch): 1/2
Shank Diameter (Decimal Inch): 0.2500	Shank Diameter (Inch): 1/4
Overall Length (Decimal Inch): 2.5000	Overall Length (Inch): 2-1/2
Single Or Double End: Double	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials	Primary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: Ti-NAMITE-A	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Shank Type: Straight-Cylindrical
Material Grade: Micrograin	Length Type: Stub
Length Of Cut Range (Decimal Inch): 0.5000 – 0.6000	Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: +0.00000/-0.00035 in	Series: 14
System Of Measurement: Fractional Inch	UNSPSC Code: 27112803
Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.2500
Mill Diameter (Inch): 1/4
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.5000
Length of Cut (Inch): 1/2
Shank Diameter (Decimal Inch): 0.2500
Shank Diameter (Inch): 1/4
Overall Length (Decimal Inch): 2.5000
Overall Length (Inch): 2-1/2
Single Or Double End: Double
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
Primary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: Ti-NAMITE-A
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Shank Type: Straight-Cylindrical
Material Grade: Micrograin
Length Type: Stub
Length Of Cut Range (Decimal Inch): 0.5000 – 0.6000
Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: +0.00000/-0.00035 in
Series: 14
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
