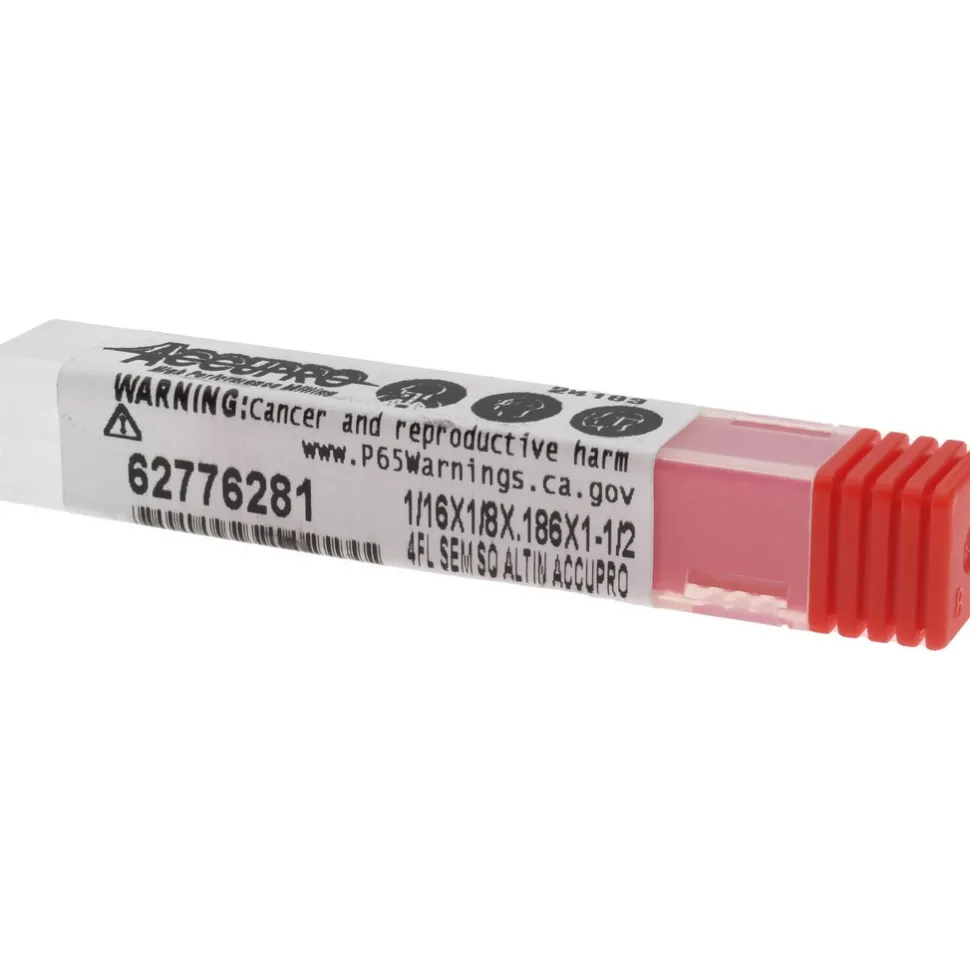

Square End Mill: 1/16″ Dia, 0.1860″ LOC
26,99 $
Shop Square End Mill: 1/16″ Dia, 0.1860″ LOC at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Decimal Inch): 0.0625 | Mill Diameter (Inch): 1/16 |
| Number Of Flutes: 4 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 0.1860 | Shank Diameter (Decimal Inch): 0.1250 |
| Shank Diameter (Inch): 1/8 | Overall Length (Decimal Inch): 1.5000 |
| Overall Length (Inch): 1-1/2 | Single Or Double End: Single |
| Coating/Finish Family: AlTiN | Centercutting: Yes |
| Cutting Direction: Right Hand | Flute Direction: Right Hand |
| Extended Reach: Yes | Coolant Through: No |
| Helix Angle: 30 | Coating/Finish: AlTiN |
| Variable Helix: No | Variable Index: No |
| Chipbreaker: No | Flute Type: Spiral |
| Material Grade: Micrograin | Neck Length (Decimal Inch): 0.5000 |
| Reach Length (Decimal Inch): 0.5000 | Length Of Cut Range (Decimal Inch): 0.1000 – 0.2000 |
| Mill Diameter Tolerance: +0.0000/-0.0010 in | Shank Diameter Tolerance: -0.0001/-0.0003 in |
| Series: ASQSC4-AT-CCER-30H | System Of Measurement: Fractional Inch |
| UNSPSC Code: 27112803 | Product Name: Accupro Miniatures |
| Country of Origin: VARIOUS | |
| Mill Diameter (Decimal Inch): 0.0625 | |
| Mill Diameter (Inch): 1/16 | |
| Number Of Flutes: 4 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 0.1860 | |
| Shank Diameter (Decimal Inch): 0.1250 | |
| Shank Diameter (Inch): 1/8 | |
| Overall Length (Decimal Inch): 1.5000 | |
| Overall Length (Inch): 1-1/2 | |
| Single Or Double End: Single | |
| Coating/Finish Family: AlTiN | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: Yes | |
| Coolant Through: No | |
| Helix Angle: 30 | |
| Coating/Finish: AlTiN | |
| Variable Helix: No | |
| Variable Index: No | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Material Grade: Micrograin | |
| Neck Length (Decimal Inch): 0.5000 | |
| Reach Length (Decimal Inch): 0.5000 | |
| Length Of Cut Range (Decimal Inch): 0.1000 – 0.2000 | |
| Mill Diameter Tolerance: +0.0000/-0.0010 in | |
| Shank Diameter Tolerance: -0.0001/-0.0003 in | |
| Series: ASQSC4-AT-CCER-30H | |
| System Of Measurement: Fractional Inch | |
| UNSPSC Code: 27112803 | |
| Product Name: Accupro Miniatures | |
| Country of Origin: VARIOUS |
| MSC# | 62776281 |
| Mfr# | 14883464 |
| Big Book# | 456 |
