Sale!

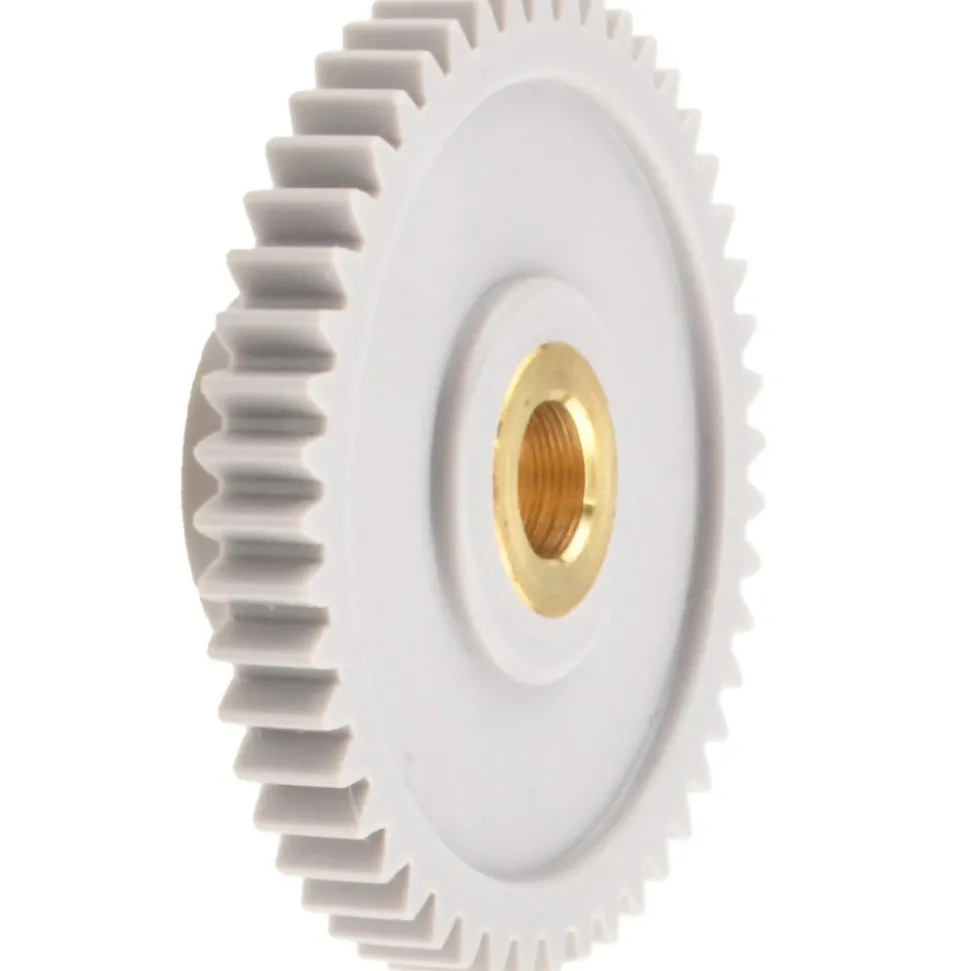

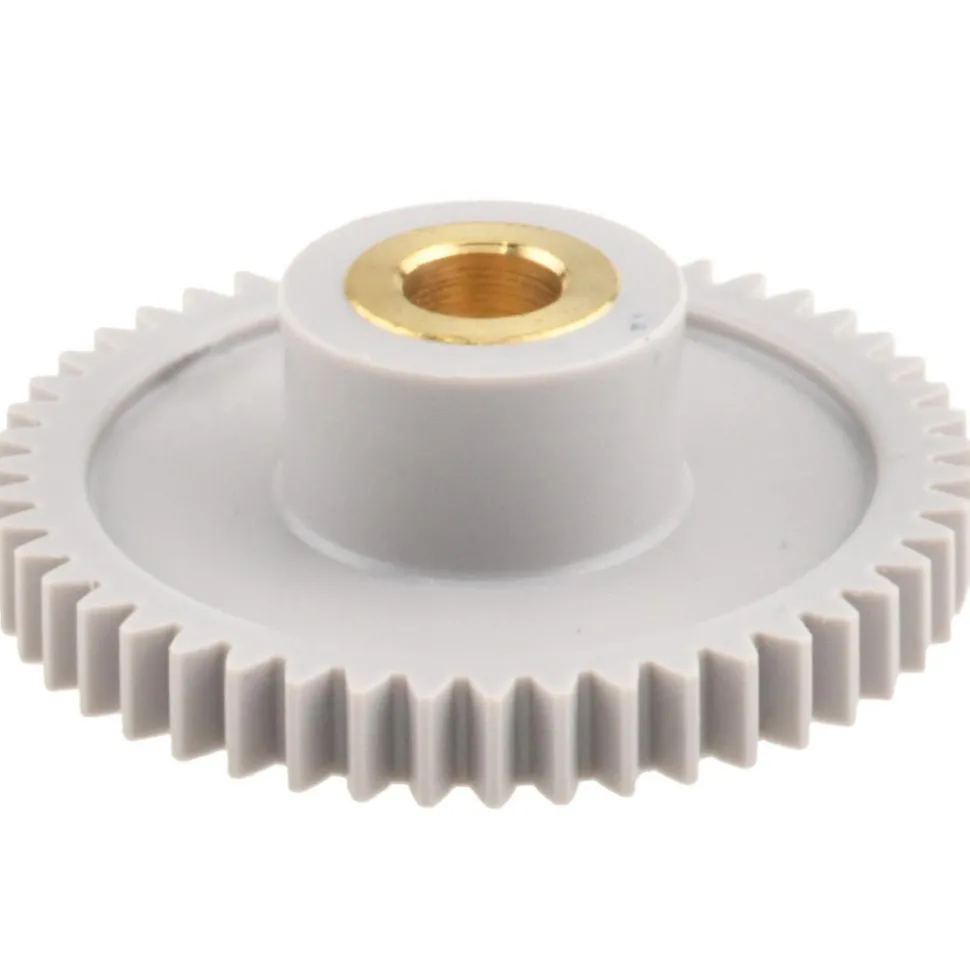

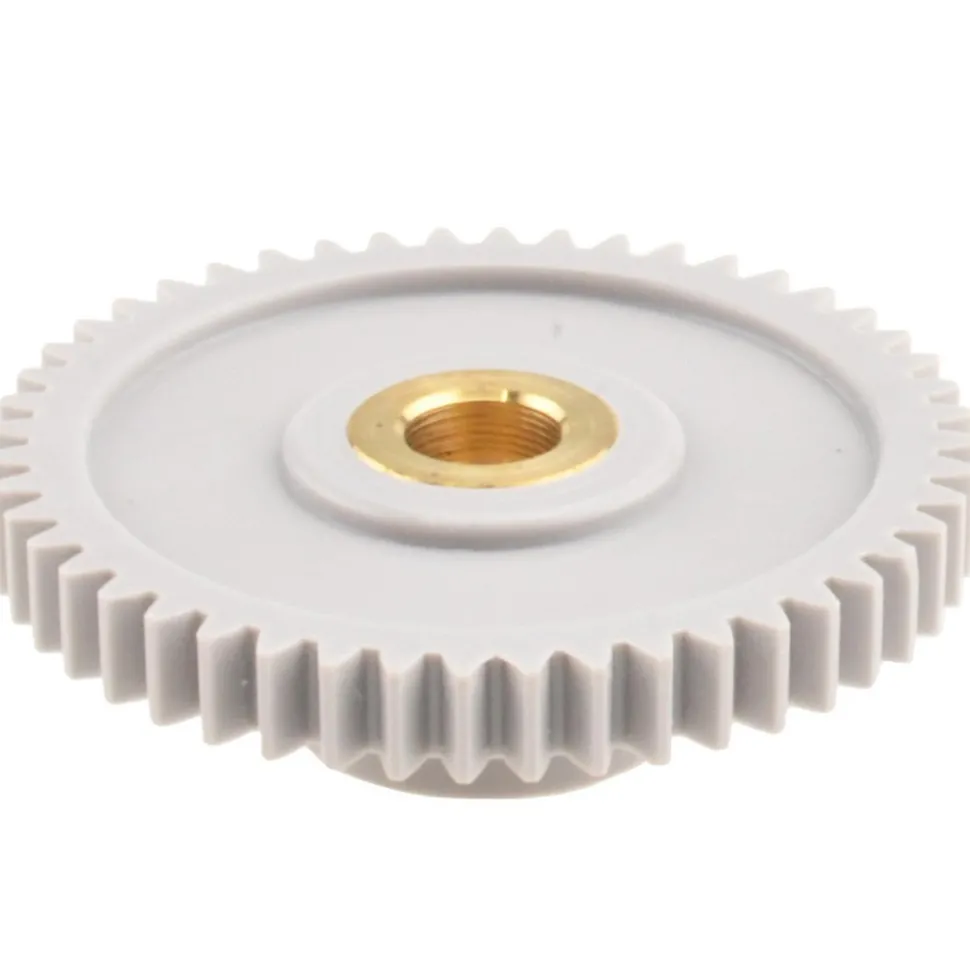

Spur Gear: 48 Teeth, 1/4″ Bore Dia

Original price was: 11,00 $.Current price is: 8,99 $.

Specifications

Gear Type: Spur	Pitch Diameter (Decimal Inch): 1.5000
Outside Diameter (Decimal Inch): 1.5630	Face Width (Decimal Inch): 0.1880
Face Width (Inch): 3/16	Hub Diameter (Decimal Inch): 0.6300
Hub Diameter (Inch): 5/8	Pressure Angle: 20.00
Material: POM	Hub Width (Inch): 5/16
Diametral Pitch: 32	Bore Diameter (Inch): 1/4
Bore Diameter (Decimal Inch): 0.2500	Number Of Teeth: 48
UNSPSC Code: 31171700	Product Service Code: 3020
Country of Origin: UNITED STATES
Gear Type: Spur
Pitch Diameter (Decimal Inch): 1.5000
Outside Diameter (Decimal Inch): 1.5630
Face Width (Decimal Inch): 0.1880
Face Width (Inch): 3/16
Hub Diameter (Decimal Inch): 0.6300
Hub Diameter (Inch): 5/8
Pressure Angle: 20.00
Material: POM
Hub Width (Inch): 5/16
Diametral Pitch: 32
Bore Diameter (Inch): 1/4
Bore Diameter (Decimal Inch): 0.2500
Number Of Teeth: 48
UNSPSC Code: 31171700
Product Service Code: 3020
Country of Origin: UNITED STATES
