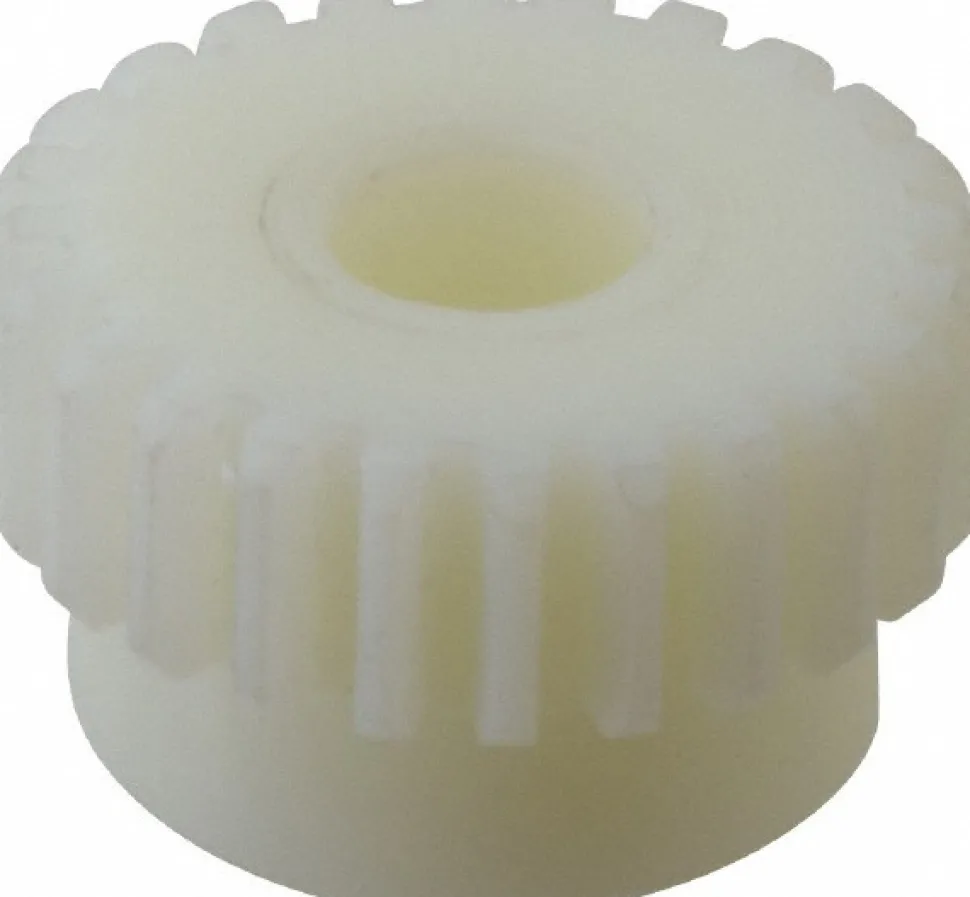

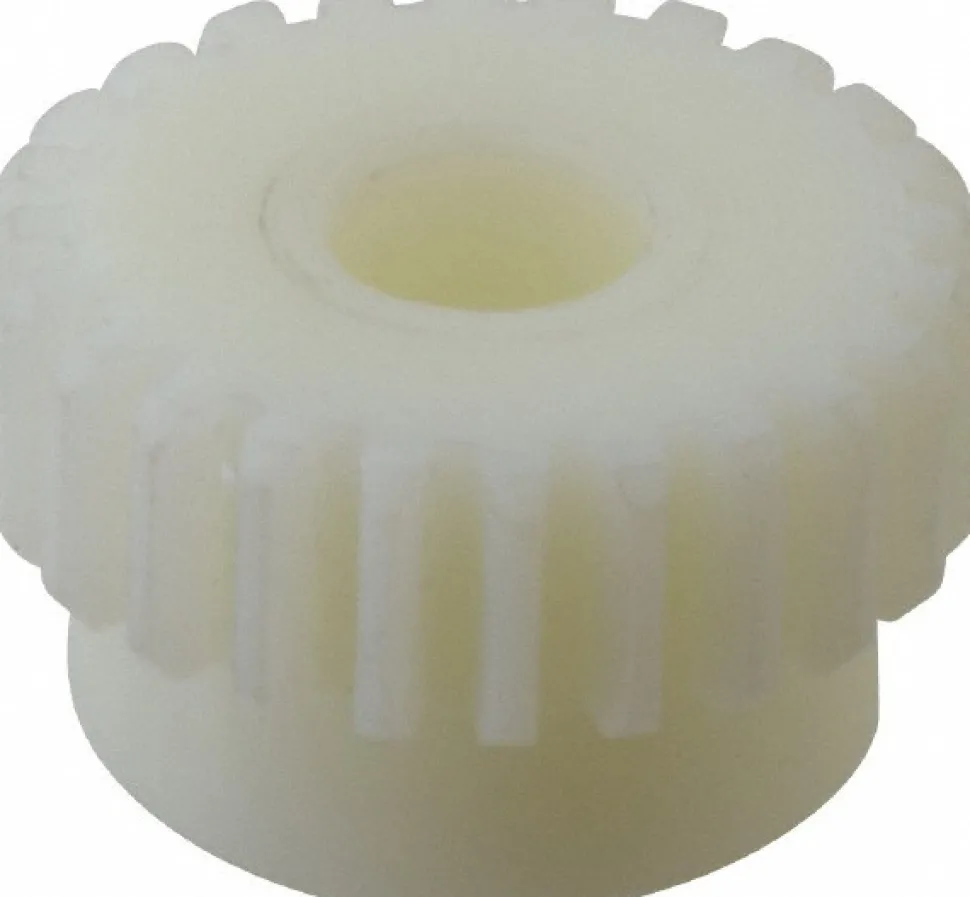

Spur Gear: 24 Teeth, 1/2″ Bore Dia

34,99 $

Specifications

Gear Type: Spur	Pitch Diameter (Decimal Inch): 1.5000
Outside Diameter (Decimal Inch): 1.6250	Face Width (Inch): 1/2
Hub Projection (Decimal Inch): 0.4375	Hub Diameter (Inch): 1-5/16
Pressure Angle: 14.50	Material: Nylon
Diametral Pitch: 16	Bore Diameter (Inch): 1/2
Number Of Teeth: 24	UNSPSC Code: 31171700
Product Service Code: 3020
Gear Type: Spur
Pitch Diameter (Decimal Inch): 1.5000
Outside Diameter (Decimal Inch): 1.6250
Face Width (Inch): 1/2
Hub Projection (Decimal Inch): 0.4375
Hub Diameter (Inch): 1-5/16
Pressure Angle: 14.50
Material: Nylon
Diametral Pitch: 16
Bore Diameter (Inch): 1/2
Number Of Teeth: 24
UNSPSC Code: 31171700
Product Service Code: 3020
