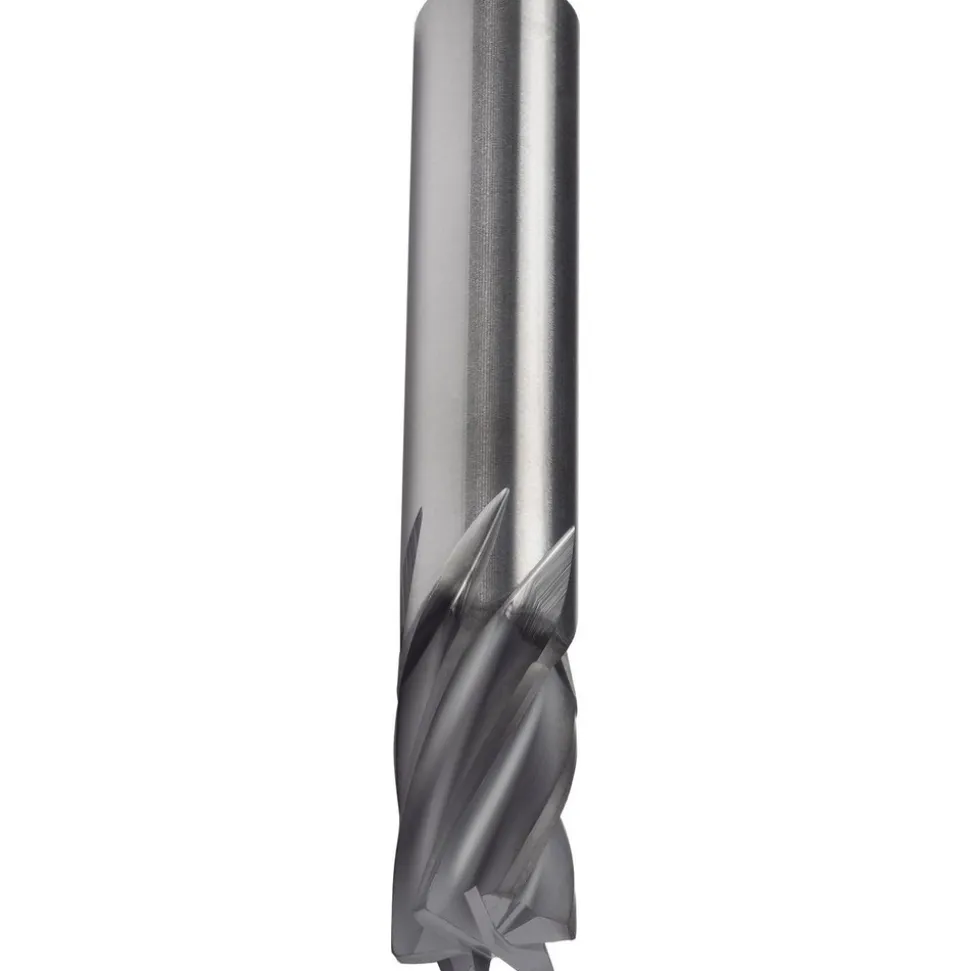

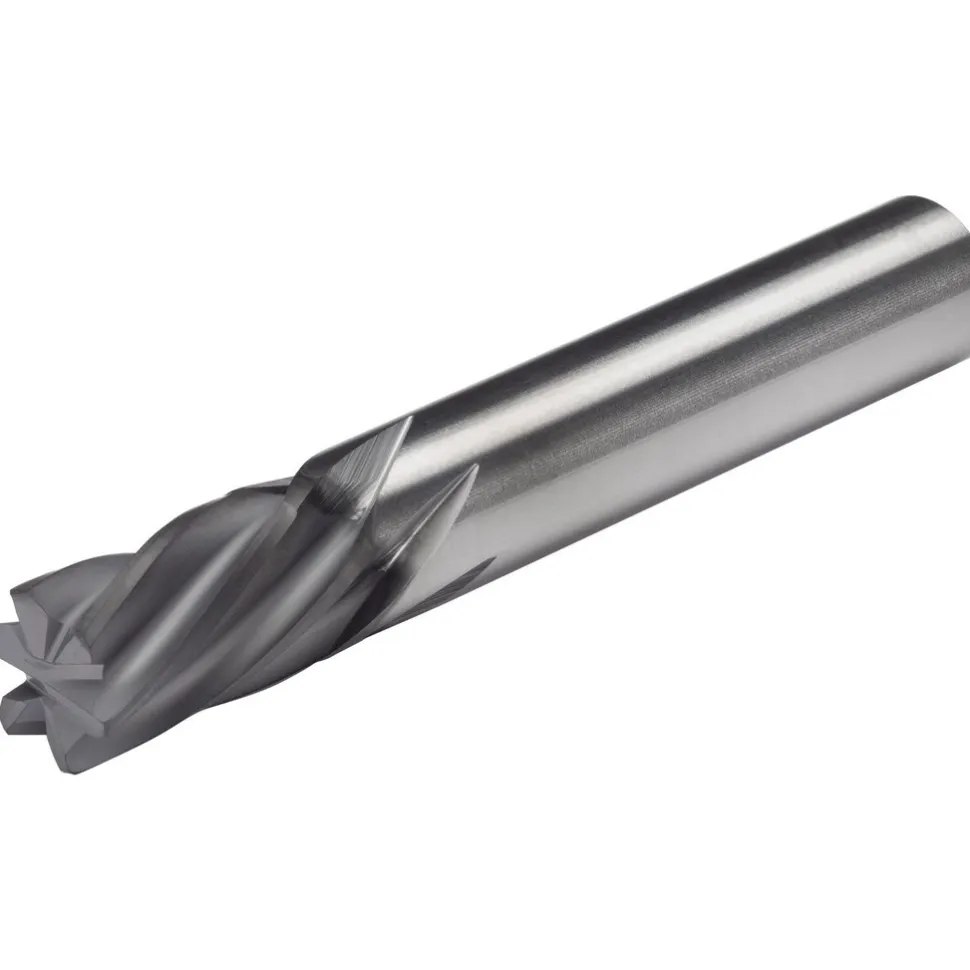

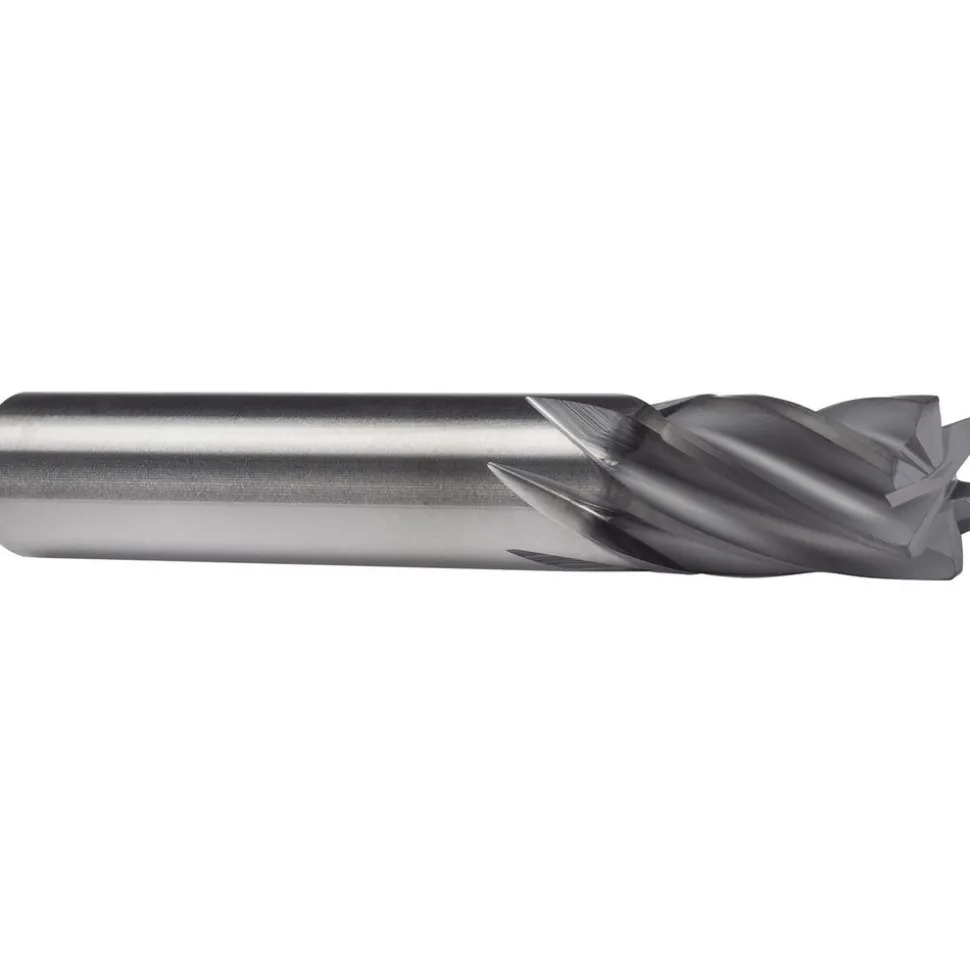

Spiral Router Bit: 1/4" Dia, 3/4" LOC, 1/4" Shank Dia, 6 Flute, Helical

Spiral Router Bit: 1/4″ Dia, 3/4″ LOC, 1/4″ Shank Dia, 6 Flute, Helical

Name: Spiral Router Bit: 1/4" Dia, 3/4" LOC, 1/4" Shank Dia, 6 Flute, Helical - Industrial Tool
Price: 124.89 USD
Availability: InStock

124,89 $

Shop Spiral Router Bit: 1/4″ Dia, 3/4″ LOC, 1/4″ Shank Dia, 6 Flute, Helical at MSC Direct top provider of high quality products

Categories: Milling, Router Bits, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Router Style: Downcut	Flute Type: Helical
Cutter Diameter (Decimal Inch): 0.2500	Cutter Diameter (mm): 6.35
Cutter Diameter (Inch): 1/4	Number Of Flutes: 6
Length of Cut (mm): 19.05	Length of Cut (Inch): 3/4
Length Of Cut (Decimal Inch – 4 Decimals): 0.7500	Overall Length (Inch): 2-1/2
Overall Length (Decimal Inch): 2.5000	Overall Length (mm): 63.50
Shank Diameter (mm): 6.35	Shank Diameter (Decimal Inch): 0.2500
Shank Diameter (Inch): 1/4	Coating/Finish: Diamond
End Type: Chamfered	Cutting Direction: Right Hand
Material Application: Graphites & Carbons; Carbon Fiber; Carbon Composite; Carbon Graphite	Series: ROCO
Shank Length (Decimal Inch): 1.6142	Shank Length (mm): 41.00
Primary Workpiece Material: Composites	Material Grade: High Performance
UNSPSC Code: 27112821	Country of Origin: UNITED STATES
Router Style: Downcut
Flute Type: Helical
Cutter Diameter (Decimal Inch): 0.2500
Cutter Diameter (mm): 6.35
Cutter Diameter (Inch): 1/4
Number Of Flutes: 6
Length of Cut (mm): 19.05
Length of Cut (Inch): 3/4
Length Of Cut (Decimal Inch – 4 Decimals): 0.7500
Overall Length (Inch): 2-1/2
Overall Length (Decimal Inch): 2.5000
Overall Length (mm): 63.50
Shank Diameter (mm): 6.35
Shank Diameter (Decimal Inch): 0.2500
Shank Diameter (Inch): 1/4
Coating/Finish: Diamond
End Type: Chamfered
Cutting Direction: Right Hand
Material Application: Graphites & Carbons; Carbon Fiber; Carbon Composite; Carbon Graphite
Series: ROCO
Shank Length (Decimal Inch): 1.6142
Shank Length (mm): 41.00
Primary Workpiece Material: Composites
Material Grade: High Performance
UNSPSC Code: 27112821
Country of Origin: UNITED STATES
