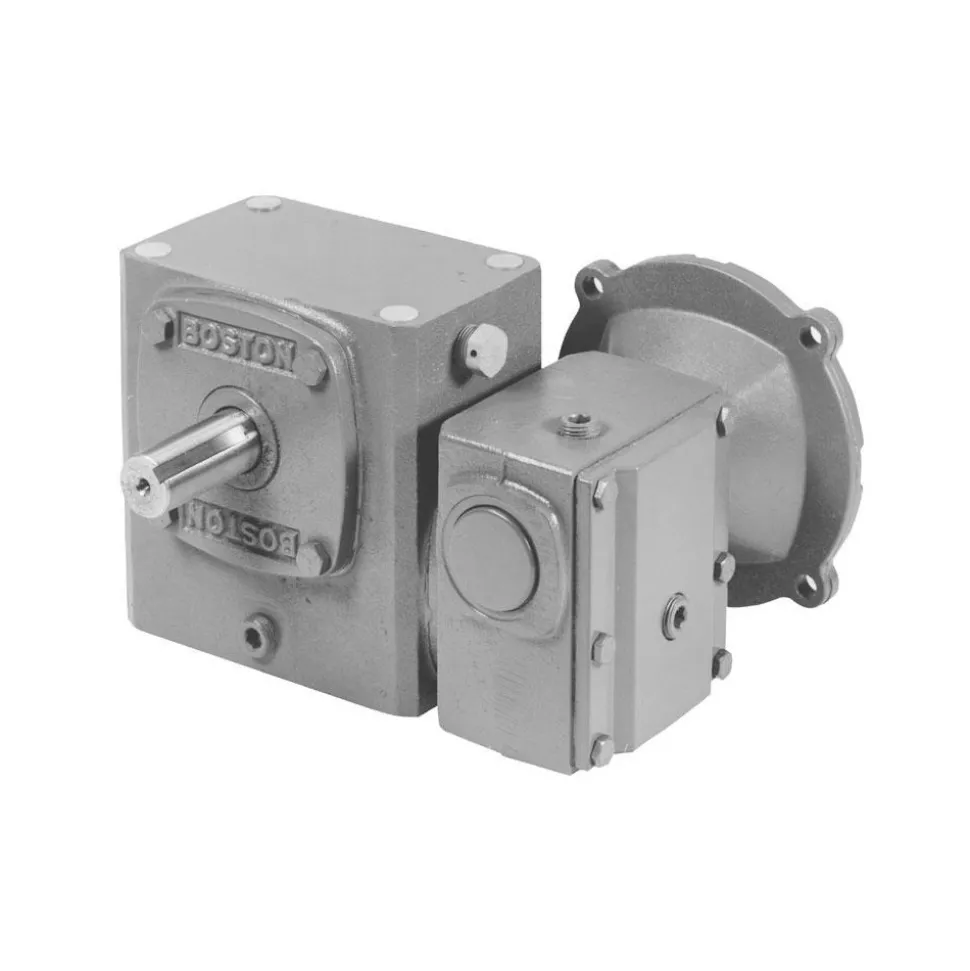

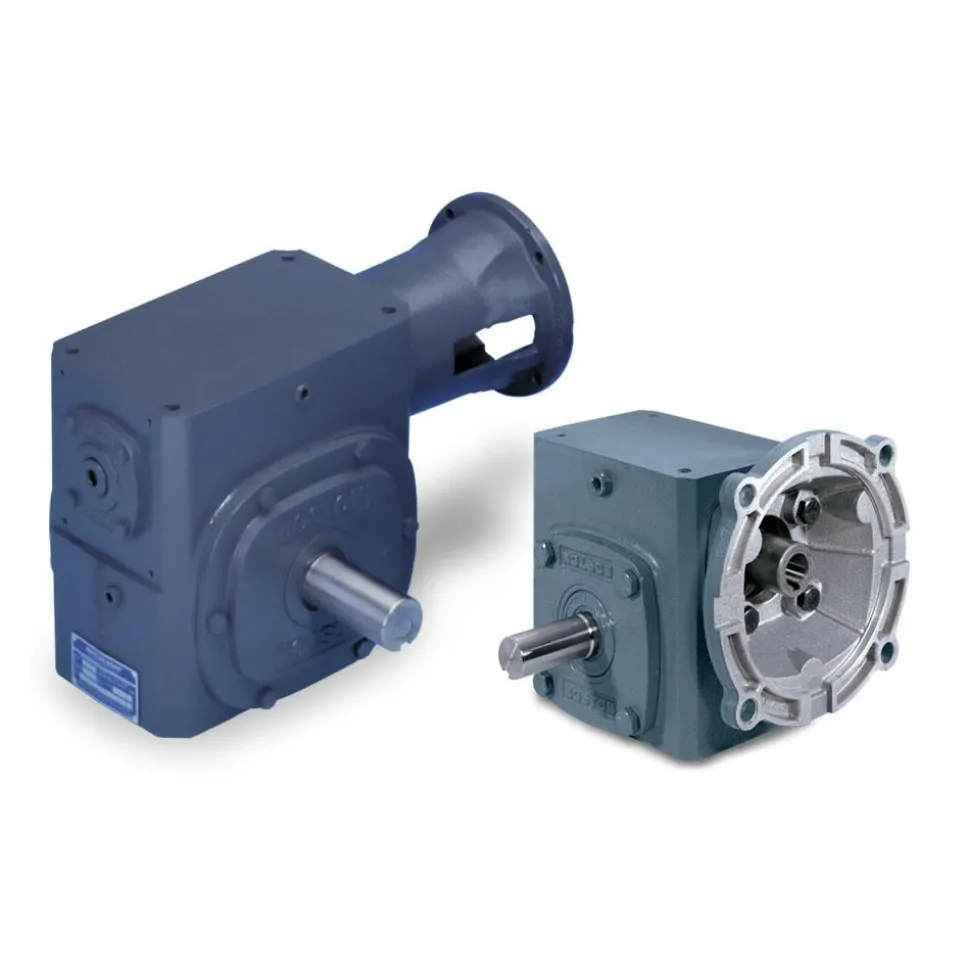

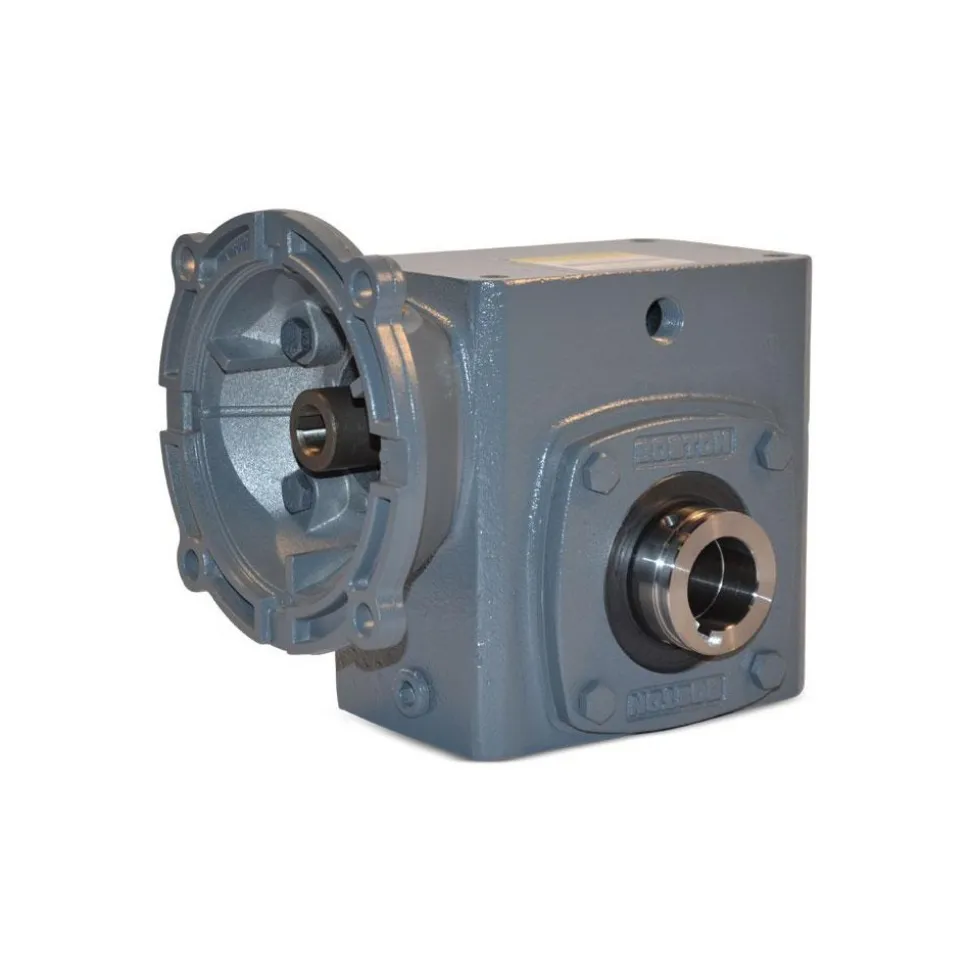

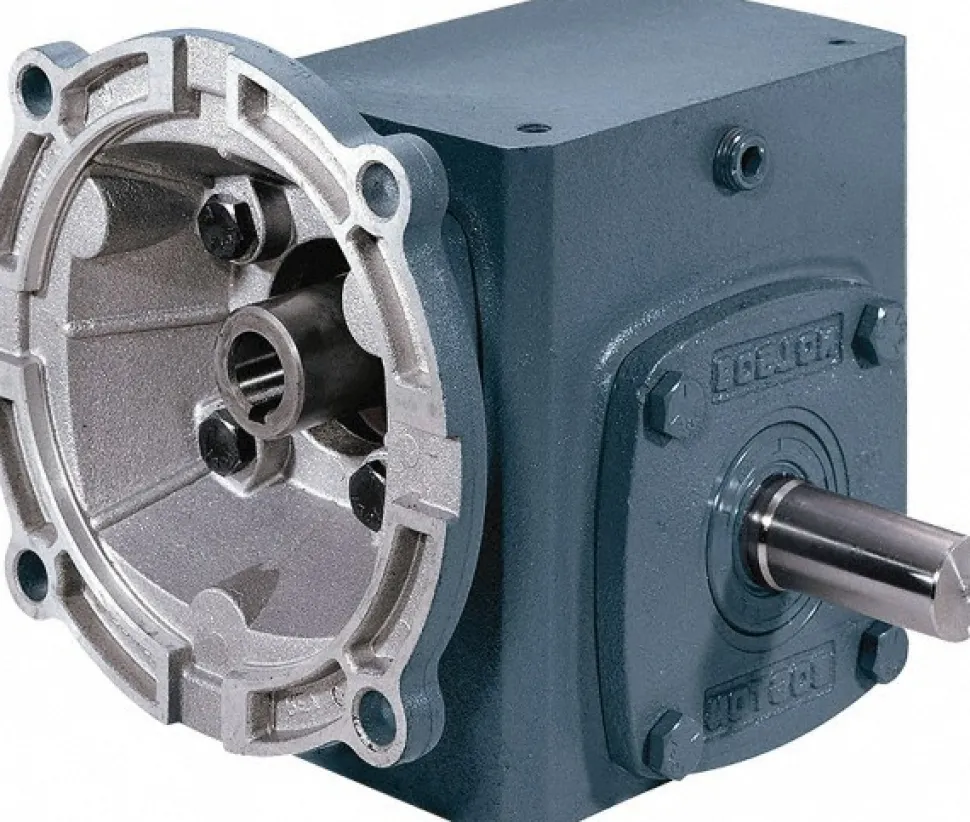

Speed Reducer: Quill, 1.33″ Center to Center Shaft, 30:1, 0.39 hp Max Input, Worm Gear
Original price was: 634,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Centerline Distance: 1.330 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 30:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 1.3300 in |
| PartNo: F713-30-B5-J | Speed Ratio: 30:1 |
| Maximum Input Horsepower: 0.39 | Maximum Output Speed: 58.0 |
| Nema/Iec Frame Size: 56C NEMA | Maximum Torque (In/Lb.): 311.00 |
| Bore Diameter (Decimal Inch): 0.6250 | Shaft Diameter (Decimal Inch): 0.6250 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Overall Length (Decimal Inch): 7.2500 | Overall Width (Decimal Inch – 4 Decimals): 5.8125 |
| Standards: ISO 9001:2015 | Output RPM at 1750 Input: 58.0 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 265 | Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750: 133.000 |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 199 | Height (Decimal Inch): 3.0600 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 1.330 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 30:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 1.3300 in | |
| PartNo: F713-30-B5-J | |
| Speed Ratio: 30:1 | |
| Maximum Input Horsepower: 0.39 | |
| Maximum Output Speed: 58.0 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Torque (In/Lb.): 311.00 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Shaft Diameter (Decimal Inch): 0.6250 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Length (Decimal Inch): 7.2500 | |
| Overall Width (Decimal Inch – 4 Decimals): 5.8125 | |
| Standards: ISO 9001:2015 | |
| Output RPM at 1750 Input: 58.0 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 265 | |
| Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750: 133.000 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 199 | |
| Height (Decimal Inch): 3.0600 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 78449139 |
| Mfr# | 51887 |
| Big Book# | 3713 |
