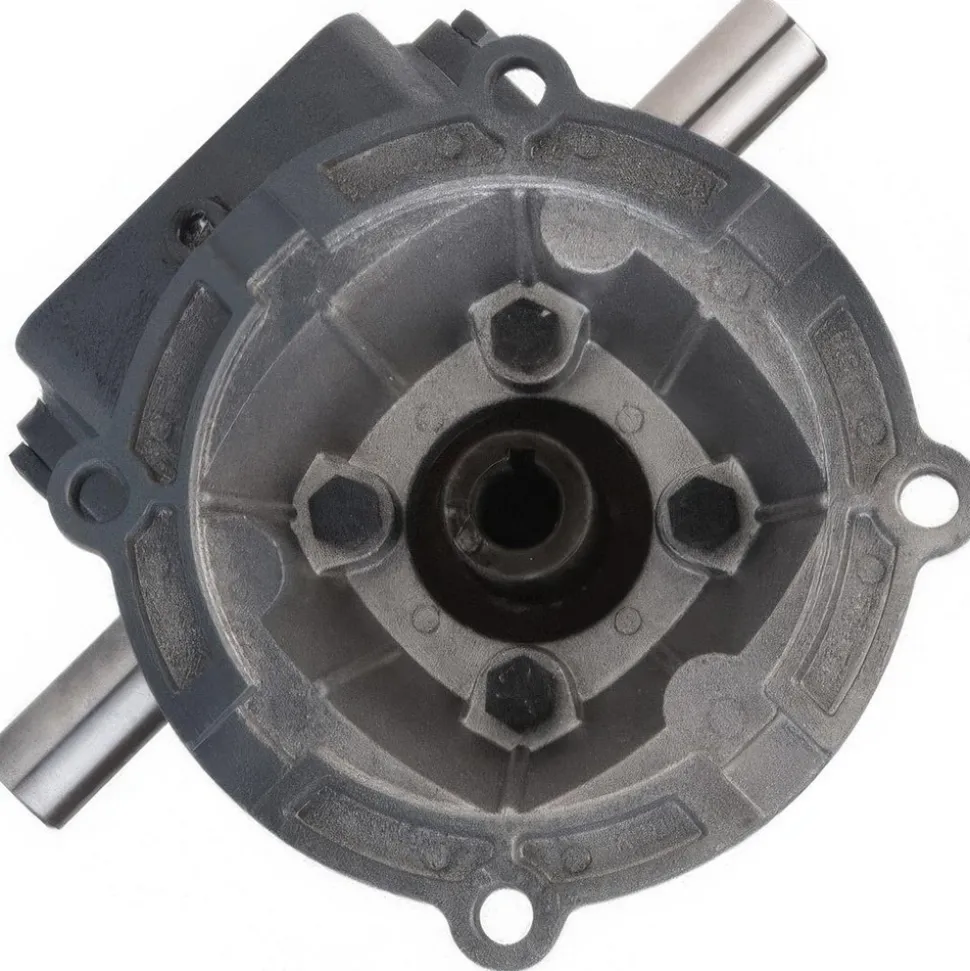

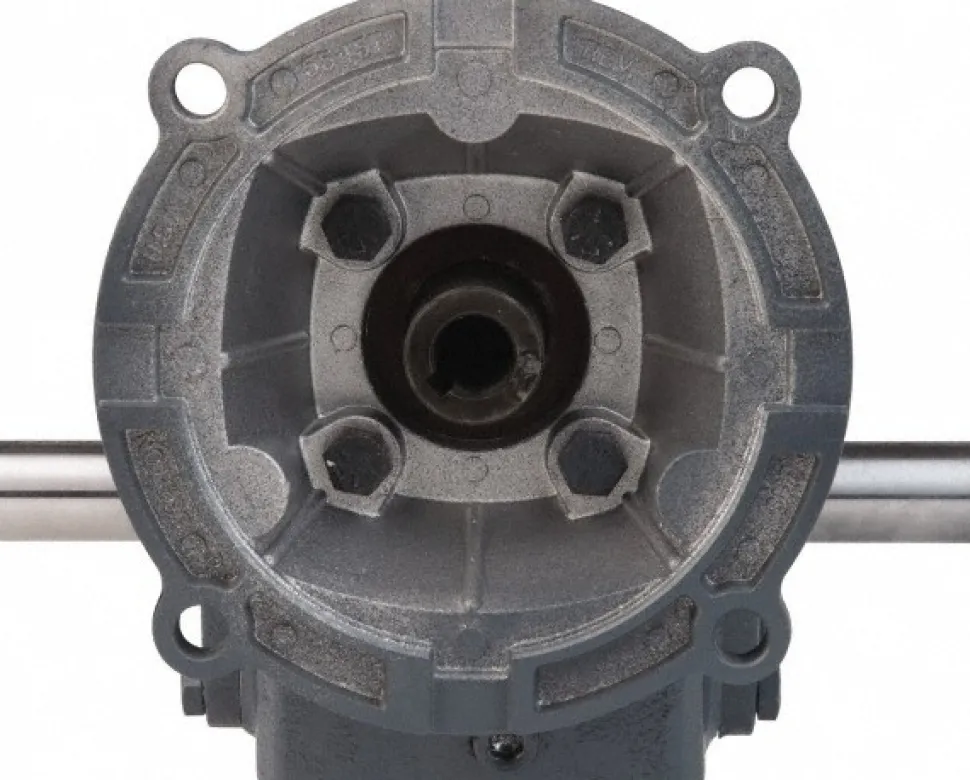

Speed Reducer: 0.69 hp Max Input

Original price was: 558,00 $.Current price is: 130,99 $.

Specifications

Centerline Distance: 1.000	Shaft Type: Double
Ratio: 5:1	PartNo: F710-5-B5-H
Maximum Input Horsepower: 0.69	Nema/Iec Frame Size: 56C NEMA
Maximum Torque (In/Lb.): 113.00	Bore Diameter (Decimal Inch): 0.6250
Output RPM at 1750 Input: 350.0	Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 82
Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 55	Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750: 27.000
Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 41	Height (Decimal Inch): 2.3100
UNSPSC Code: 26111500	Country of Origin: UNITED STATES
Centerline Distance: 1.000
Shaft Type: Double
Ratio: 5:1
PartNo: F710-5-B5-H
Maximum Input Horsepower: 0.69
Nema/Iec Frame Size: 56C NEMA
Maximum Torque (In/Lb.): 113.00
Bore Diameter (Decimal Inch): 0.6250
Output RPM at 1750 Input: 350.0
Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 82
Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 55
Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750: 27.000
Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 41
Height (Decimal Inch): 2.3100
UNSPSC Code: 26111500
Country of Origin: UNITED STATES
