Single Point Threading Tool: 0.0382" Min Thread Dia, 20 TPI, 0.0268" Cut Depth, Internal, Solid Carbide

Single Point Threading Tool: 0.0382″ Min Thread Dia, 20 TPI, 0.0268″ Cut Depth, Internal, Solid Carbide

49,89 $

SKU: SKUKaF6vcjatz Categories: Shop All Products, Thread Turning Tools, Threading Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

Thread Type: Internal	Material: Solid Carbide
Profile Angle: 60	Threading Diameter (Decimal Inch): 0.0382
Threading Diameter (mm): 0.97	Cutting Depth (mm): 1.00
Cutting Depth (Decimal Inch): 0.0268	Maximum Threads Per Inch: 20
Minimum Pitch (mm): 1.25	Maximum Pitch (mm): 1.50
Shank Diameter (Decimal Inch): 0.2362	Shank Diameter (mm): 6.00
Projection from Edge (Decimal Inch): 0.1398	Overall Length (mm): 41.00
Coating/Finish: Titanium Nitride; TiAlN	Coolant Through: No
UNSPSC Code: 23242117	Country of Origin: United Kingdom
Thread Type: Internal
Material: Solid Carbide

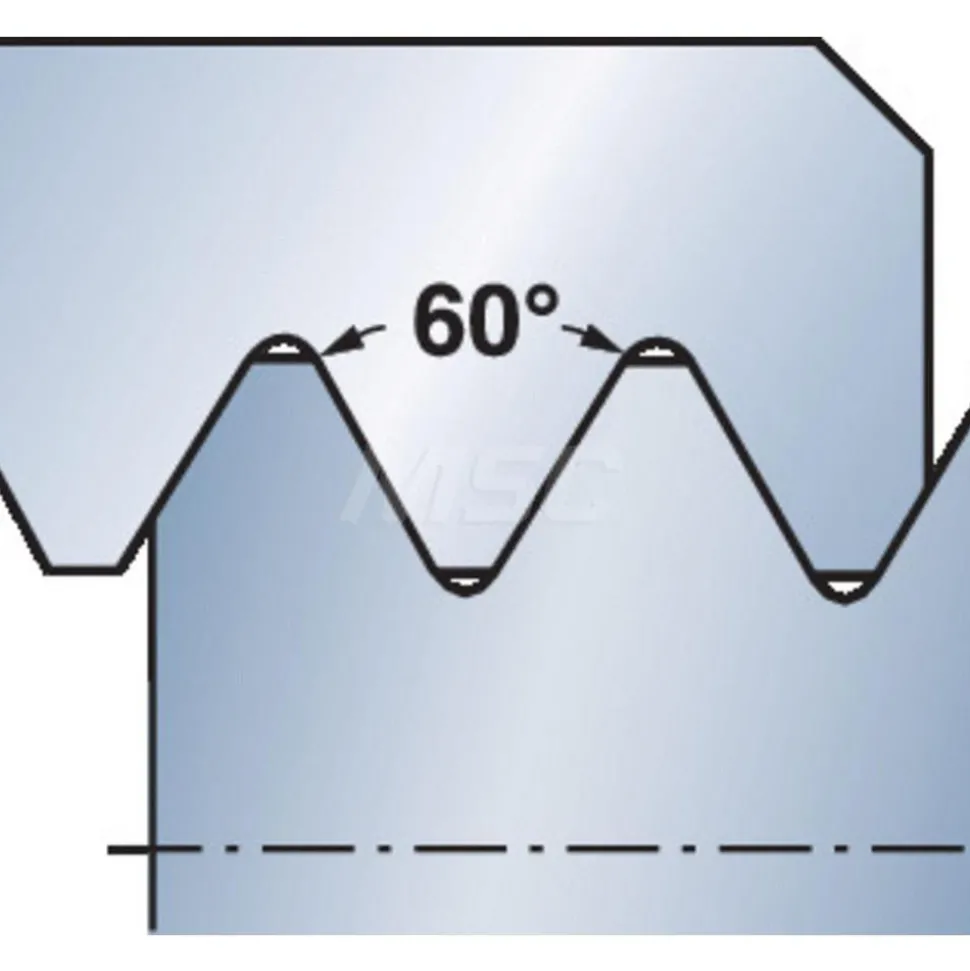

Profile Angle: 60
Threading Diameter (Decimal Inch): 0.0382
Threading Diameter (mm): 0.97
Cutting Depth (mm): 1.00
Cutting Depth (Decimal Inch): 0.0268
Maximum Threads Per Inch: 20
Minimum Pitch (mm): 1.25
Maximum Pitch (mm): 1.50
Shank Diameter (Decimal Inch): 0.2362
Shank Diameter (mm): 6.00
Projection from Edge (Decimal Inch): 0.1398
Overall Length (mm): 41.00
Coating/Finish: Titanium Nitride; TiAlN
Coolant Through: No
UNSPSC Code: 23242117
Country of Origin: United Kingdom
