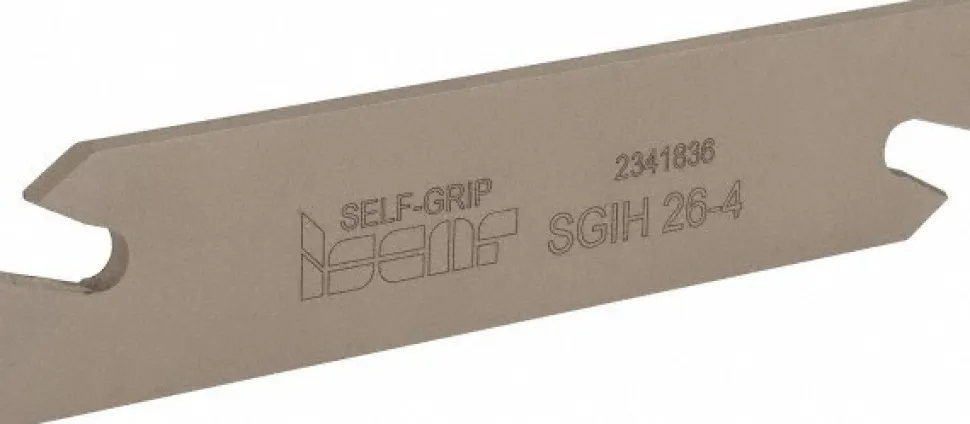

SGIH Double End Right Hand Indexable Cutoff Blade
Original price was: 168,00 $.114,99 $Current price is: 114,99 $.
Specifications
| End Type: Double | Cutting Direction: Right Hand |
| Hand: Right Hand | Blade Height (mm): 26.00 |
| Blade Height (Decimal Inch): 1.0236 | Blade Width (Decimal Inch): 0.1300 |
| Blade Width (mm): 3.20 | Blade Overall Length (Decimal Inch): 4.3307 |
| Blade Overall Length (mm): 110.00 | Blade Style: SGIH |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 3.1500 |
| Series: Self Grip | Tool Block Style: SGTBR |
| Insert Style: GT.. 4 | Cutting Tool Application: Cut-Off |
| Cutting Height (mm): 21.40 | Cutting Height (Decimal Inch): 0.8425 |
| Minimum Insert Width (Decimal Inch): 0.1614 | Minimum Insert Width (mm): 4.10 |
| Maximum Insert Width (mm): 4.10 | Maximum Insert Width (Decimal Inch): 0.1614 |
| Complete Tool Block/Toolholder Style Compatibility: SGTBR 16-5; SGTBR 25-6; SGTBR 19-5 | Insert Width: 0.1600 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Double | |
| Cutting Direction: Right Hand | |
| Hand: Right Hand | |
| Blade Height (mm): 26.00 | |
| Blade Height (Decimal Inch): 1.0236 | |
| Blade Width (Decimal Inch): 0.1300 | |
| Blade Width (mm): 3.20 | |
| Blade Overall Length (Decimal Inch): 4.3307 | |
| Blade Overall Length (mm): 110.00 | |
| Blade Style: SGIH | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 3.1500 | |
| Series: Self Grip | |
| Tool Block Style: SGTBR | |
| Insert Style: GT.. 4 | |
| Cutting Tool Application: Cut-Off | |
| Cutting Height (mm): 21.40 | |
| Cutting Height (Decimal Inch): 0.8425 | |
| Minimum Insert Width (Decimal Inch): 0.1614 | |
| Minimum Insert Width (mm): 4.10 | |
| Maximum Insert Width (mm): 4.10 | |
| Maximum Insert Width (Decimal Inch): 0.1614 | |
| Complete Tool Block/Toolholder Style Compatibility: SGTBR 16-5; SGTBR 25-6; SGTBR 19-5 | |
| Insert Width: 0.1600 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 08689259 |
| Mfr# | 2300614 |
| Big Book# | 894 |
