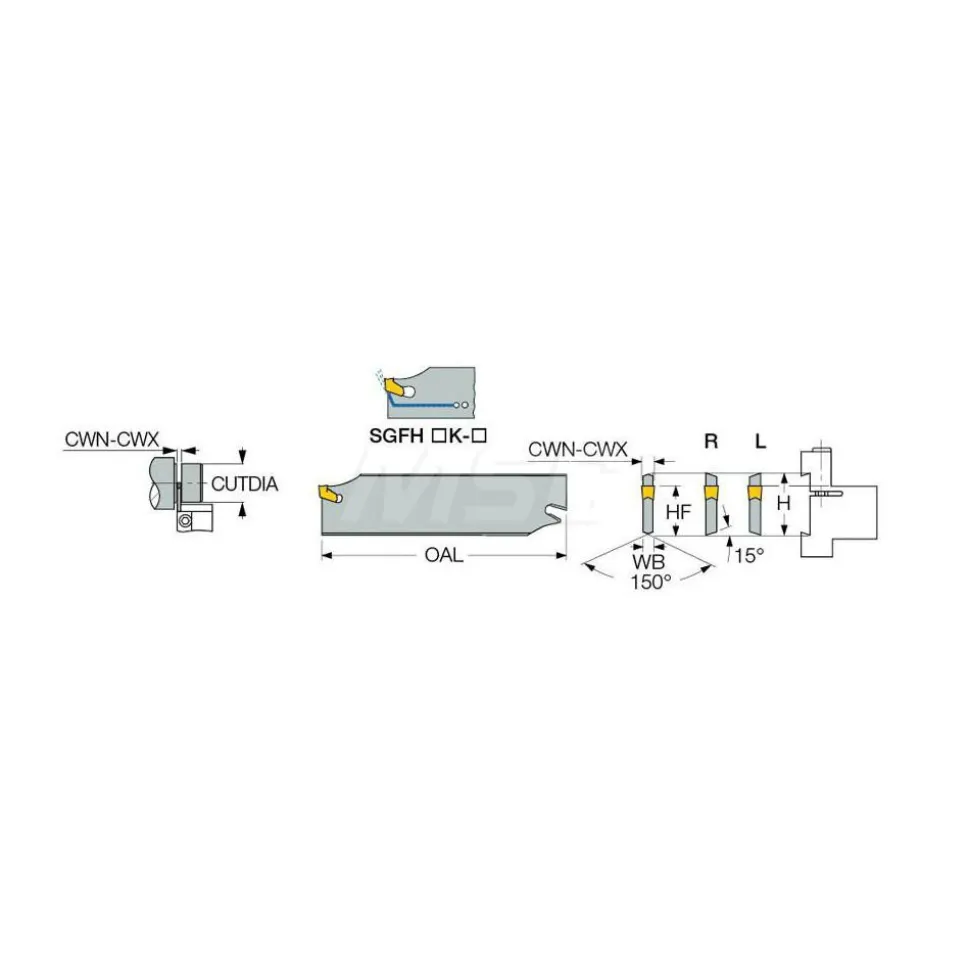

SGFH Double End Right Hand Indexable Cutoff Blade
Original price was: 181,00 $.123,99 $Current price is: 123,99 $.
Specifications
| End Type: Double | Cutting Direction: Right Hand |
| Hand: Right Hand | Blade Height (mm): 32.00 |
| Blade Height (Decimal Inch): 1.2598 | Blade Width (Decimal Inch): 0.1600 |
| Blade Width (mm): 4.00 | Blade Overall Length (Decimal Inch): 5.9055 |
| Blade Overall Length (mm): 150.00 | Blade Style: SGFH |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 4.7200 |
| Series: Self Grip | Cutting Tool Application: Grooving; Turning; Parting |
| Insert Width (mm): 4.80 | Standards: ISO 13399 |
| Cutting Height (mm): 24.80 | Cutting Height (Decimal Inch): 0.9764 |
| Minimum Insert Width (Decimal Inch): 0.1787 | Minimum Insert Width (mm): 4.54 |
| Maximum Insert Width (mm): 5.50 | Maximum Insert Width (Decimal Inch): 0.2165 |
| Complete Insert Compatibility: GF.. 4.8; GF.. 5.. | Manufacturers Catalog Number: SGFH 32-5 |
| Insert Width: 0.1890 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Double | |
| Cutting Direction: Right Hand | |
| Hand: Right Hand | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2598 | |
| Blade Width (Decimal Inch): 0.1600 | |
| Blade Width (mm): 4.00 | |
| Blade Overall Length (Decimal Inch): 5.9055 | |
| Blade Overall Length (mm): 150.00 | |
| Blade Style: SGFH | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 4.7200 | |
| Series: Self Grip | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 4.80 | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 24.80 | |
| Cutting Height (Decimal Inch): 0.9764 | |
| Minimum Insert Width (Decimal Inch): 0.1787 | |
| Minimum Insert Width (mm): 4.54 | |
| Maximum Insert Width (mm): 5.50 | |
| Maximum Insert Width (Decimal Inch): 0.2165 | |
| Complete Insert Compatibility: GF.. 4.8; GF.. 5.. | |
| Manufacturers Catalog Number: SGFH 32-5 | |
| Insert Width: 0.1890 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 60821220 |
| Mfr# | 2300528 |
| Big Book# | 896 |
