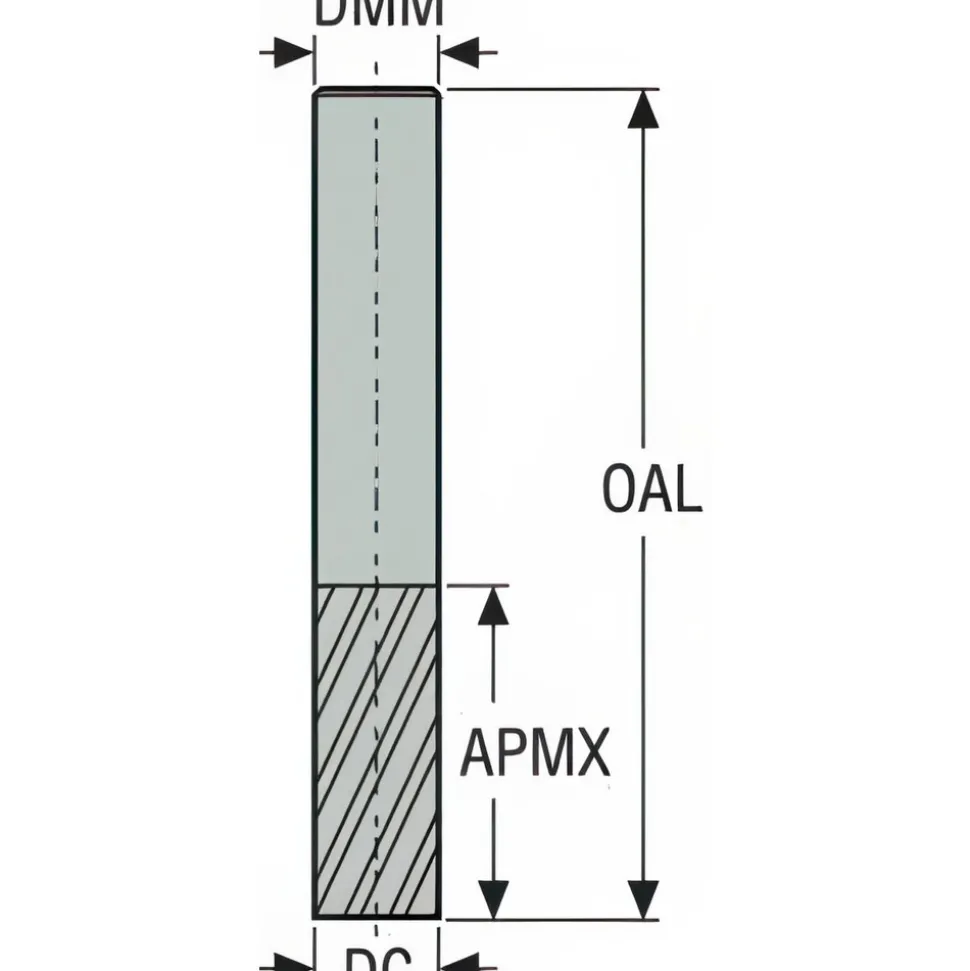

Roughing & Finishing End Mill: 1/2″ Dia, 6 Flute, Solid Carbide
91,99 $
Shop Roughing & Finishing End Mill: 1/2″ Dia, 6 Flute, Solid Carbide at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Fractional Inch): 1/2 | Flute Type: Spiral |
| Number Of Flutes: 6 | End Mill Material: Solid Carbide |
| Length of Cut (Inch): 1-1/4 | Coating/Finish: AlTiN |
| Overall Length (Inch): 3 | Centercutting: Yes |
| Flute Direction: Right Hand | Extended Reach: No |
| Shank Diameter (Inch): 1/2 | Mill Diameter (Decimal Inch): 0.5000 |
| Length of Cut (Decimal Inch): 1.2500 | Shank Type: Straight-Cylindrical |
| Length Type: Standard | Shank Diameter (Decimal Inch): 0.5000 |
| Chipbreaker: No | Variable Helix: No |
| Variable Index: Yes | Helix Angle: 38 |
| Material Grade: Micrograin | Single or Double End: Single |
| Cutting Direction: Right Hand | Series: S638 |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | Mill Diameter Tolerance: +0.000 to -0.002 in |
| UNSPSC Code: 27112803 | Overall Length Tolerance: +0.060/-0.060 in |
| Country of Origin: UNITED STATES | |
| Mill Diameter (Fractional Inch): 1/2 | |
| Flute Type: Spiral | |
| Number Of Flutes: 6 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Inch): 1-1/4 | |
| Coating/Finish: AlTiN | |
| Overall Length (Inch): 3 | |
| Centercutting: Yes | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Shank Diameter (Inch): 1/2 | |
| Mill Diameter (Decimal Inch): 0.5000 | |
| Length of Cut (Decimal Inch): 1.2500 | |
| Shank Type: Straight-Cylindrical | |
| Length Type: Standard | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Chipbreaker: No | |
| Variable Helix: No | |
| Variable Index: Yes | |
| Helix Angle: 38 | |
| Material Grade: Micrograin | |
| Single or Double End: Single | |
| Cutting Direction: Right Hand | |
| Series: S638 | |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | |
| Mill Diameter Tolerance: +0.000 to -0.002 in | |
| UNSPSC Code: 27112803 | |
| Overall Length Tolerance: +0.060/-0.060 in | |
| Country of Origin: UNITED STATES |
| MSC# | 46971271 |
| Mfr# | 03007645 |
| Big Book# | 539 |
