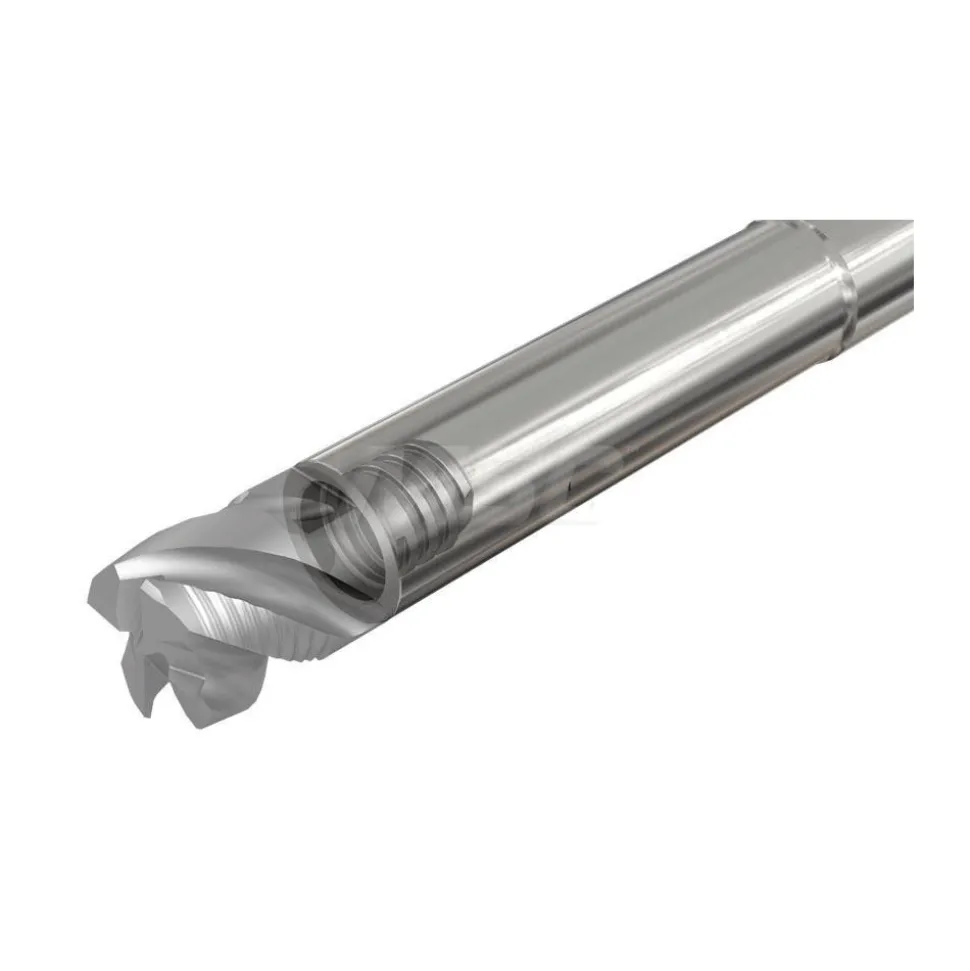

Replaceable Tip Milling Shank: Series Multimaster, 40 mm Projection, 12 mm 90 ° Shank
130,99 $
Specifications

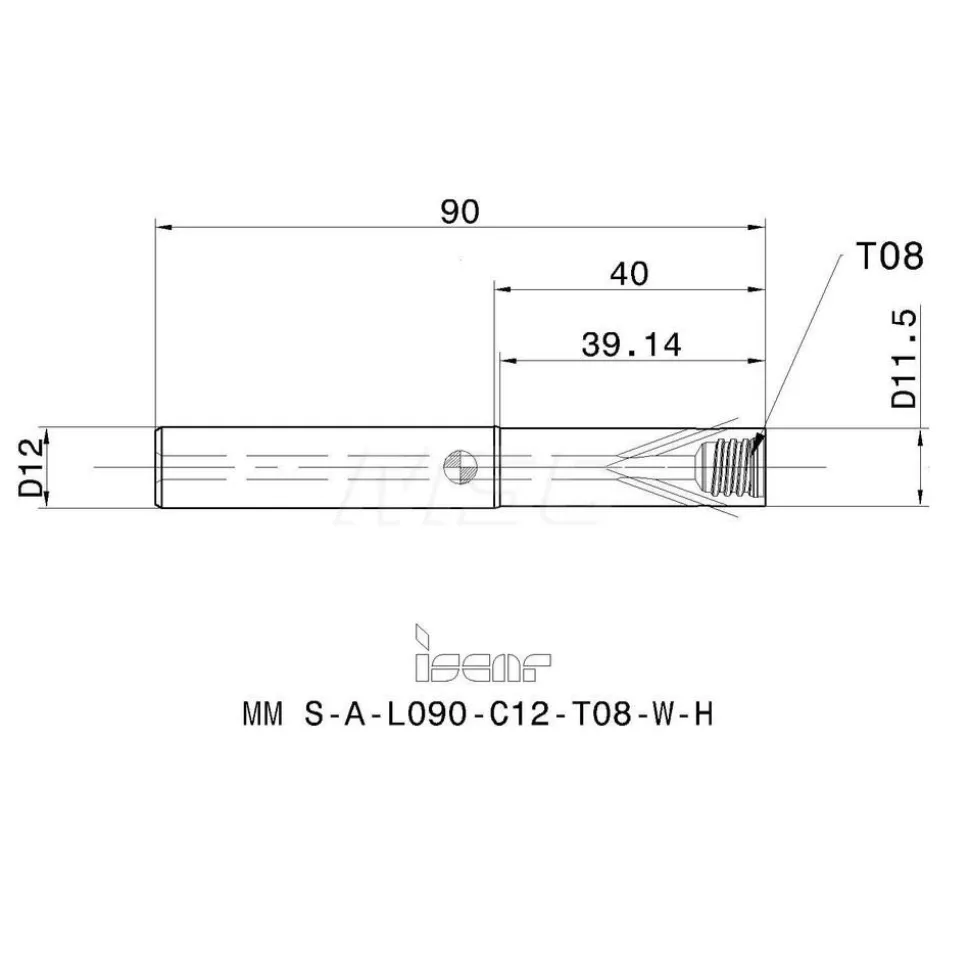

| Shank Type: 90 Degree | Shank Diameter (mm): 12.00 |
| Shank Diameter (Decimal Inch): 0.4724 | Neck Thread Size: T08 |
| Overall Length (Decimal Inch): 3.5433 | Overall Length (mm): 90.00 |
| Shank Shape: Straight | Tool Material: Tungsten |
| Neck Diameter (mm): 11.60 | Coolant Through: Yes |
| Toolholder Style: MM S-A | Series: Multimaster |
| Head Length (Decimal Inch): 1.5240 | Maximum Diameter (mm): 12.00 |
| Tool Application: Milling | Weldon Flat: No |
| Effective Length (mm): 40.00 | Effective Length (Decimal Inch): 1.5748 |
| Milling Tip Style: MM GRIT-K/P-45A; BCM-MM; MM HCR; MM HBR; HCM-MM; MM EB; MM EC-4; HCE-MM; HP E90AN-MM-07 | Projection (mm): 40.00 |
| UNSPSC Code: 23291600 | Country of Origin: Israel |
| Shank Type: 90 Degree | |
| Shank Diameter (mm): 12.00 | |
| Shank Diameter (Decimal Inch): 0.4724 | |
| Neck Thread Size: T08 | |
| Overall Length (Decimal Inch): 3.5433 | |
| Overall Length (mm): 90.00 | |
| Shank Shape: Straight | |
| Tool Material: Tungsten | |
| Neck Diameter (mm): 11.60 | |
| Coolant Through: Yes | |
| Toolholder Style: MM S-A | |
| Series: Multimaster | |
| Head Length (Decimal Inch): 1.5240 | |
| Maximum Diameter (mm): 12.00 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Effective Length (mm): 40.00 | |
| Effective Length (Decimal Inch): 1.5748 | |
| Milling Tip Style: MM GRIT-K/P-45A; BCM-MM; MM HCR; MM HBR; HCM-MM; MM EB; MM EC-4; HCE-MM; HP E90AN-MM-07 | |
| Projection (mm): 40.00 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Israel |
| MSC# | 91106955 |
| Mfr# | 3104438 |
