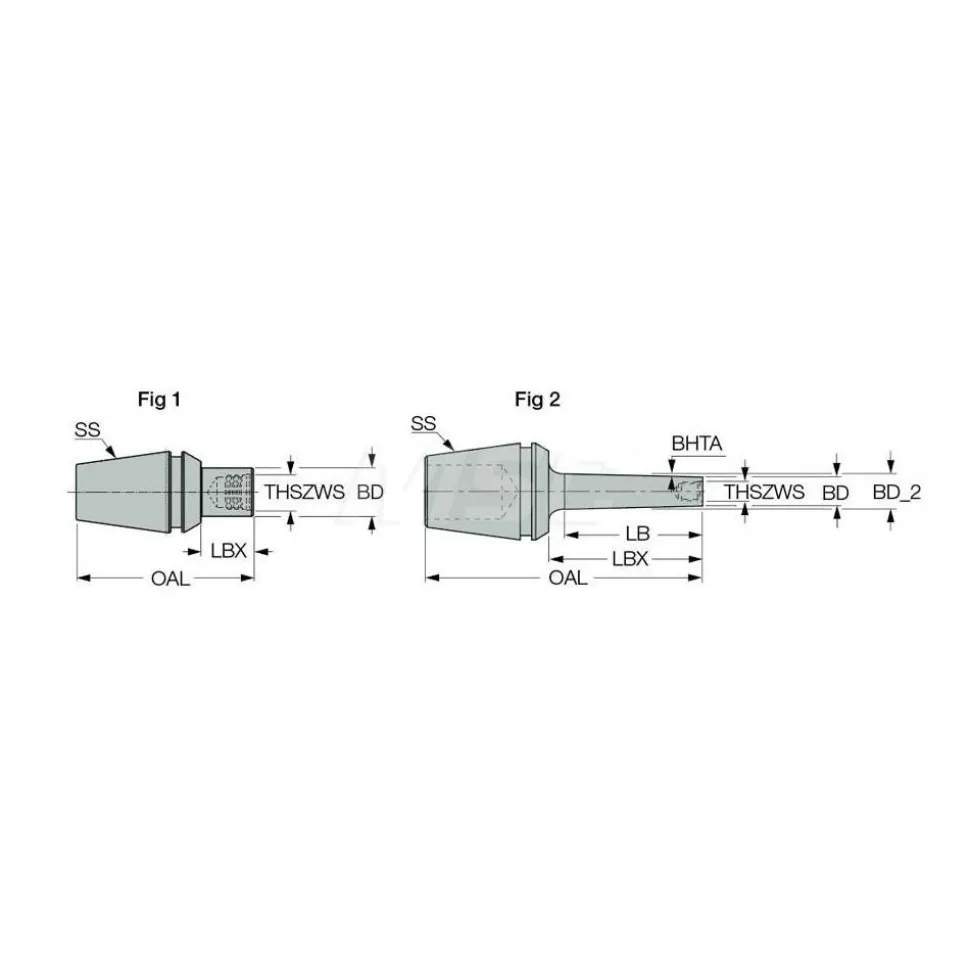

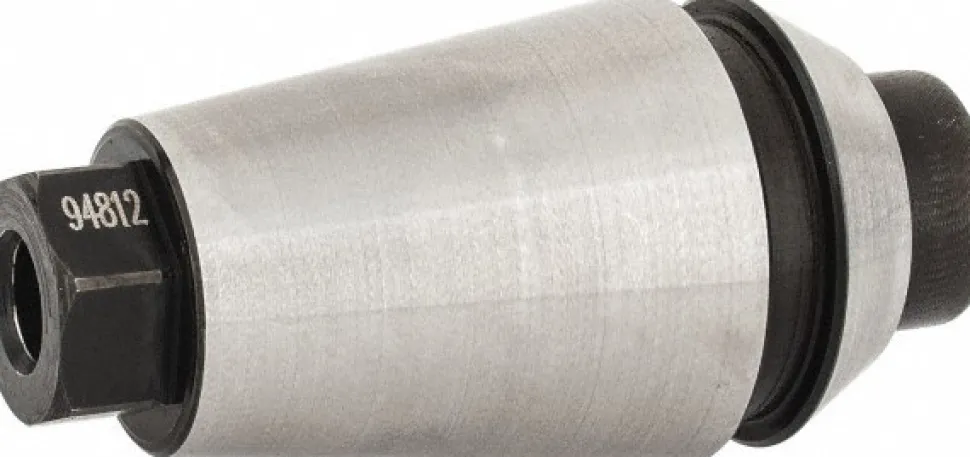

Replaceable Tip Milling Shank: Series Multimaster, 4 mm Projection
89,99 $
Specifications
| Shank Type: Collet | Shank Taper Size: ER16 |
| Neck Thread Size: T06 | Overall Length (Decimal Inch): 1.3190 |
| Overall Length (mm): 33.50 | Shank Shape: Conical |
| Tool Material: Solid Carbide | Neck Diameter (Decimal Inch): 0.3540 |
| Coolant Through: No | Toolholder Style: MM S-ER |
| Series: Multimaster | Head Length (mm): 4.00 |
| Head Length (Decimal Inch): 0.1600 | Tool Application: Milling |
| Weldon Flat: No | Effective Length (mm): 4.00 |
| Effective Length (Decimal Inch): 0.1575 | Collet Series: ER16 |
| Milling Tip Style: MM GRIT-K/P-45A; R-8 ER; ST-ER; MM HCR; T290 ELN-MM-05; MM EB; MM EC-4; MM GRIT-16K/18P; ST-ER-M; HP E90AN-MM-07 | Manufacturers Catalog Number: MM S-A-H004-ER16-T06 |
| Projection (mm): 4.00 | UNSPSC Code: 23291600 |
| Country of Origin: Israel | |
| Shank Type: Collet | |
| Shank Taper Size: ER16 | |
| Neck Thread Size: T06 | |
| Overall Length (Decimal Inch): 1.3190 | |
| Overall Length (mm): 33.50 | |
| Shank Shape: Conical | |
| Tool Material: Solid Carbide | |
| Neck Diameter (Decimal Inch): 0.3540 | |
| Coolant Through: No | |
| Toolholder Style: MM S-ER | |
| Series: Multimaster | |
| Head Length (mm): 4.00 | |
| Head Length (Decimal Inch): 0.1600 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Effective Length (mm): 4.00 | |
| Effective Length (Decimal Inch): 0.1575 | |
| Collet Series: ER16 | |
| Milling Tip Style: MM GRIT-K/P-45A; R-8 ER; ST-ER; MM HCR; T290 ELN-MM-05; MM EB; MM EC-4; MM GRIT-16K/18P; ST-ER-M; HP E90AN-MM-07 | |

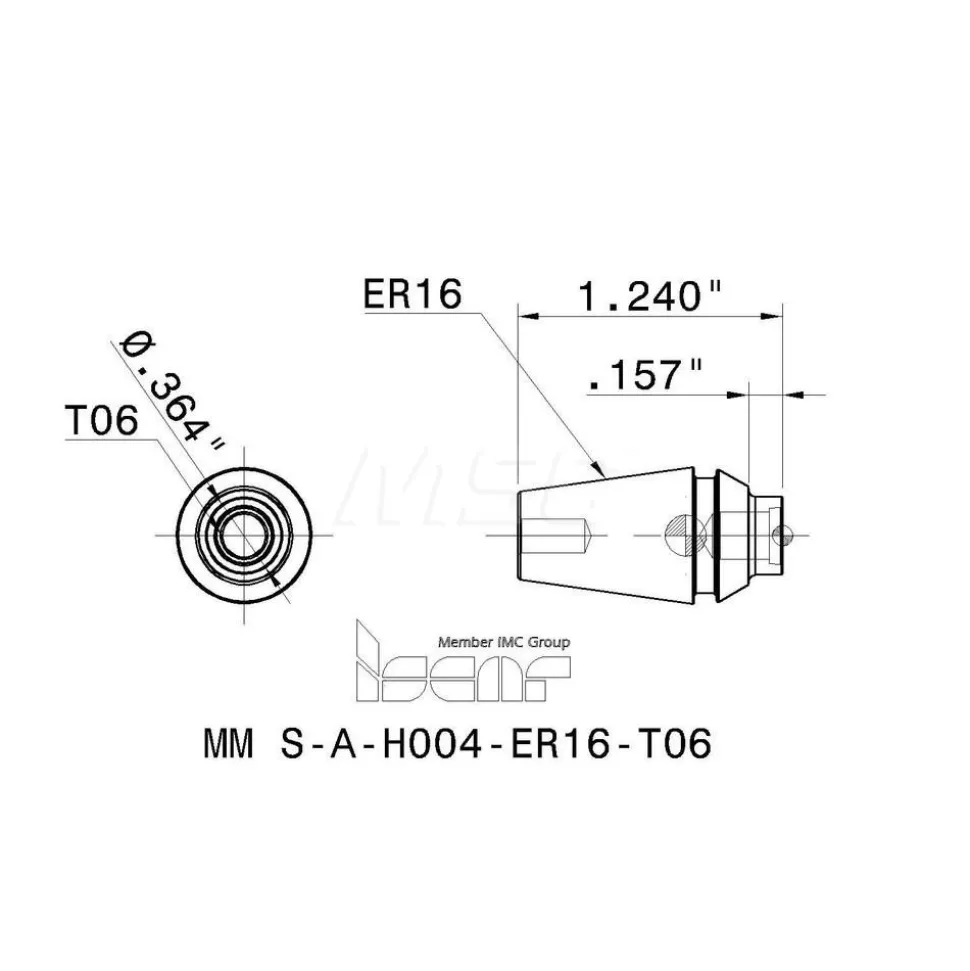

| Manufacturers Catalog Number: MM S-A-H004-ER16-T06 | |
| Projection (mm): 4.00 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Israel |
| MSC# | 89152623 |
| Mfr# | 3105827 |
| Big Book# | 702 |
