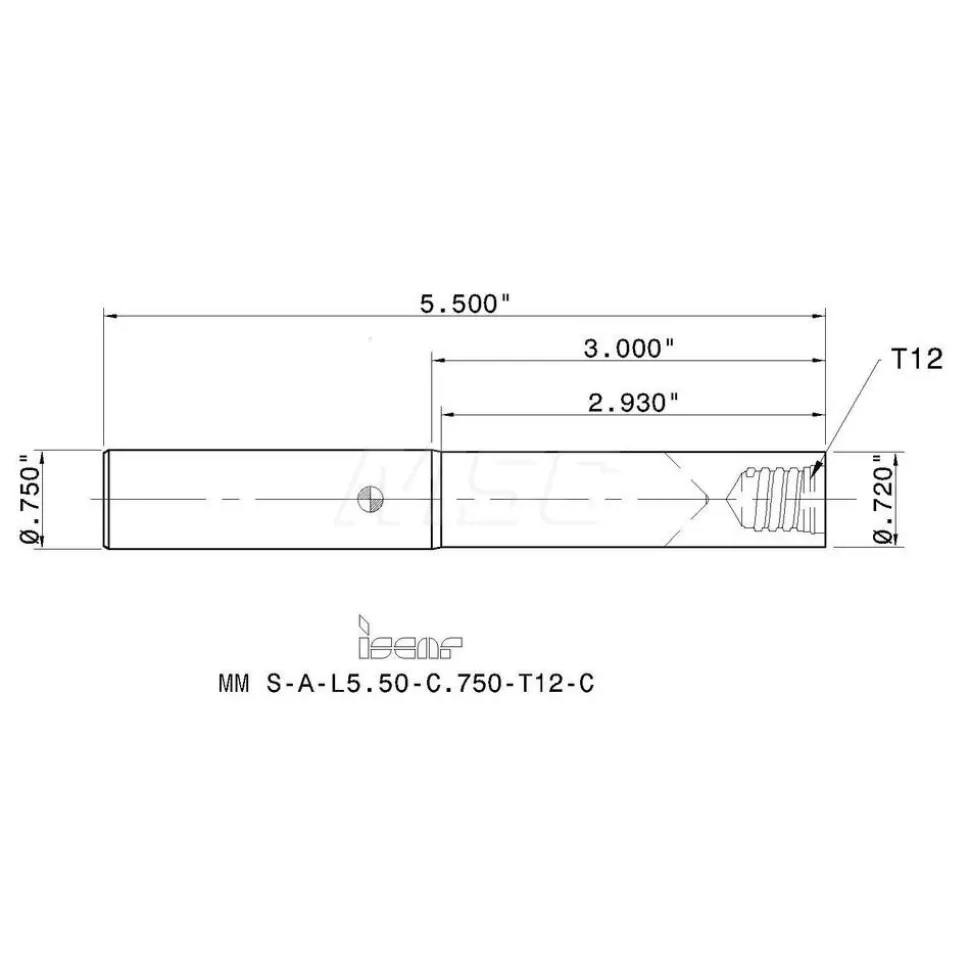

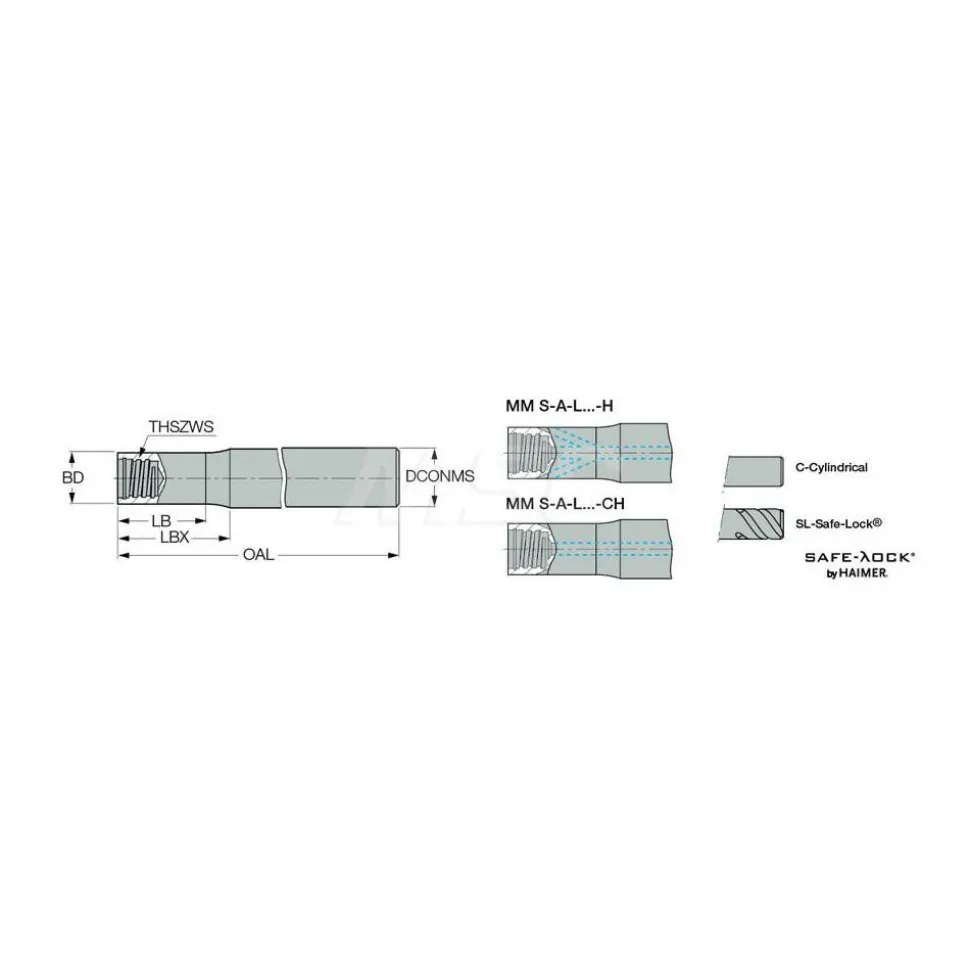

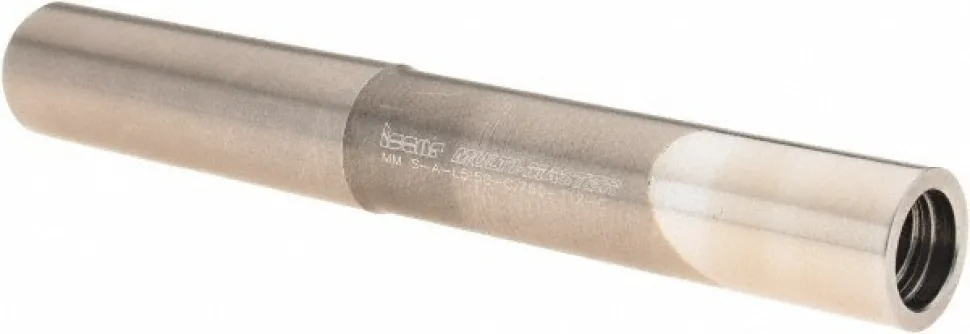

Replaceable Tip Milling Shank: Series Multimaster, 3″ Projection, 3/4″ Stepped Shank
128,99 $
Specifications
| Shank Type: Stepped | Shank Diameter (Decimal Inch): 0.7500 |
| Shank Diameter (Inch): 3/4 | Neck Thread Size: T12 |
| Overall Length (Decimal Inch): 5.5000 | Shank Shape: Straight |
| Tool Material: Solid Carbide | Neck Diameter (Decimal Inch): 0.7200 |
| Coolant Through: No | Toolholder Style: MM S-A |
| Series: Multimaster | Head Length (Decimal Inch): 3.0000 |
| Maximum Diameter (Decimal Inch): 0.7500 | Tool Application: Milling |
| Weldon Flat: No | Effective Length (Decimal Inch): 2.9300 |
| Milling Tip Style: BCM-MM; HM90 E90A-MM-10; FF EWX-MM-04; HCM-MM; T490 ELN-MM-08; HCE-MM; HP E90AN-MM-07 | Projection (Decimal Inch): 3.0000 |
| UNSPSC Code: 23291600 | Country of Origin: Israel |
| Shank Type: Stepped | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Neck Thread Size: T12 | |
| Overall Length (Decimal Inch): 5.5000 | |
| Shank Shape: Straight | |
| Tool Material: Solid Carbide | |
| Neck Diameter (Decimal Inch): 0.7200 | |
| Coolant Through: No | |
| Toolholder Style: MM S-A | |
| Series: Multimaster | |
| Head Length (Decimal Inch): 3.0000 | |
| Maximum Diameter (Decimal Inch): 0.7500 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Effective Length (Decimal Inch): 2.9300 | |
| Milling Tip Style: BCM-MM; HM90 E90A-MM-10; FF EWX-MM-04; HCM-MM; T490 ELN-MM-08; HCE-MM; HP E90AN-MM-07 | |
| Projection (Decimal Inch): 3.0000 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Israel |
| MSC# | 06154694 |
| Mfr# | 3103843 |
