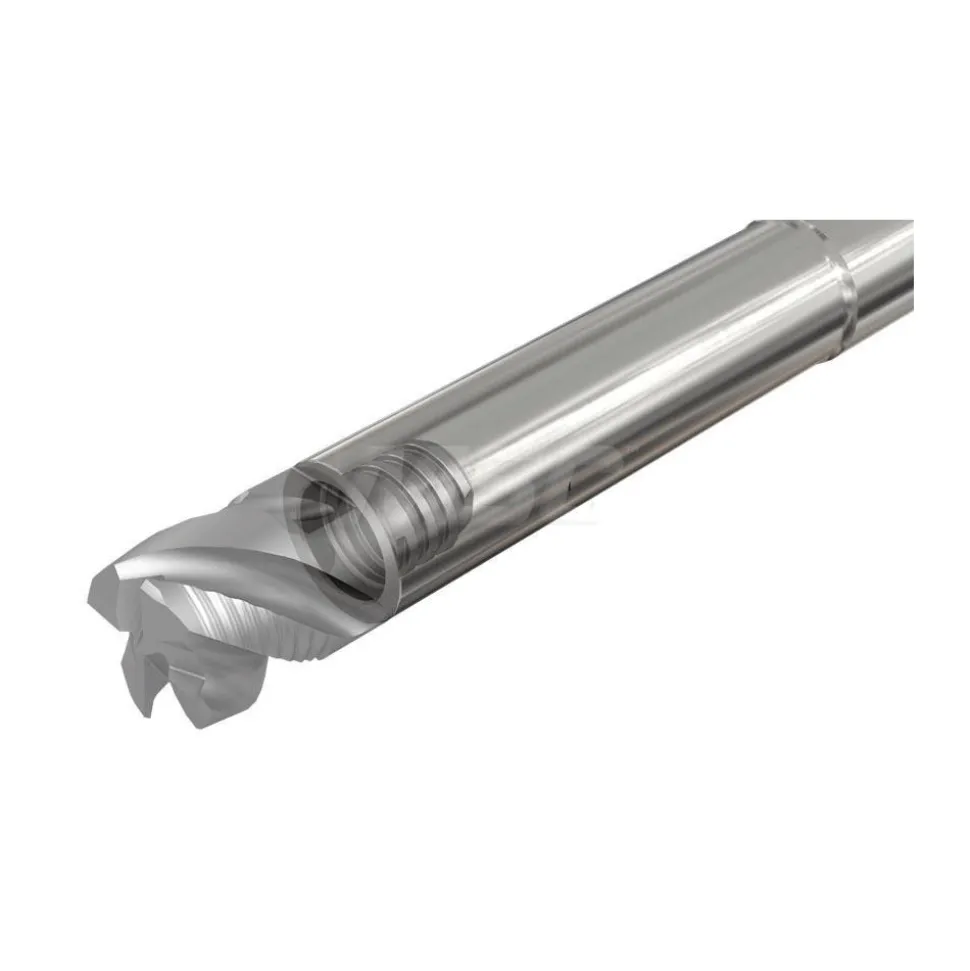

Replaceable Tip Milling Shank: Series Multimaster, 2″ Projection, 3/8″ Stepped Shank
Original price was: 460,00 $.134,99 $Current price is: 134,99 $.

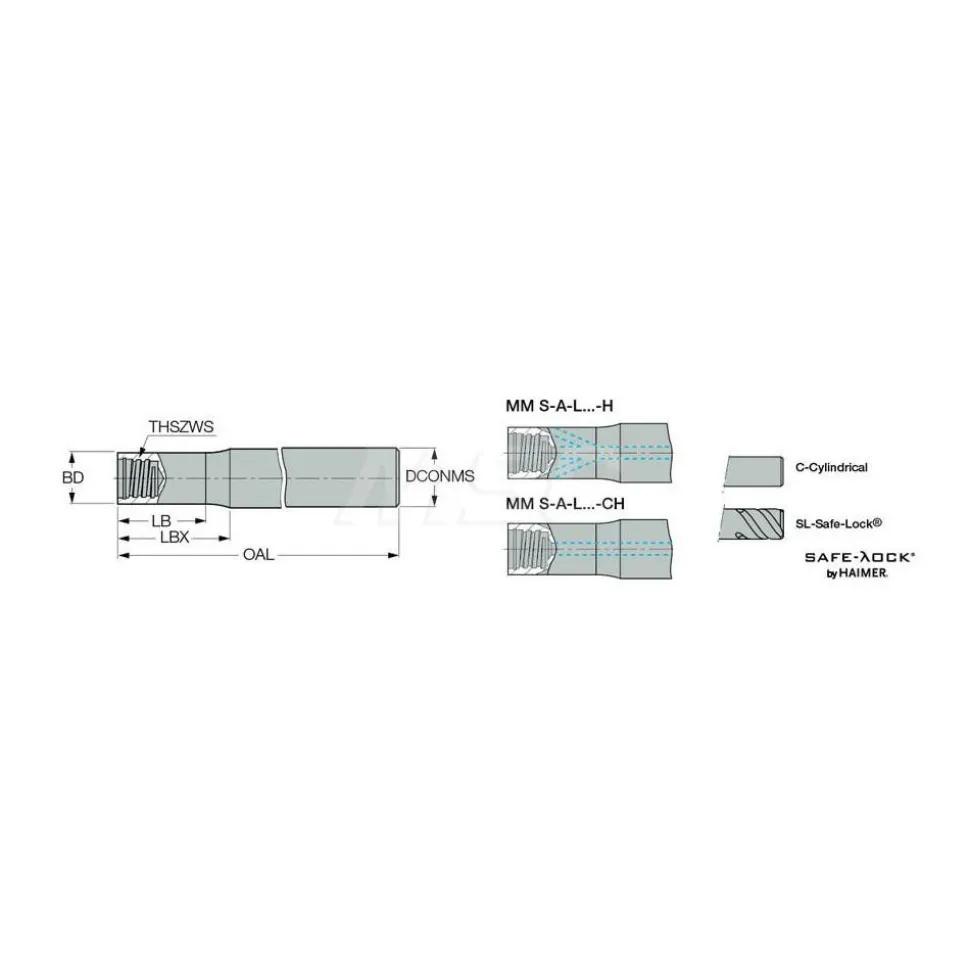

Specifications
| Shank Type: Stepped | Shank Diameter (Decimal Inch): 0.3750 |
| Shank Diameter (Inch): 3/8 | Neck Thread Size: T06 |
| Overall Length (Decimal Inch): 4.7500 | Shank Shape: Straight |
| Tool Material: Solid Carbide | Neck Diameter (Decimal Inch): 0.3640 |
| Coolant Through: No | Nose Diameter (Decimal Inch – 4 Decimals): 0.3640 |
| Toolholder Style: MM S-A | Series: Multimaster |
| Head Length (Decimal Inch): 1.9500 | Maximum Diameter (Decimal Inch): 0.3640 |
| Tool Application: Milling | Weldon Flat: No |
| Effective Length (Decimal Inch): 2.0000 | Milling Tip Style: MM ECS; MM ERA; MM ECU; MM HCR; MM EA-CF; MM EC-3; MM EC-4; MM EC-6; MM EC-H; MM GRIT-K/P-45A; MM ECD; MM HCD; MM ECF; MM HCF; MM HC; MM EC-D; MM GRIT-18K/P; MM GRIT-16K/P; MM FF; MM EFS; MM EFS-CF; MM HBR; MM HR; MM EC-CF; MM ETR; MM EFF; MM EBA; MM EDF; MM ERS; MM HDF; MM EA; MM EB |
| Projection (Decimal Inch): 2.0000 | UNSPSC Code: 23291600 |
| Country of Origin: Israel | |
| Shank Type: Stepped | |
| Shank Diameter (Decimal Inch): 0.3750 | |
| Shank Diameter (Inch): 3/8 | |
| Neck Thread Size: T06 | |
| Overall Length (Decimal Inch): 4.7500 | |
| Shank Shape: Straight | |
| Tool Material: Solid Carbide | |
| Neck Diameter (Decimal Inch): 0.3640 | |
| Coolant Through: No | |
| Nose Diameter (Decimal Inch – 4 Decimals): 0.3640 | |
| Toolholder Style: MM S-A | |
| Series: Multimaster | |
| Head Length (Decimal Inch): 1.9500 | |
| Maximum Diameter (Decimal Inch): 0.3640 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Effective Length (Decimal Inch): 2.0000 | |
| Milling Tip Style: MM ECS; MM ERA; MM ECU; MM HCR; MM EA-CF; MM EC-3; MM EC-4; MM EC-6; MM EC-H; MM GRIT-K/P-45A; MM ECD; MM HCD; MM ECF; MM HCF; MM HC; MM EC-D; MM GRIT-18K/P; MM GRIT-16K/P; MM FF; MM EFS; MM EFS-CF; MM HBR; MM HR; MM EC-CF; MM ETR; MM EFF; MM EBA; MM EDF; MM ERS; MM HDF; MM EA; MM EB | |
| Projection (Decimal Inch): 2.0000 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Israel |
| MSC# | 63106546 |
| Mfr# | 3103093 |
