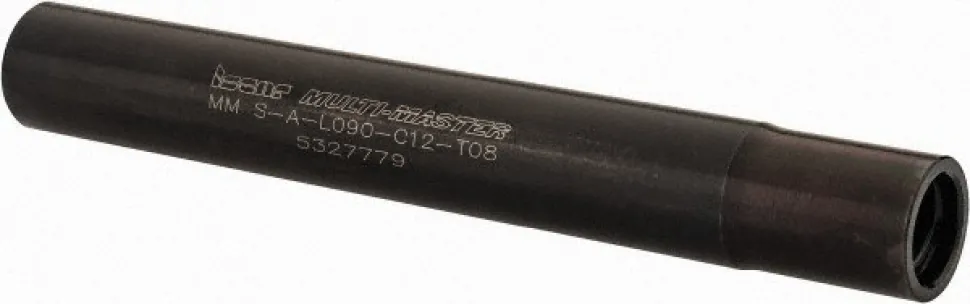

Replaceable Tip Milling Shank: Series Multimaster, 16 mm Projection, 12 mm Stepped Shank
95,99 $
Specifications
| Shank Type: Stepped | Shank Diameter (mm): 12.00 |
| Shank Diameter (Decimal Inch): 0.4724 | Neck Thread Size: T08 |
| Overall Length (Decimal Inch): 3.5433 | Overall Length (mm): 90.00 |
| Shank Shape: Straight | Tool Material: Steel |
| Neck Diameter (Decimal Inch): 0.4528 | Coolant Through: No |
| Toolholder Style: MM S-A | Series: Multimaster |
| Head Length (Decimal Inch): 0.5236 | Maximum Diameter (mm): 12.00 |
| Tool Application: Milling | Weldon Flat: No |
| Effective Length (mm): 16.00 | Effective Length (Decimal Inch): 0.6299 |
| Milling Tip Style: BCM-MM; HCM-MM; HCE-MM; HP E90AN-MM-07 | Projection (mm): 16.00 |
| UNSPSC Code: 23291600 | Country of Origin: Israel |
| Shank Type: Stepped | |
| Shank Diameter (mm): 12.00 | |
| Shank Diameter (Decimal Inch): 0.4724 | |
| Neck Thread Size: T08 | |
| Overall Length (Decimal Inch): 3.5433 | |
| Overall Length (mm): 90.00 | |
| Shank Shape: Straight | |
| Tool Material: Steel | |
| Neck Diameter (Decimal Inch): 0.4528 | |
| Coolant Through: No | |
| Toolholder Style: MM S-A | |
| Series: Multimaster | |
| Head Length (Decimal Inch): 0.5236 | |
| Maximum Diameter (mm): 12.00 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Effective Length (mm): 16.00 | |
| Effective Length (Decimal Inch): 0.6299 | |
| Milling Tip Style: BCM-MM; HCM-MM; HCE-MM; HP E90AN-MM-07 | |
| Projection (mm): 16.00 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Israel |
| MSC# | 05432802 |
| Mfr# | 3102510 |
