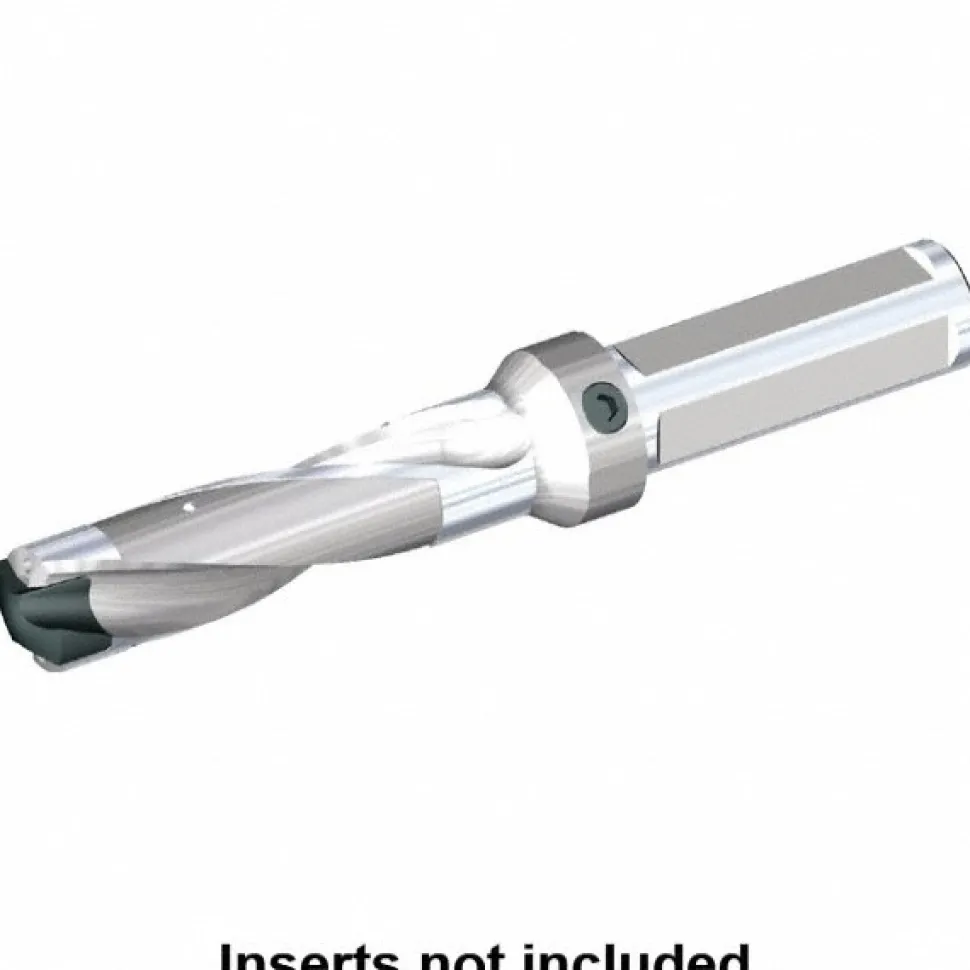

Replaceable-Tip Drill: 14.3 to 14.5 mm Dia, 42.93 mm Max Depth, 19.05 mm Weldon Flat Shank
128,99 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.5630 | Minimum Drill Diameter (mm): 14.30 |
| Maximum Drill Diameter (mm): 14.50 | Maximum Drill Diameter (Decimal Inch): 0.5709 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (mm): 42.93 |
| Maximum Drill Depth (Decimal Inch): 1.6900 | Shank Type: Weldon Flat |
| Insert Seat Size: B | Shank Diameter (mm): 19.05 |
| Compatible Insert Style: KSEM0563 | Overall Length (mm): 128.58 |
| Overall Length (Decimal Inch): 5.0622 | Series: KSEM |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: UNITED STATES | |
| Minimum Drill Diameter (Decimal Inch): 0.5630 | |
| Minimum Drill Diameter (mm): 14.30 | |
| Maximum Drill Diameter (mm): 14.50 | |
| Maximum Drill Diameter (Decimal Inch): 0.5709 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (mm): 42.93 | |
| Maximum Drill Depth (Decimal Inch): 1.6900 | |
| Shank Type: Weldon Flat | |
| Insert Seat Size: B | |
| Shank Diameter (mm): 19.05 | |
| Compatible Insert Style: KSEM0563 | |
| Overall Length (mm): 128.58 | |
| Overall Length (Decimal Inch): 5.0622 | |
| Series: KSEM | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: UNITED STATES |
| MSC# | 02735272 |
| Mfr# | 1785250 |
