Sale!

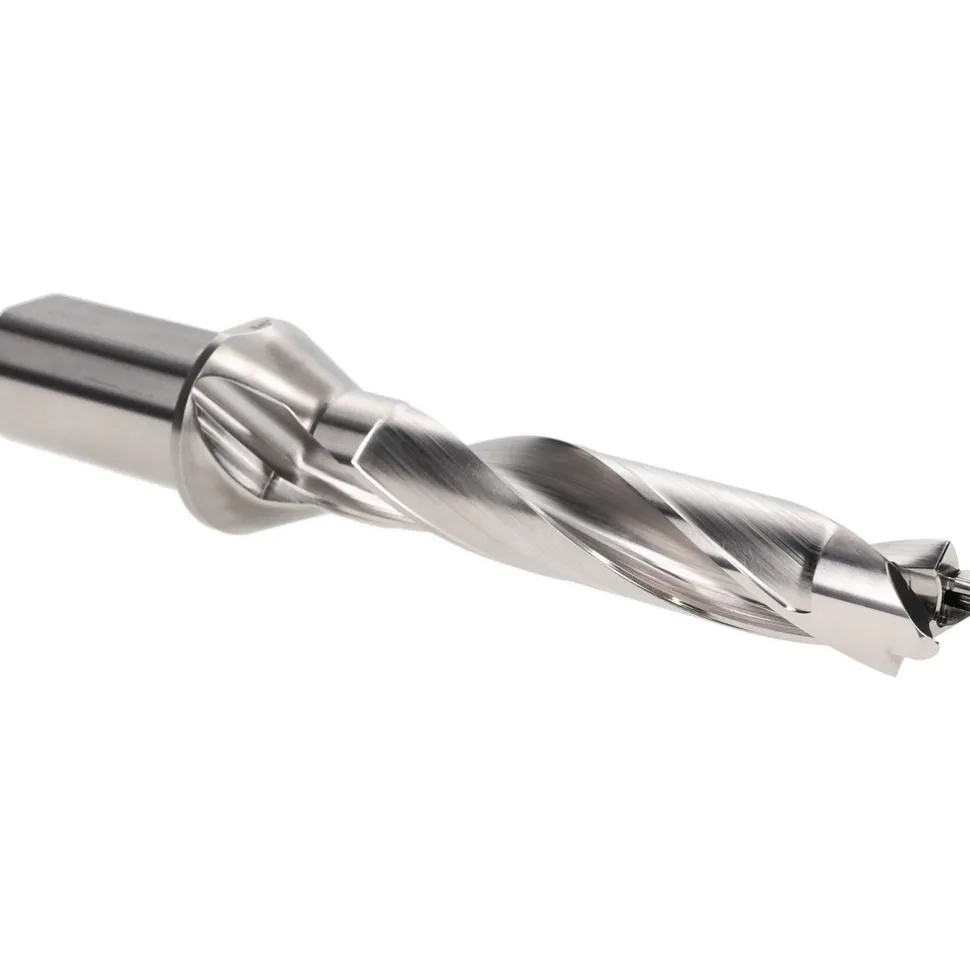

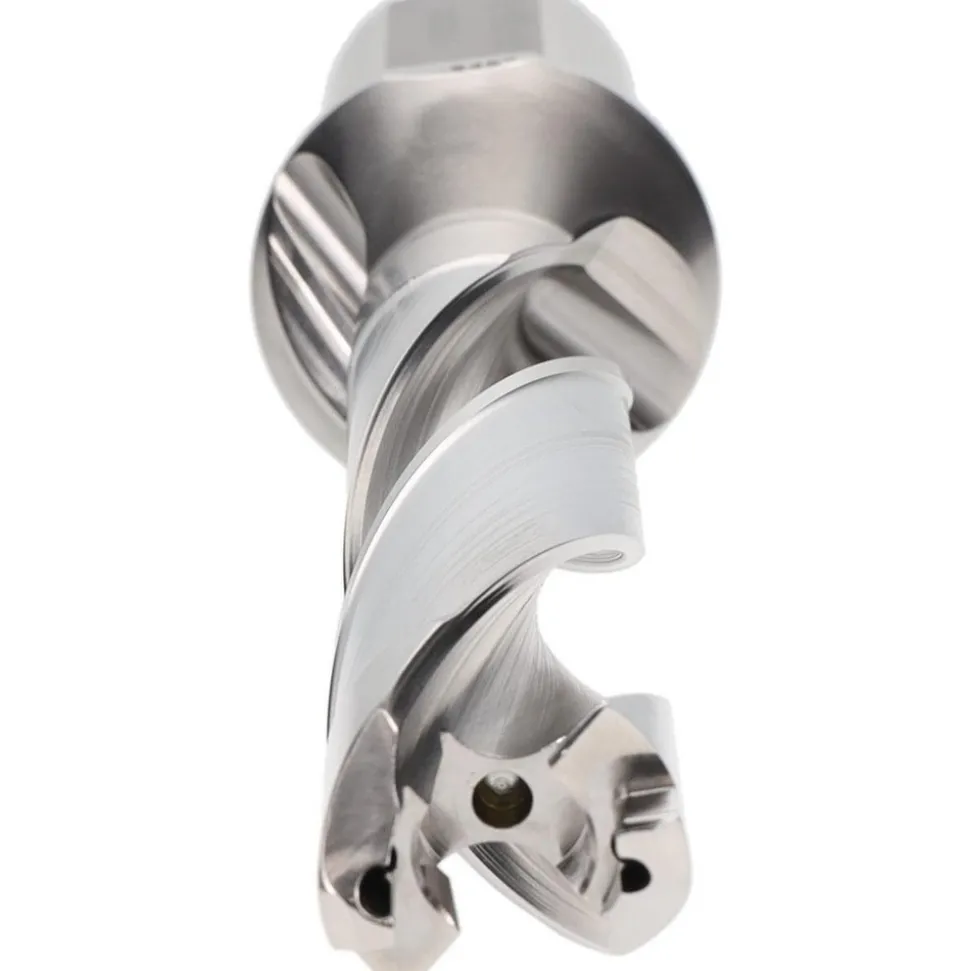

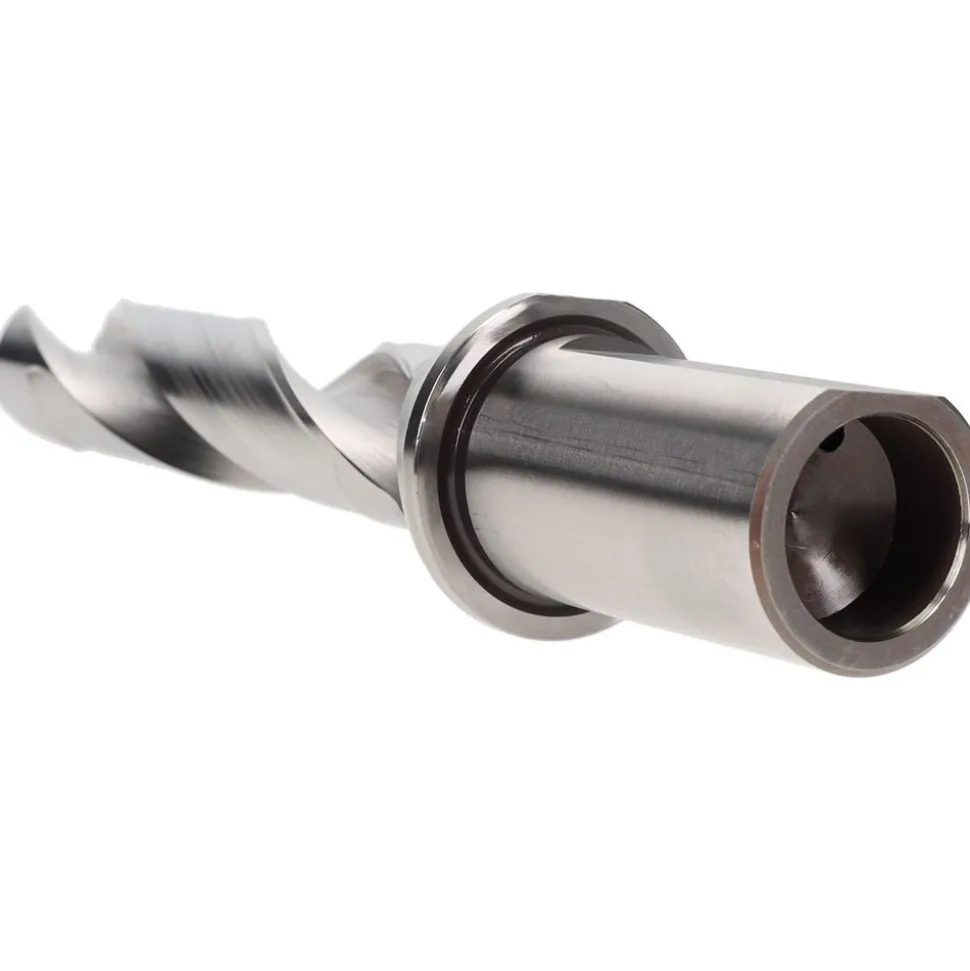

Replaceable-Tip Drill: 0.945 to 0.98″ Dia, 4.72″ Max Depth, 1-1/4″ Weldon Flat Shank
Original price was: 707,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.9450 | Maximum Drill Diameter (Decimal Inch): 0.9800 |
| Drill Depth by Diameter Ratio: 5xD | Maximum Drill Depth (Decimal Inch): 4.7200 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 1-1/4 |
| Shank Diameter (Decimal Inch): 1.2500 | Insert Seat Size: 24 |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | Overall Length (Decimal Inch): 8.5800 |
| Series: SumoCham | Toolholder Style: DCN |
| Standards: ISO 13399 | Coolant Through: Yes |
| UNSPSC Code: 23291502 | Country of Origin: Israel |
| Minimum Drill Diameter (Decimal Inch): 0.9450 | |
| Maximum Drill Diameter (Decimal Inch): 0.9800 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Maximum Drill Depth (Decimal Inch): 4.7200 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Insert Seat Size: 24 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | |
| Overall Length (Decimal Inch): 8.5800 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 89204267 |
| Mfr# | 3201743 |
