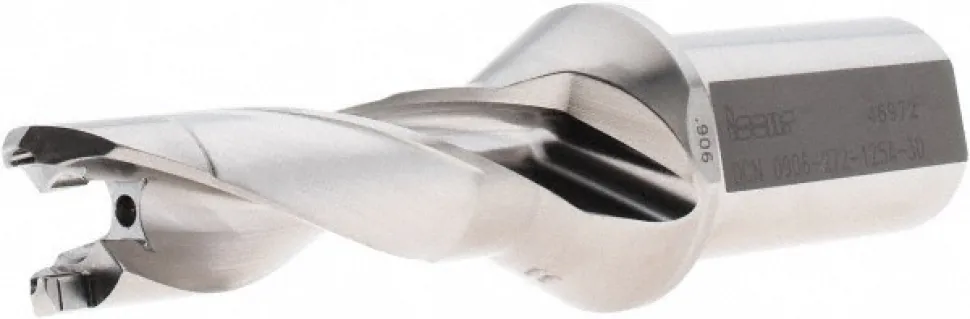

Replaceable-Tip Drill: 0.906 to 0.941" Dia, 2.72" Max Depth, 1-1/4" Weldon Flat Shank

Replaceable-Tip Drill: 0.906 to 0.941″ Dia, 2.72″ Max Depth, 1-1/4″ Weldon Flat Shank

138,89 $

SKU: SKUC8zQu4Osrw Categories: Indexable Cutting Tools, Indexable Holemaking, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Minimum Drill Diameter (Decimal Inch): 0.9060	Maximum Drill Diameter (Decimal Inch): 0.9410
Drill Depth by Diameter Ratio: 3xD	Maximum Drill Depth (Decimal Inch): 2.7200
Shank Type: Weldon Flat	Shank Diameter (Inch): 1-1/4
Shank Diameter (Decimal Inch): 1.2500	Insert Seat Size: 23
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP	Overall Length (Decimal Inch): 6.5100
Series: SumoCham	Toolholder Style: DCN
Standards: ISO 13399	Coolant Through: Yes
UNSPSC Code: 23291502	Country of Origin: Israel
Minimum Drill Diameter (Decimal Inch): 0.9060
Maximum Drill Diameter (Decimal Inch): 0.9410
Drill Depth by Diameter Ratio: 3xD
Maximum Drill Depth (Decimal Inch): 2.7200
Shank Type: Weldon Flat
Shank Diameter (Inch): 1-1/4
Shank Diameter (Decimal Inch): 1.2500
Insert Seat Size: 23
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP
Overall Length (Decimal Inch): 6.5100
Series: SumoCham
Toolholder Style: DCN
Standards: ISO 13399
Coolant Through: Yes
UNSPSC Code: 23291502
Country of Origin: Israel
