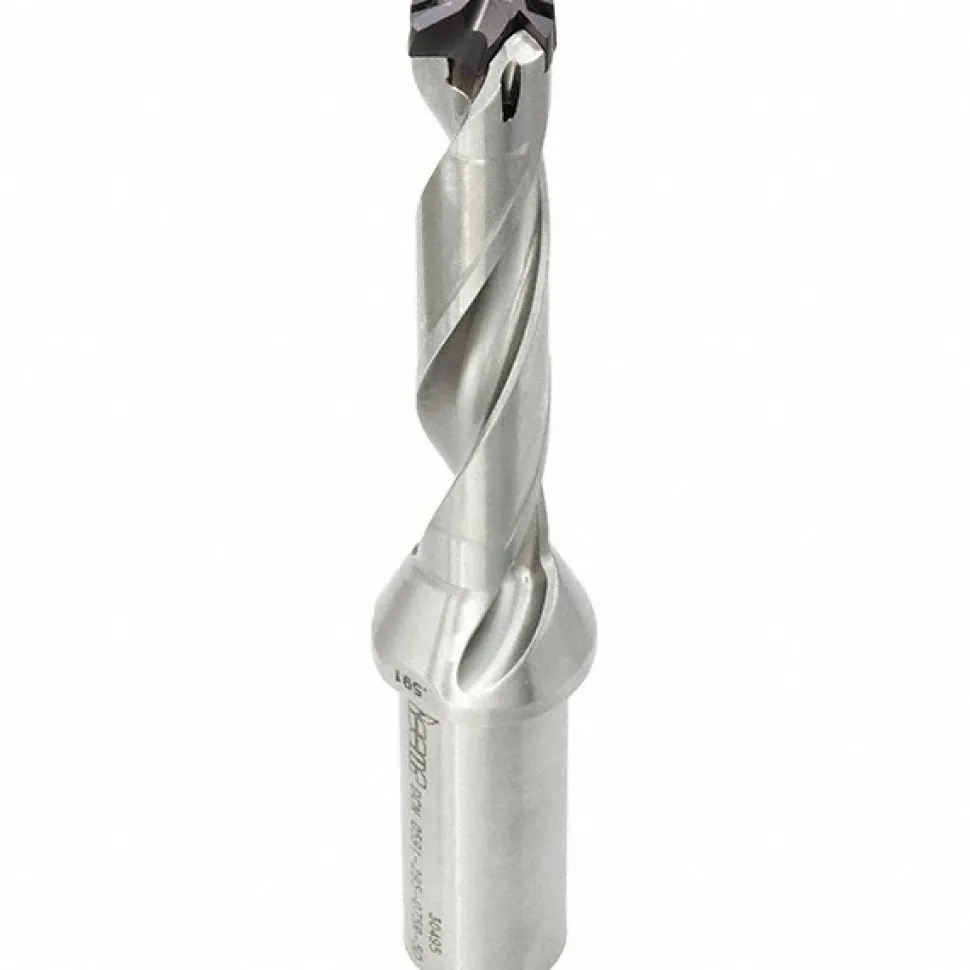

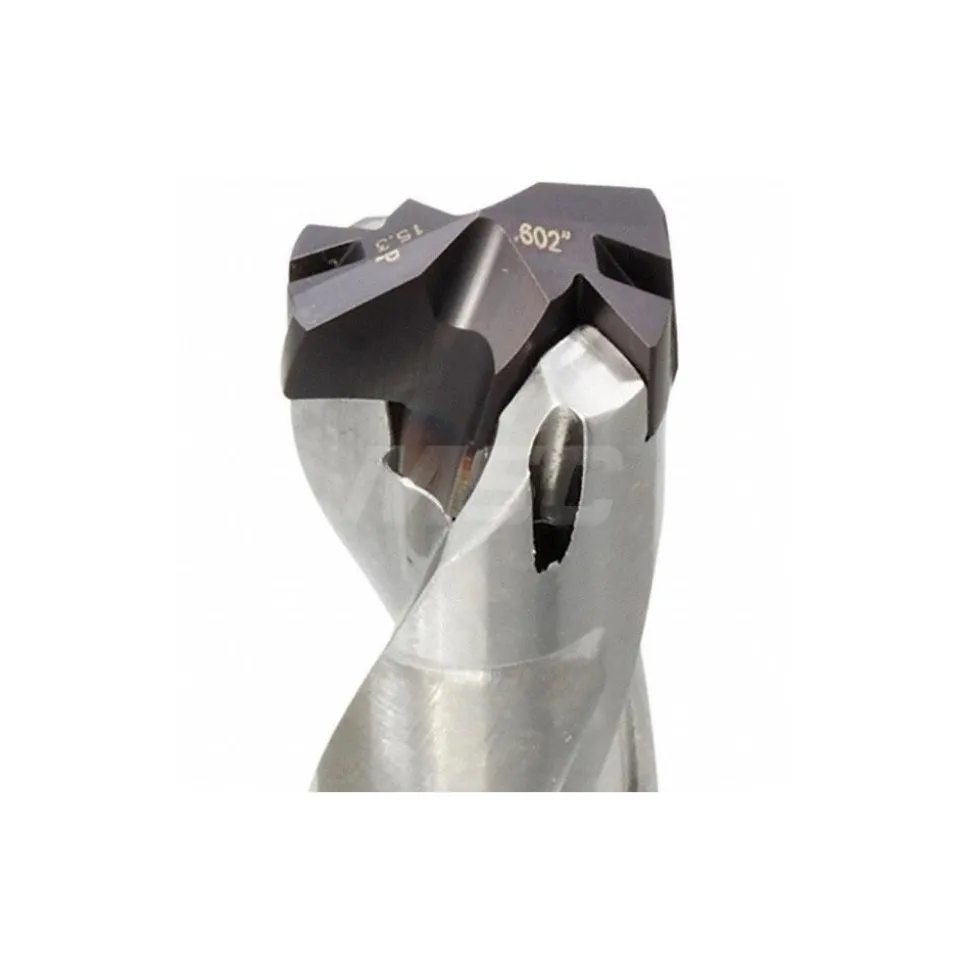

Replaceable-Tip Drill: 0.709 to 0.744" Dia, 5.67" Max Depth, 1" Weldon Flat Shank

Replaceable-Tip Drill: 0.709 to 0.744″ Dia, 5.67″ Max Depth, 1″ Weldon Flat Shank

138,89 $

SKU: SKUpxG74pbPBo Categories: Indexable Cutting Tools, Indexable Holemaking, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Minimum Drill Diameter (Decimal Inch): 0.7090	Maximum Drill Diameter (Decimal Inch): 0.7440
Drill Depth by Diameter Ratio: 8xD	Maximum Drill Depth (Decimal Inch): 5.6700
Shank Type: Weldon Flat	Shank Diameter (Inch): 1
Shank Diameter (Decimal Inch): 1.0000	Insert Seat Size: 18
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP	Overall Length (Decimal Inch): 8.9900
Series: SumoCham	Toolholder Style: DCN
Standards: ISO 13399	Coolant Through: Yes
UNSPSC Code: 23291502	Country of Origin: Israel
Minimum Drill Diameter (Decimal Inch): 0.7090
Maximum Drill Diameter (Decimal Inch): 0.7440
Drill Depth by Diameter Ratio: 8xD
Maximum Drill Depth (Decimal Inch): 5.6700
Shank Type: Weldon Flat
Shank Diameter (Inch): 1
Shank Diameter (Decimal Inch): 1.0000
Insert Seat Size: 18
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP
Overall Length (Decimal Inch): 8.9900
Series: SumoCham
Toolholder Style: DCN
Standards: ISO 13399
Coolant Through: Yes
UNSPSC Code: 23291502
Country of Origin: Israel
