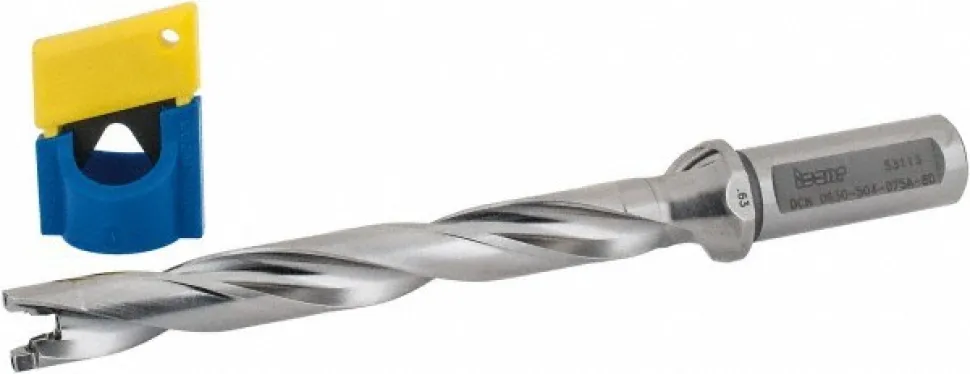

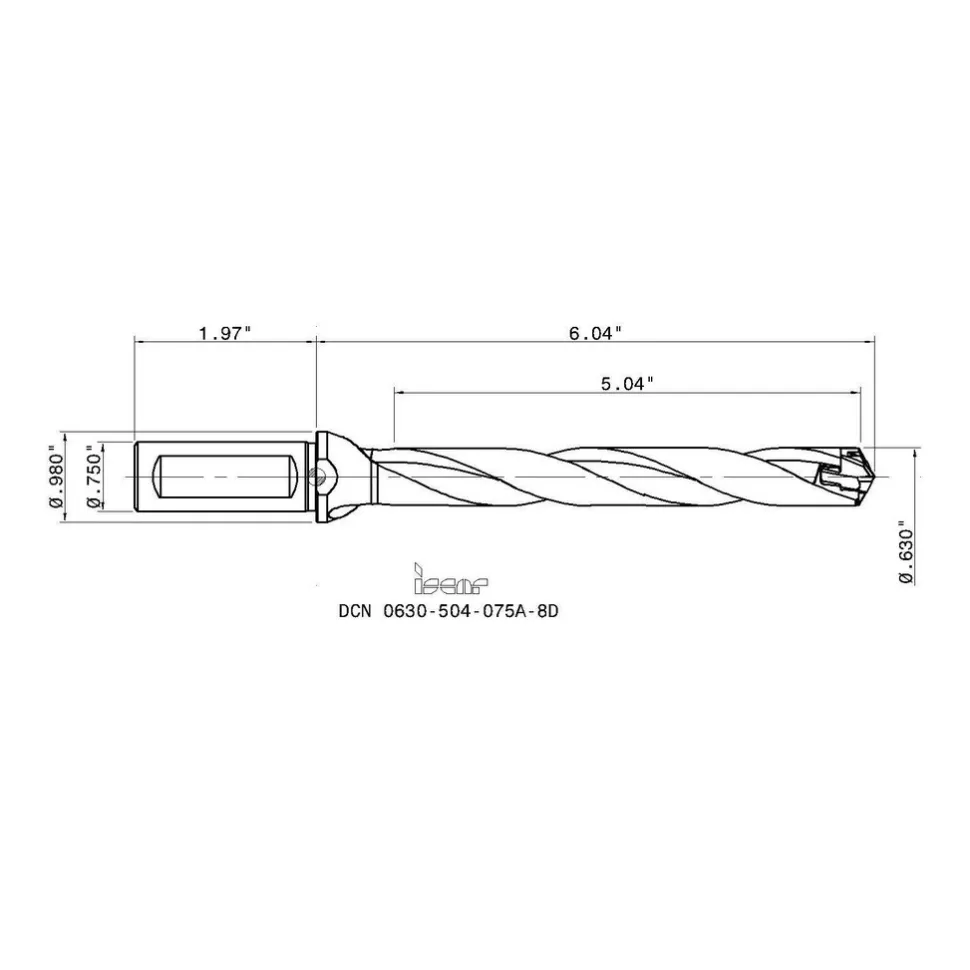

Replaceable-Tip Drill: 0.63 to 0.665" Dia, 5.04" Max Depth, 3/4" Weldon Flat Shank

Replaceable-Tip Drill: 0.63 to 0.665″ Dia, 5.04″ Max Depth, 3/4″ Weldon Flat Shank

Original price was: 488,00 $.Current price is: 120,89 $.

SKU: SKUREni9mcGWB Categories: Indexable Cutting Tools, Indexable Holemaking, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Minimum Drill Diameter (Decimal Inch): 0.6300	Maximum Drill Diameter (Decimal Inch): 0.6650
Drill Depth by Diameter Ratio: 8xD	Maximum Drill Depth (Decimal Inch): 5.0400
Shank Type: Weldon Flat	Shank Diameter (Inch): 3/4
Shank Diameter (Decimal Inch): 0.7500	Insert Seat Size: 16
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP	Overall Length (Decimal Inch): 8.0100
Series: SumoCham	Toolholder Style: DCN
Standards: ISO 13399	Coolant Through: Yes
UNSPSC Code: 23291502	Country of Origin: Israel
Minimum Drill Diameter (Decimal Inch): 0.6300
Maximum Drill Diameter (Decimal Inch): 0.6650
Drill Depth by Diameter Ratio: 8xD
Maximum Drill Depth (Decimal Inch): 5.0400
Shank Type: Weldon Flat
Shank Diameter (Inch): 3/4
Shank Diameter (Decimal Inch): 0.7500
Insert Seat Size: 16
Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP
Overall Length (Decimal Inch): 8.0100
Series: SumoCham
Toolholder Style: DCN
Standards: ISO 13399
Coolant Through: Yes
UNSPSC Code: 23291502
Country of Origin: Israel
